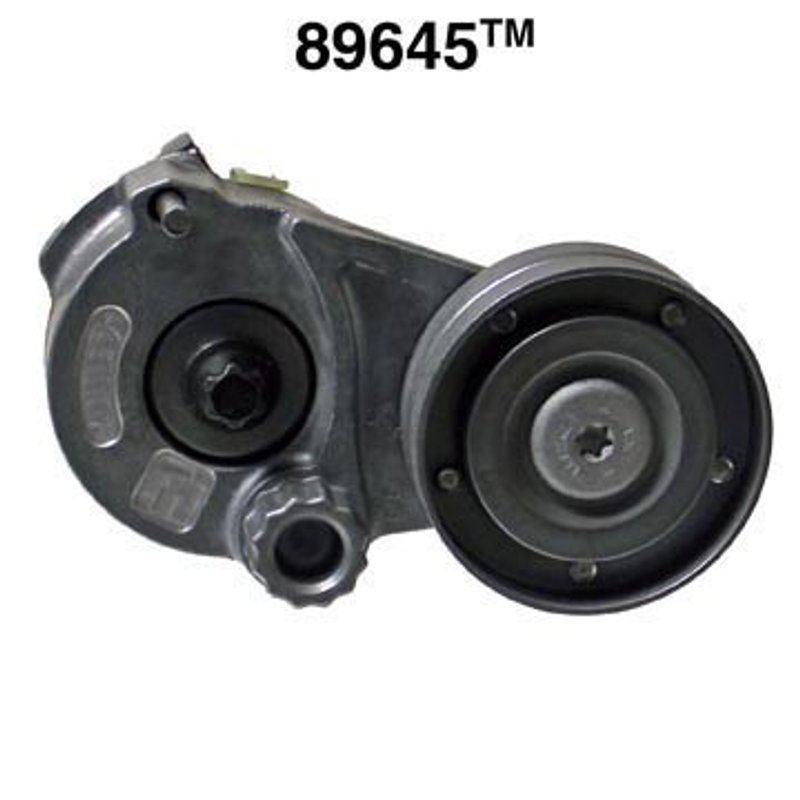

Dayco 89645 Accessory Drive Belt Tensioner Assembly

Overview of Dayco Accessory Drive Belt Tensioner Assembly 89645

The Dayco 89645 accessory drive belt tensioner assembly is designed for reliable serpentine belt tensioning in select Chevrolet, Pontiac, Saturn, and Suzuki vehicles. This automatic tensioner ensures consistent belt tension and smooth operation for accessory drive systems.

• Serpentine belt type compatible
• Clockwise rotation direction
• Single pulley design with 63 mm diameter
• Pulley width of 21.6 mm with flat surface
• Automatic tensioner type for maintenance-free operation

Technical Details and Specifications

The Dayco 89645 tensioner assembly features a single pulley with a 63 mm diameter and a 21.6 mm wide flat pulley surface, optimized for serpentine belt systems. Its clockwise rotation direction matches the accessory drive requirements of vehicles such as the Chevrolet Cruze, Pontiac G3 Wave, Saturn Astra, and Suzuki Swift+. The automatic tensioner design maintains proper belt tension without manual adjustment, reducing wear and improving belt life.

Compatible Vehicles and Applications

This accessory drive belt tensioner assembly is compatible with the following makes and models: Chevrolet Astra, Aveo, Aveo5, Cruze, and Cruze Limited; Pontiac G3 and G3 Wave; Saturn Astra; and Suzuki Swift+. It is specifically engineered to meet the accessory drive system demands of these vehicles, ensuring proper fit and function.

Common Issues Addressed by the Dayco 89645 Tensioner

• Eliminates belt slippage caused by improper tension
• Prevents premature serpentine belt wear
• Reduces noise from loose or worn tensioners
• Maintains consistent accessory drive performance
• Minimizes risk of accessory component failure due to belt issues

Installation Notes and Tips

When installing the Dayco 89645 tensioner assembly, ensure the serpentine belt is properly routed according to the vehicle’s belt diagram. The clockwise rotation direction must be observed to avoid misalignment. Use appropriate tools to relieve tension on the old belt tensioner before removal. Verify pulley alignment and belt tension after installation to ensure optimal performance.

Quality Assurance and Warranty Information

Dayco manufactures the 89645 tensioner assembly to meet OEM specifications for durability and performance. This part undergoes rigorous quality control to ensure reliable operation in the specified Chevrolet, Pontiac, Saturn, and Suzuki models. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
