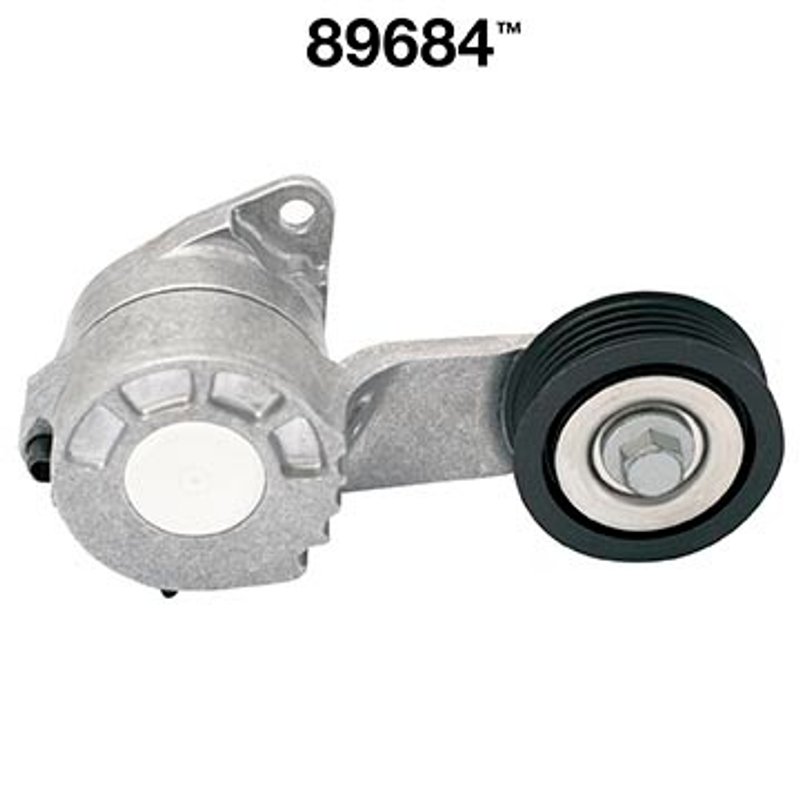

Dayco 89684 Accessory Drive Belt Tensioner Assembly

Overview of Dayco Accessory Drive Belt Tensioner Assembly

The Dayco 89684 accessory drive belt tensioner assembly is designed specifically for the Scion iQ. This automatic tensioner supports serpentine belt systems, ensuring proper belt tension and smooth operation of your vehicle's accessory drive components.

• Compatible with Scion iQ models
• Automatic tensioner type for consistent belt tension
• Counter clockwise direction operation
• Single pulley design with a 60mm diameter
• Five-groove pulley width of 22mm for serpentine belts
• Pulley without flat surface for optimal belt grip

Technical Details and Specifications

The Dayco 89684 tensioner assembly features a single pulley with a diameter of 60 millimeters and a width of 22 millimeters, designed to accommodate serpentine belts with five grooves. The pulley operates in a counter clockwise direction and does not have a flat surface, which helps maintain proper belt alignment and grip. This automatic tensioner adjusts tension dynamically, reducing the need for manual adjustments and helping to extend belt life. The design is tailored to the accessory drive belt system of the Scion iQ, ensuring compatibility and reliable performance.

Application and Problem Resolution

This accessory drive belt tensioner assembly is used to maintain the correct tension on the serpentine belt in the Scion iQ. Proper tension is critical for the efficient operation of engine accessories such as the alternator, power steering pump, and air conditioning compressor.

• Prevents belt slippage and squealing noises
• Reduces premature belt wear and damage
• Maintains consistent accessory drive performance
• Eliminates the need for frequent manual belt adjustments
• Helps avoid engine overheating caused by belt failure

Installation Notes and Tips

When installing the Dayco 89684 tensioner assembly on a Scion iQ, ensure the serpentine belt is properly routed according to the vehicle’s belt diagram. The tensioner pulley should rotate counter clockwise during installation and operation. Verify that the belt grooves align correctly with the five-groove pulley to prevent misalignment or premature wear. It is recommended to inspect the belt and other drive components for wear during installation and replace if necessary.

Quality Assurance and Warranty

Dayco manufactures the 89684 accessory drive belt tensioner assembly to meet or exceed OEM specifications for the Scion iQ. The automatic tensioner is engineered for durability and consistent performance under normal operating conditions. While specific warranty details may vary, Dayco products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
