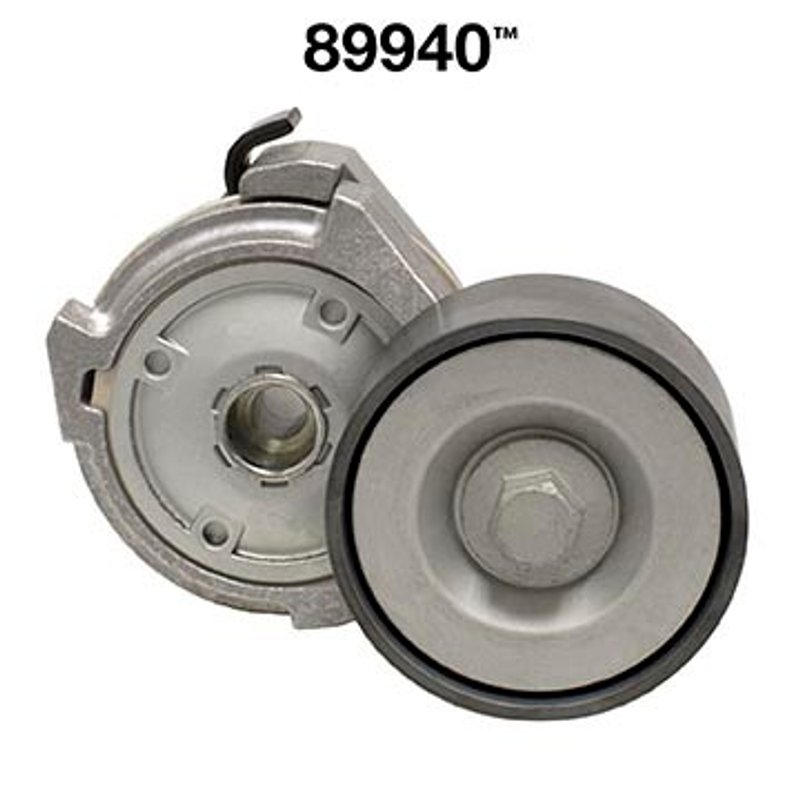

Dayco 89940 Accessory Drive Belt Tensioner Assembly

Dayco 89940 Accessory Drive Belt Tensioner Assembly

The Dayco 89940 accessory drive belt tensioner assembly is an automatic serpentine belt tensioner built for accessory drive belt system service. It uses a single flat pulley with a 74 mm diameter and 34 mm width, and it operates in a counter clockwise direction for the specified application.

Key Features

• Automatic accessory drive belt tensioner assembly
• Serpentine belt type
• Counter clockwise rotation
• Single pulley design
• 74 mm pulley diameter
• 34 mm pulley width with flat pulley surface
• Dayco 89940 part number for ordering and cross-reference

Product Details

This Dayco accessory drive belt tensioner assembly is built for vehicles that use a serpentine belt routing with automatic belt tension control. The pulley specification, rotation direction, and flat pulley profile are important for proper belt tracking and accessory drive operation. When replacing a worn tensioner on a Honda Civic or similar application, matching the pulley diameter, width, and rotation direction is essential for correct installation and belt alignment. Dayco 89940 is identified by part number 89940 and is intended for the exact accessory drive configuration listed by the vehicle application.

What It Helps Address

• Belt squeal caused by weak or inconsistent tension
• Serpentine belt flutter or vibration
• Uneven belt tracking across the accessory drive system
• Noise from a worn tensioner pulley or internal spring mechanism
• Accessory drive belt slippage under engine load

Installation Notes and Tips

Verify the belt routing, pulley diameter, pulley width, and counter clockwise rotation before installation. Compare the existing tensioner assembly to Dayco 89940 and confirm the serpentine belt path matches the vehicle’s accessory drive layout. For Honda Civic applications, check the mounting position and belt alignment carefully after installation, then inspect the belt for wear before returning the vehicle to service.

Quality Assurance

Dayco is a recognized name in accessory drive components, and this tensioner assembly is specified with clear dimensional and directional details to support accurate parts selection. Use the part number 89940 to confirm the correct tensioner for the intended vehicle application.
