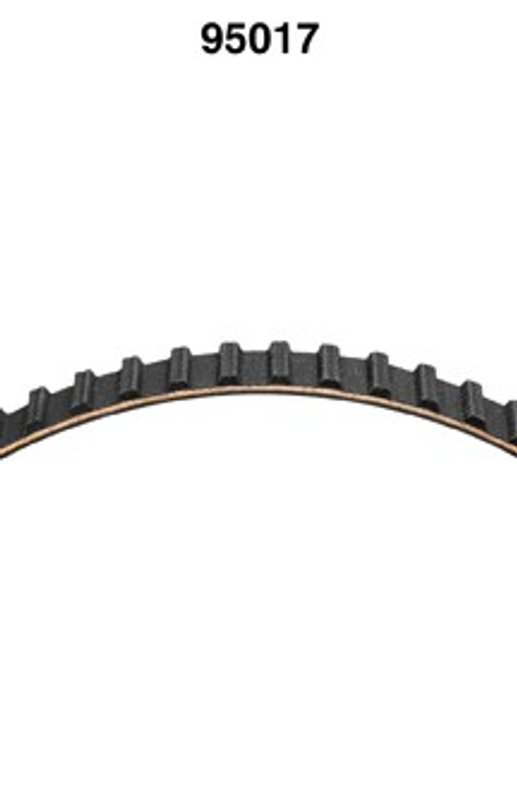

Dayco 95017 Engine Timing Belt - Camshaft
OE Quality 60-Day Returns
Dayco
 Timing Belt

Dayco 95017 Engine Timing Belt - Camshaft

Brand Dayco 95017
Position Camshaft
Material Chloroprene
Timing Marks No
Top Width 0.75
Top Width 19
Color Black
2057 Yes
Construction Std temp and load
Effective Length 1153
Effective Length 45.40
Number of Teeth 121
Tooth Pitch .37500
Tooth Pitch 9.525
Tooth Profile Square tooth
Product line Timing Belt
Fits Audi, Dodge, Plymouth, Porsche, and Volkswagen · 95 vehicles

Timing belt. Square-tooth design with 121 teeth for precise engine timing.

Chloroprene construction. Built for standard temperature and load conditions.

No timing marks. Clean, straightforward belt design for simple installation.

Cross-references ACDelco TB017, AMC 3250141 and Armormark TB-017 for the same application. See all 49.

$21.36Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $21.36
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Belt options

Dayco 95017 Timing Belt for Volkswagen and Audi

The Dayco 95017 timing belt is an engine timing belt for camshaft applications in select Volkswagen and Audi vehicles. Built with chloroprene and a square-tooth profile, it is specified for standard temperature and load service and measures 19 mm wide with 121 teeth.

Dayco Timing Belt products are engineered for precise camshaft synchronization in older import engines, including Volkswagen Golf, Jetta, Cabriolet, Fox, Passat, Corrado, Quantum, Rabbit Pickup, and Audi 80, 90, and 4000 applications. The Dayco 95017 is a direct-fit timing belt reference for maintenance on vehicles that call for a 45.40-inch effective length and 9.525 mm tooth pitch.

Key Features

  • Part number: 95017
  • Engine timing belt for camshaft drive applications
  • Chloroprene construction with black finish
  • Standard temperature and load construction
  • 19 mm top width and 121 square teeth
  • Effective length: 1153 mm / 45.40 in
  • Tooth pitch: 9.525 mm / .375 in
  • No timing marks

Detailed Description

This Dayco timing belt is built for select Volkswagen and Audi engines that use a camshaft-driven timing system. The square-tooth design, 121-tooth count, and 9.525 mm pitch support accurate belt engagement, while the chloroprene material is used for durable everyday service in standard operating conditions. If you are replacing a worn timing belt on a Volkswagen Golf, Jetta, or Audi 80/90 platform, Dayco 95017 matches the listed dimensions and application data for those engines.

This part cross-references Gates 6404 and ACDelco TB017 for the same application.

What It Helps Address

  • Cracked, glazed, or worn timing belt material
  • Noise from a belt that no longer tracks correctly
  • Loss of camshaft synchronization caused by belt wear
  • Scheduled timing belt service on Volkswagen and Audi engines
  • Replacement needs on older import vehicles with 60,000-mile service intervals

Installation Notes and Tips

  • Verify belt length, tooth count, and pitch against the original belt before installation.
  • Inspect tensioners, idlers, and related timing components during service.
  • Follow the vehicle service manual for timing alignment and tension specifications.
  • Use the listed fitment data for confirmation on Volkswagen Golf, Jetta, Cabriolet, Fox, Passat, Corrado, Quantum, Rabbit Pickup, and Audi 80, 90, 4000 applications.
  • Because this belt has no timing marks, set engine timing using the proper service procedure.

Quality Assurance

Dayco timing belts are manufactured to meet the dimensional and material requirements listed for the application. Part number 95017 is cataloged for confirmed fitment across 1977-1998 Volkswagen and Audi camshaft applications, including Volkswagen Golf and Jetta platforms.

Related reading

This part fits 95 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
1998VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1997VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1996VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1995VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1995VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1994VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1994VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1993VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1993VolkswagenFox———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1993VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1993VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1993VolkswagenPassat—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992VolkswagenCorrado—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992VolkswagenFox———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992VolkswagenPassat—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1991VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1991VolkswagenCorrado———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1991VolkswagenFox———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1991VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1991VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1991VolkswagenPassat—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1990Audi80———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1990VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1990VolkswagenCorrado———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1990VolkswagenFox———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1990VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1990VolkswagenGolf—1.8LL4CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1990VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1989Audi80———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1989VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1989VolkswagenFox———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1989VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1989VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988Audi80———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988Audi90—2.0LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988VolkswagenFox———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988VolkswagenJettaGL1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1988VolkswagenJettaCarat1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1987Audi4000———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1987VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1987VolkswagenFox———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1987VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1987VolkswagenGolf—1.8LL4CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1987VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1986Audi4000—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1986VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1986VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1986VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1985Audi4000—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1985VolkswagenCabriolet———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1985VolkswagenGolf—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1985VolkswagenGolf—1.8LL4CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1985VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1985VolkswagenQuantum—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1984Audi4000—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1984VolkswagenJetta—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1984VolkswagenJetta—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1984VolkswagenQuantum—1.8LL4CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1984VolkswagenQuantum—1.8LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1984VolkswagenRabbit Convertible———CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1983Audi4000—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1983DodgeCharger—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1983PlymouthTurismo—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1983VolkswagenJetta—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1983VolkswagenQuantum—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1983VolkswagenRabbit Convertible———CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1983VolkswagenRabbit Pickup—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1982Audi4000—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1982PlymouthTC3—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1982Porsche924———CamshaftRecommended Replacement 45,000 miles, Normal Driving Conditions; Timing Belt
1982VolkswagenJetta—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1982VolkswagenQuantum—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1982VolkswagenRabbit Convertible———CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1982VolkswagenRabbit Pickup—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1981Audi4000—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1981PlymouthTC3—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1981Porsche924———CamshaftRecommended Replacement 45,000 miles, Normal Driving Conditions; Timing Belt
1981VolkswagenJetta—1.7LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1981VolkswagenRabbit Convertible———CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1981VolkswagenRabbit Pickup—1.7LL4CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1980Audi4000—1.6LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1980PlymouthTC3———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1980Porsche924———CamshaftRecommended Replacement 45,000 miles, Normal Driving Conditions; Timing Belt
1980VolkswagenJetta———CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1980VolkswagenRabbit Convertible———CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1980VolkswagenRabbit Pickup—1.6LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1979Porsche924———CamshaftRecommended Replacement 45,000 miles, Normal Driving Conditions; Timing Belt
1978Porsche924———CamshaftRecommended Replacement 45,000 miles, Normal Driving Conditions; Timing Belt
1977Porsche924———CamshaftRecommended Replacement 45,000 miles, Normal Driving Conditions; Timing Belt
Directly replaces or cross-references 49 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — TB017AMC — 3250141Armormark — TB-017Atlas — 689904Atlas — T-17AutoZone — T017AutoZone — TB404Bando — 121ZA19BAP Geon — 54-72001Beck/Arnley — 026-0176BorgWarner — TB017Bosch — 9144161121CARQUEST — T017Chief — TB404Chrysler — 05240346Chrysler — 5240346Cloyes — B017Cloyes — C017Conoco — TB404Continental-ContiTech — TB017Duralast — 95017Dynagear — LB-17Dynagear — TB-017Epton — T-24454Firestone — 51309510Freshstart — CD-017Gates — 6404Gates — T017Goodyear — 40017Goodyear — 40060Hoof — HB017Lazorlite — L55-4405MasterPro — T017Melling — B017Microtest — 9-017Mighty Distributing System — CD17NAPA — 25-90170NAPA — 250017Pirelli — 80017Pirelli — 88017Pirelli — TB017Proven Value — TB-017Republic — R017Rockhill — TB-17Sunoco — TB404Texaco — TB404TRW — LB17Uniroyal — A453L075Vera — 45-00823
