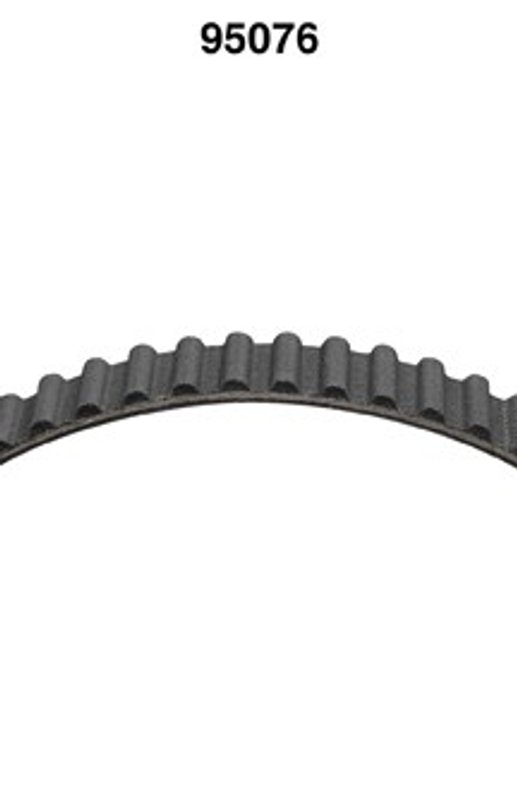

Dayco 95076 Engine Timing Belt - Camshaft

Dayco 95076 Timing Belt Overview

The Dayco 95076 timing belt is an engine timing belt for camshaft drive applications in select Chevrolet, Pontiac, and Isuzu vehicles. Built from chloroprene with a round tooth profile, it measures 30 mm wide, 1276 mm effective length, and 134 teeth for precise timing service.

Compatible with 1981-1986 Chevrolet Chevette camshaft timing belt applications, 1981-1986 Pontiac Acadian camshaft timing belt applications, and 1981-1984 Isuzu I-Mark camshaft timing belt applications, this Dayco Timing Belt line part is built for standard temperature and load conditions.

Key Features

• Brand: Dayco Timing Belt
• Part number: 95076
• Material: chloroprene
• Color: black
• Top width: 30 mm (1.19 in.)
• Effective length: 1276 mm (50.24 in.)
• Tooth count: 134
• Tooth pitch: 9.525 mm (.375 in.)
• Round tooth profile
• No timing marks
• Standard temperature and load construction

Product Details

Dayco 95076 is a camshaft timing belt for engines that require a 134-tooth, round-tooth belt with a 9.525 mm pitch. The chloroprene construction and standard temp/load design support consistent belt tracking and timing accuracy in the specified Chevrolet Chevette, Pontiac Acadian, and Isuzu I-Mark applications. If you are replacing a worn timing belt on a 1981-1986 Chevrolet Chevette or Pontiac Acadian, or a 1981-1984 Isuzu I-Mark, this part number provides the dimensions and tooth profile needed for a direct timing service replacement.

This part cross-references ACDelco TB076 and Gates 6429 for the same application.

Common Replacement Reasons

• Cracked, glazed, or worn timing belt material
• Noise from the timing drive area
• Incorrect camshaft timing after belt wear
• Scheduled timing belt service on older engine platforms
• Restoring proper engine synchronization in Chevrolet Chevette, Pontiac Acadian, or Isuzu I-Mark applications

Installation Notes

Verify tooth count, width, effective length, and tooth pitch before installation. Because this belt has no timing marks, align engine timing components according to the service procedure for the specific vehicle and engine. Inspect related timing components, pulleys, and tensioning parts during service to confirm proper belt tracking and timing alignment.

Quality Assurance

Dayco timing belts are built for engine timing service with application-specific dimensions and construction details. Confirm fitment by year, make, model, and camshaft timing belt position before ordering the Dayco 95076.
