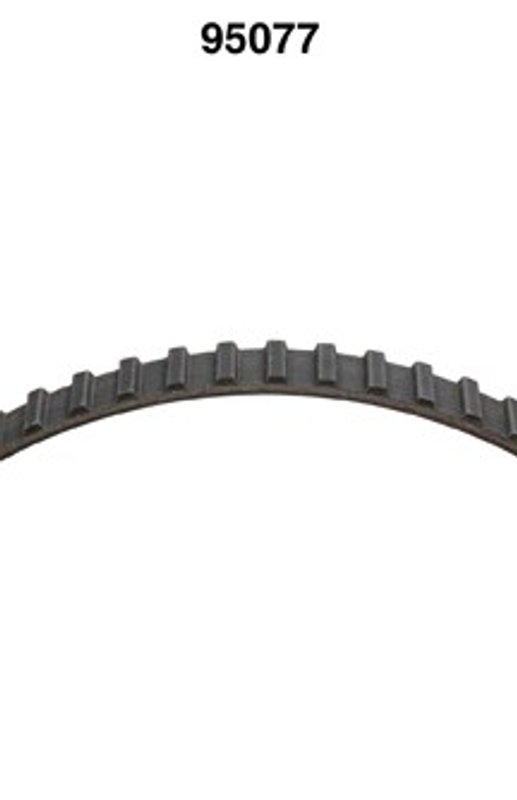

Dayco 95077 Engine Timing Belt - Camshaft

Brand	Dayco 95077
Position	Camshaft
Material	Chloroprene
Timing Marks	No
Top Width	0.75
Top Width	19
Color	Black
2057	Yes
Construction	Std temp and load
Effective Length	1010
Effective Length	39.77
Number of Teeth	106
Tooth Pitch	.37500
Tooth Pitch	9.525
Tooth Profile	Square tooth
Product line	Timing Belt
Fits	Nissan · 18 vehicles

Timing belt. Chloroprene construction handles standard temperature and load.

Square-tooth design. Delivers precise engagement for dependable timing performance.

No timing marks. A clean belt layout for straightforward installation setup.

Cross-references ACDelco TB077, Armormark TB-077 and Atlas 689908 for the same application. See all 48.

$22.77Free shipping

Out of stock

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Timing Belt options

Dayco 95077 Timing Belt for Nissan Camshaft Applications

The Dayco 95077 timing belt is built for Nissan camshaft drive applications that require a 106-tooth, square-tooth belt with a 9.525 mm pitch. It is a black chloroprene belt designed for standard temperature and load conditions, with an effective length of 1010 mm (39.77 in.) and a 19 mm (0.75 in.) top width.

Compatible with select Nissan Pulsar NX, Sentra, Pulsar, and 310 models, this timing belt supports precise camshaft synchronization in the engine valve train. The Dayco Timing Belt line focuses on application-specific fitment and consistent belt geometry for service replacement work.

Key Features

Part number: 95077
Brand: Dayco Timing Belt
Material: chloroprene
Color: black
106 teeth with square-tooth profile
Tooth pitch: 9.525 mm (.375 in.)
Top width: 19 mm (0.75 in.)
Effective length: 1010 mm (39.77 in.)
Standard temperature and load construction
No timing marks

Detailed Description

Dayco 95077 is an engine timing belt for camshaft drive service on select Nissan vehicles. It matches the listed belt dimensions and tooth profile used in these applications, making it a direct replacement choice for maintenance on 1982 Nissan 310, 1983 Nissan Pulsar, 1982-1988 Nissan Sentra, and 1983-1988 Nissan Pulsar NX camshaft timing belt applications. This part number, 95077, also cross-references Duralast 95077 for the same application.

Use this belt when replacing a worn or age-sensitive timing belt in Nissan engine valve train service. The belt’s chloroprene construction and standard temp/load design support routine replacement needs where correct tooth count, pitch, and length are required for proper camshaft timing.

What This Part Helps Address

Worn or cracked timing belt material
Incorrect camshaft timing from belt stretch or wear
Noise caused by an aging belt in the valve train
Service replacement for scheduled timing belt maintenance
Fitment issues when the original belt requires 106 teeth and a 19 mm width

Installation Notes and Tips

Verify the engine application, tooth count, pitch, width, and effective length before installation. Because this belt has no timing marks, align engine timing components according to the service procedure for the specific Nissan model. Inspect related timing components during service and confirm camshaft timing after installation.

Quality Assurance

Dayco supplies timing belts for engine service applications with attention to dimensional accuracy and belt construction. The 95077 is built to match the listed specifications for the covered Nissan camshaft applications.

This part fits 18 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
1988	Nissan	Pulsar NX	1.6L	L4	Camshaft	Timing Belt
1988	Nissan	Sentra	—	—	Camshaft	Timing Belt
1987	Nissan	Pulsar NX	—	—	Camshaft	Timing Belt
1987	Nissan	Sentra	1.6L	L4	Camshaft	Timing Belt
1986	Nissan	Pulsar NX	—	—	Camshaft	Timing Belt
1986	Nissan	Sentra	1.6L	L4	Camshaft	Timing Belt
1985	Nissan	Pulsar NX	—	—	Camshaft	Timing Belt
1985	Nissan	Sentra	1.6L	L4	Camshaft	Timing Belt
1984	Nissan	Pulsar NX	1.6L	L4	Camshaft	Timing Belt
1984	Nissan	Pulsar NX	1.5L	L4	Camshaft	Timing Belt
1984	Nissan	Sentra	1.6L	L4	Camshaft	Timing Belt
1983	Nissan	Pulsar	—	—	Camshaft	Timing Belt
1983	Nissan	Pulsar NX	1.6L	L4	Camshaft	Timing Belt
1983	Nissan	Pulsar NX	1.5L	L4	Camshaft	Timing Belt
1983	Nissan	Sentra	1.5L	L4	Camshaft	Timing Belt
1983	Nissan	Sentra	1.6L	L4	Camshaft	Timing Belt
1982	Nissan	310	—	—	Camshaft	Timing Belt
1982	Nissan	Sentra	—	—	Camshaft	Timing Belt
No rows match your filter.

Directly replaces or cross-references 48 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

ACDelco — TB077Armormark — TB-077Atlas — 689908Atlas — T-77AutoZone — T077AutoZone — TB077Bando — 106ZA19Bando — 398AL075Beck/Arnley — 026-0184BorgWarner — TB077CARQUEST — T077Cleveland — B077Cloyes — B077Cloyes — C077Continental-ContiTech — TB077Datsun/Nissan — 13028-01M00Datsun/Nissan — 13028-10M00Datsun/Nissan — 13028-11M00Datsun/Nissan — 13028-11M10Datsun/Nissan — 13028-61A00Datsun/Nissan — 13208-11M00Duralast — 95077Dynagear — TB-077Freshstart — CD-077Gates — 6432Gates — T077Goodyear — 40077Hoof — HB077Lazorlite — L55-4111MasterPro — T077Mazda — E801-12-205Mazda — F801-12-205Mazda — F802-12-205Melling — B077Mighty Distributing System — CD77Mitsuboshi — 106ZA19NAPA — 25-90410NAPA — 250077Pirelli — 88077Pirelli — TB077Proven Value — TB-077Republic — R077Rockhill — TB-77Sunoco — TB077TRW — LB077TRW — LB77Uniroyal — A397L075Vera — 45-01168
