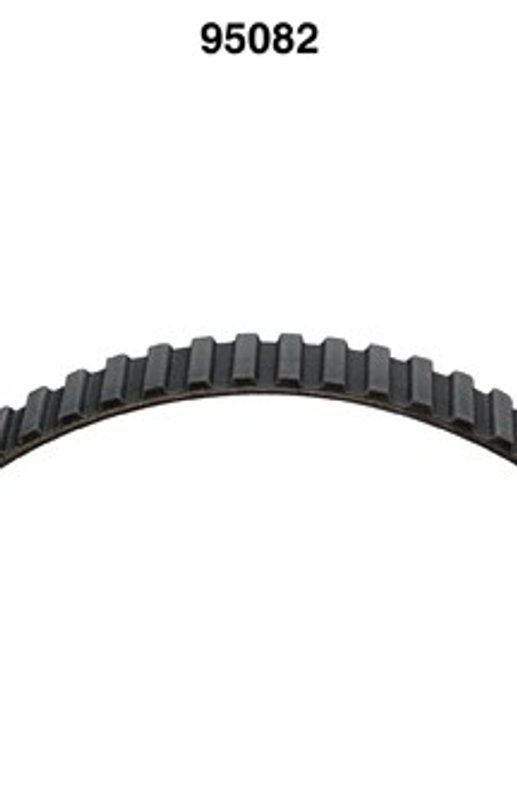

Dayco 95082 Engine Timing Belt - Injection Pump
| Brand | Dayco 95082 |
|---|---|
| Position | Injection Pump |
| Material | Chloroprene |
| Timing Marks | No |
| Top Width | 0.79 |
| Top Width | 20 |
| Color | Black |
| 2057 | Yes |
| Construction | Std temp/reinforced teeth |
| Effective Length | 28.12 |
| Effective Length | 714 |
| Number of Teeth | 75 |
| Tooth Pitch | .37500 |
| Tooth Pitch | 9.525 |
| Tooth Profile | Square tooth |
| Product line | Timing Belt |
| Fits | Volvo · 22 vehicles |
Timing belt. Chloroprene construction with reinforced teeth for dependable power transfer.
Square-tooth profile. Promotes precise engagement and consistent timing performance.
75 teeth. Engineered for accurate synchronization in the valve train.
Cross-references ACDelco TB082, Armormark TB-082 and Beck/Arnley 026-0180 for the same application. See all 30.
Dayco Timing Belt 95082 for Volvo Injection Pump Applications
The Dayco 95082 timing belt is built for Volvo injection pump service on select 1983-1986 applications. It uses chloroprene construction with reinforced teeth and a square tooth profile for precise engagement in timing-driven engine systems.
Key Features
- Brand: Dayco Timing Belt
- Part number: 95082
- Material: Chloroprene
- Construction: Standard temperature with reinforced teeth
- Color: Black
- Top width: 20 mm (0.79 in.)
- Effective length: 714 mm (28.12 in.)
- Number of teeth: 75
- Tooth pitch: 9.525 mm (.375 in.)
- Tooth profile: Square tooth
- Timing marks: No
Product Details
Dayco Timing Belt 95082 is an engine timing belt for Volvo injection pump applications, including Fits 1985-1986 Volvo 740, Injection Pump; Fits 1985 Volvo 745, Injection Pump; and Fits 1983-1985 Volvo 760, Injection Pump. The belt’s reinforced tooth construction and square tooth profile support consistent tooth engagement, while the chloroprene body provides a durable belt material for timing service. If you are searching for a Volvo 740 injection pump timing belt or a Volvo 760 timing belt replacement, this part number 95082 matches the listed applications.
This part cross-references Gates T082 for the same application.
What It Is Used For
- Replacing a worn or cracked Volvo injection pump timing belt
- Restoring proper timing drive operation on listed Volvo diesel applications
- Addressing belt noise caused by wear or tooth damage
- Correcting timing concerns related to belt stretch or age
- Supporting scheduled timing belt service on Volvo 740, 745, and 760 models
Installation Notes and Tips
Verify engine application, injection pump position, tooth count, width, and effective length before installation. Because this belt has no timing marks, align timing components using the engine’s service procedure and factory reference points. Replace related wear items and inspect pulleys, tensioners, and seals during service to help maintain proper belt tracking and timing accuracy.
Quality Assurance
Dayco timing belts are engineered for timing-system service with reinforced tooth construction and application-specific dimensions. Confirm fitment against the listed Volvo applications before installation. Part number 95082 is the correct reference for the vehicles shown above.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1986 | Volvo | 740 | 2.4L | L6 | Injection Pump | Recommended Replacement 48,000 miles, Normal Driving Conditions; Timing Belt |
| 1985 | Audi | 5000 | 2.0L | L5 | Injection Pump | Timing Belt |
| 1985 | Volvo | 740 | 2.4L | L6 | Injection Pump | Recommended Replacement 48,000 miles, Normal Driving Conditions; Timing Belt |
| 1985 | Volvo | 745 | 2.4L | L6 | Injection Pump | Recommended Replacement 75,000 miles, Normal Driving Conditions; Timing Belt |
| 1985 | Volvo | 760 | 2.4L | L6 | Injection Pump | Timing Belt |
| 1984 | Audi | 5000 | 2.0L | L5 | Injection Pump | Timing Belt |
| 1984 | Volvo | 244 | 2.4L | L6 | Injection Pump | Recommended Replacement 75,000 miles, Normal Driving Conditions; Timing Belt |
| 1984 | Volvo | 245 | 2.4L | L6 | Injection Pump | Recommended Replacement 75,000 miles, Normal Driving Conditions; Timing Belt |
| 1984 | Volvo | 760 | 2.4L | L6 | Injection Pump | Timing Belt |
| 1983 | Audi | 5000 | 2.0L | L5 | Injection Pump | Timing Belt |
| 1983 | Volvo | 244 | 2.4L | L6 | Injection Pump | Recommended Replacement 75,000 miles, Normal Driving Conditions; Timing Belt |
| 1983 | Volvo | 245 | 2.4L | L6 | Injection Pump | Recommended Replacement 75,000 miles, Normal Driving Conditions; Timing Belt |
| 1983 | Volvo | 760 | 2.4L | L6 | Injection Pump | Timing Belt |
| 1982 | Audi | 5000 | 2.0L | L5 | Injection Pump | Timing Belt |
| 1982 | Volvo | 244 | 2.4L | L6 | Injection Pump | Recommended Replacement 75,000 miles, Normal Driving Conditions; Timing Belt |
| 1982 | Volvo | 245 | 2.4L | L6 | Injection Pump | Recommended Replacement 75,000 miles, Normal Driving Conditions; Timing Belt |
| 1981 | Audi | 5000 | 2.0L | L5 | Injection Pump | Recommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; with A/C; Timing Belt |
| 1981 | Volvo | 264 | 2.4L | L6 | Injection Pump | Timing Belt |
| 1980 | Audi | 5000 | 2.0L | L5 | Injection Pump | Timing Belt |
| 1980 | Volvo | 264 | 2.4L | L6 | Injection Pump | Timing Belt |
| 1980 | Volvo | 265 | 2.4L | L6 | Injection Pump | Timing Belt |
| 1979 | Audi | 5000 | 2.0L | L5 | Injection Pump | Timing Belt |
