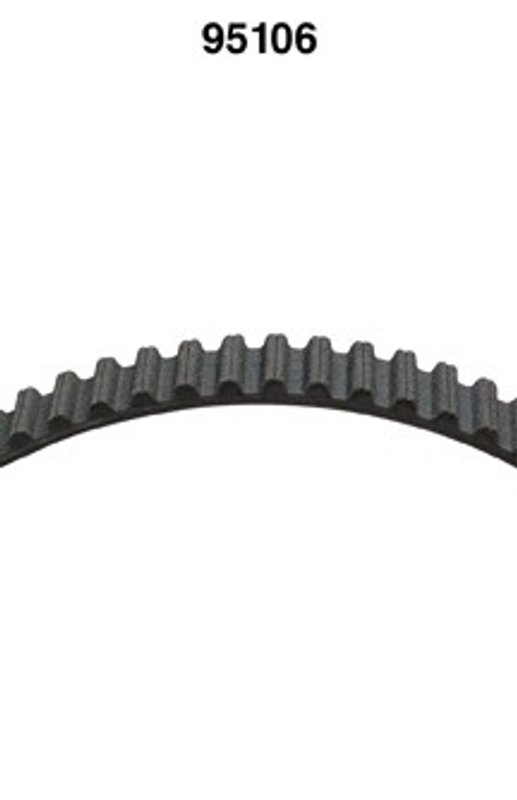

Dayco 95106 Engine Timing Belt - Camshaft
| Brand | Dayco 95106 |
|---|---|
| Position | Camshaft |
| Material | Chloroprene |
| Timing Marks | No |
| Top Width | 0.99 |
| Top Width | 25 |
| Color | Black |
| 2057 | Yes |
| Construction | Std temp/reinforced teeth |
| Effective Length | 1052 |
| Effective Length | 41.42 |
| Number of Teeth | 128 |
| Tooth Pitch | .32362 |
| Tooth Pitch | 8.220 |
| Tooth Profile | Round tooth |
| Product line | Timing Belt |
| Fits | BMW · 6 vehicles |
OE-style timing belt. Standard-temp reinforced teeth for dependable valve train operation.
Chloroprene construction. Black belt material resists wear in demanding engine service.
Round tooth profile. Promotes smooth engagement and consistent timing performance.
Cross-references ACDelco TB106, Armormark TB-106 and Beck/Arnley 026-0198 for the same application. See all 16.
Dayco 95106 Timing Belt for BMW Camshaft Applications
The Dayco 95106 timing belt is an engine timing belt built for select BMW camshaft applications. It is made from chloroprene with reinforced teeth and a round tooth profile for consistent engagement in the timing drive.
Compatible with 1982-1985 BMW 528e and 1984-1985 BMW 325e camshaft timing belt applications, this Dayco Timing Belt line part number 95106 is a direct-fit option for the listed vehicles.
Key Features
- Brand: Dayco Timing Belt
- Part number: 95106
- Material: Chloroprene
- Construction: Standard temperature with reinforced teeth
- Tooth profile: Round tooth
- Number of teeth: 128
- Tooth pitch: 8.220 mm / .32362 in
- Top width: 25 mm / 0.99 in
- Effective length: 1052 mm / 41.42 in
- Color: Black
- No timing marks
Product Details
Dayco 95106 is part of the Dayco Timing Belt product line and is built for engine timing service where accurate camshaft synchronization is required. The chloroprene belt construction and reinforced teeth support stable tooth engagement, while the round tooth design matches the specified timing drive geometry for the listed BMW applications. This part cross-references Gates T106 for the same application.
Common Issues This Belt Can Address
- Worn or cracked timing belt material
- Noise from an aging timing drive belt
- Loss of proper camshaft timing due to belt wear
- Service replacement at scheduled timing intervals
- Visible tooth wear or belt glazing
Installation Notes and Tips
Install the belt only on the confirmed BMW applications listed below and verify camshaft timing before engine start-up. Because this belt has no timing marks, use the correct service procedure and timing tools for alignment. Replace related timing components during service when the vehicle manufacturer’s maintenance procedure calls for it.
- Fits 1982 BMW 528e, camshaft
- Fits 1983 BMW 528e, camshaft
- Fits 1984-1985 BMW 528e, camshaft
- Fits 1984-1985 BMW 325e, camshaft
Quality Assurance
Dayco timing belts are engineered for engine service applications and built to meet the dimensional and construction requirements listed for this part number. Verify fitment by year, make, model, and camshaft application before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1985 | BMW | 325e | Camshaft | Timing Belt |
| 1985 | BMW | 528e | Camshaft | Timing Belt |
| 1984 | BMW | 325e | Camshaft | Timing Belt |
| 1984 | BMW | 528e | Camshaft | Timing Belt |
| 1983 | BMW | 528e | Camshaft | Recommended Replacement 50,000 miles, Normal Driving Conditions; Timing Belt |
| 1982 | BMW | 528e | Camshaft | Timing Belt |
