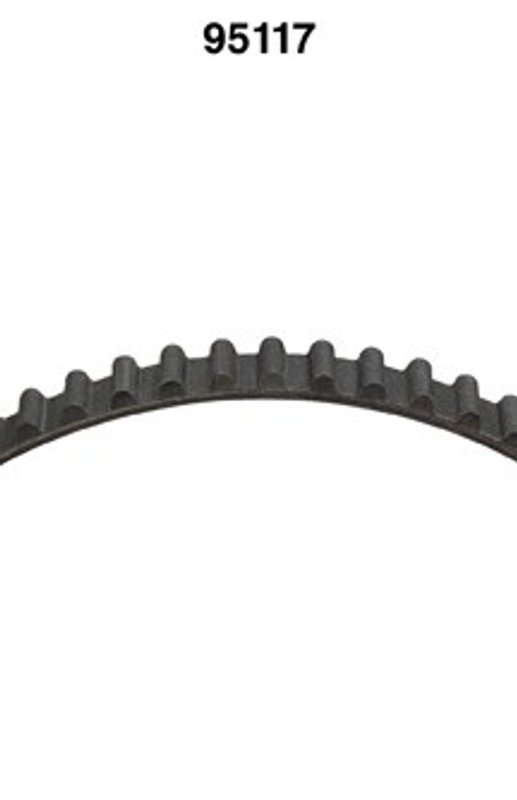

Dayco 95117 Engine Timing Belt - Camshaft
OE Quality 60-Day Returns
Dayco
 Timing Belt

Dayco 95117 Engine Timing Belt - Camshaft

Brand Dayco 95117
Position Camshaft
Yes
Color Black
Construction Hi Temp
Effective Length 40.87
Effective Length 1038
Material Highly Saturated (Acryl) Nitrile
Number of Teeth 109
Timing Marks No
Tooth Pitch .37500
Tooth Pitch 9.525
Tooth Profile Round Tooth
Top Width 0.87
Top Width 22
Product line Timing Belt
Fits Mazda · 4 vehicles

Round-tooth design. Promotes smooth, precise timing belt engagement.

Hi-temp construction. Built to handle elevated engine temperatures.

Acryl nitrile material. Provides durable, heat-resistant belt performance.

Cross-references ACDelco TB117, Armormark TB-117 and Beck/Arnley 026-0224 for the same application. See all 28.

$26.81Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $26.81
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Belt options

Dayco 95117 Timing Belt for Mazda

The Dayco 95117 timing belt is an engine timing belt built for precise camshaft synchronization in select Mazda applications. It uses highly saturated acryl nitrile material with hi-temp construction and a round tooth profile for dependable operation in demanding engine environments.

Compatible With 1986-1987 Mazda 626 camshaft applications and 1986-1987 Mazda B2000 camshaft applications, this Dayco Timing Belt line part is specified for 22 mm width fitments where listed. The 95117 is a direct-fit timing belt choice for owners searching for a Mazda 626 timing belt or Mazda B2000 camshaft timing belt replacement.

  • Dayco Timing Belt product line
  • Part number 95117
  • Highly saturated acryl nitrile material
  • Hi-temp construction for elevated engine bay conditions
  • Round tooth profile
  • 109 teeth with 9.525 mm (.375 in) tooth pitch
  • 22 mm top width and 1038 mm (40.87 in) effective length
  • Black belt with no timing marks

Timing Belt Line Details

Dayco’s Timing Belt line focuses on accurate tooth engagement and stable belt geometry for engine valve train service. The 95117 timing belt is built to maintain camshaft timing in Mazda 626 and Mazda B2000 applications where the listed dimensions and tooth count match the engine specification. Cross-reference part numbers include Gates T117 and ACDelco TB117 for the same application.

Common Problems It Can Address

  • Incorrect camshaft timing caused by a worn or stretched belt
  • Engine misfire related to timing belt wear
  • Noise from a deteriorated timing belt profile
  • Starting and drivability issues tied to timing synchronization loss
  • Service replacement for aged Mazda timing belt components

Installation Notes

Verify tooth count, width, pitch, and effective length before installation. This belt is listed for camshaft use on 1986-1987 Mazda 626 and 1986-1987 Mazda B2000 applications, so confirm engine code and timing system layout against the vehicle service information. Replace related timing components according to the vehicle manufacturer’s service procedure.

Quality Assurance

Dayco manufactures this timing belt with hi-temp construction and a saturated nitrile-based material selection to support consistent belt performance in engine service. Part number 95117 is cataloged for confirmed Mazda fitments and matching dimensional requirements.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1987Mazda626Camshaft22mm Width; Timing Belt
1987MazdaB2000CamshaftTiming Belt
1986Mazda626Camshaft22mm Width; Timing Belt
1986MazdaB2000Camshaft22mm Width; Timing Belt
Directly replaces or cross-references 28 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — TB117Armormark — TB-117Beck/Arnley — 026-0224BorgWarner — TB117CARQUEST — T117Cloyes — B117Continental-ContiTech — TB117Duralast — 95117Dynagear — TB-117Freshstart — CD-117Gates — T117Goodyear — 40117Lazorlite — L55-4235Lazorlite — L55-4626MasterPro — T117Mazda — FE06-12-205Mazda — FE08-12-205Mazda — FE09-12-205Melling — B0117Mighty Distributing System — CD117NAPA — 25-90780NAPA — 250117Pirelli — 88117Pirelli — TB117Proven Value — TB-117Republic — R0117TRW — LB117Vera — 45-01820
