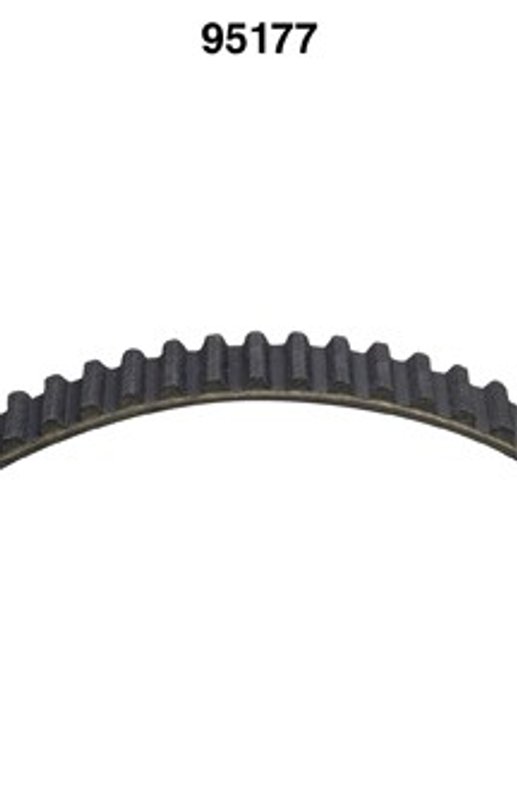

Dayco 95177 Engine Timing Belt - Camshaft

Dayco 95177 Timing Belt for Geo Storm and Isuzu Stylus

The Dayco 95177 timing belt is an engine timing belt built for precise camshaft synchronization in select Geo Storm and Isuzu Stylus applications. It uses a high-temperature construction with highly saturated acryl nitrile material and a round-tooth profile with a flat tip for consistent engagement.

• Engine timing belt for camshaft drive applications
• Fits 1990-1993 Geo Storm, camshaft timing belt
• Fits 1991-1993 Isuzu Stylus, camshaft timing belt
• Highly saturated (acryl) nitrile material
• Hi-temp construction for elevated engine bay conditions
• Black belt with no timing marks
• 112 teeth with 8.000 mm tooth pitch
• 25 mm top width and 896 mm effective length
• Round tooth profile with flat tip

Dayco Timing Belt 95177 is specified for engines that require a 112-tooth, 25 mm wide belt with an 896 mm effective length. The belt’s hi-temp construction and saturated nitrile material are selected for durability in timing systems where accurate camshaft timing is critical. This part cross-references Gates T177 and ACDelco TB177 for the same application.

Common Uses

• Replacing a worn or stretched timing belt on a Geo Storm
• Restoring camshaft timing on an Isuzu Stylus
• Addressing belt noise caused by wear or glazing
• Correcting timing drift from age-related belt elongation
• Servicing a timing belt during scheduled engine maintenance

Installation Notes

Verify engine code, belt width, tooth count, and effective length before installation. Because this belt has no timing marks, align timing components using the engine service procedure and factory reference points. Inspect related timing system components, including tensioners, pulleys, and seals, before final assembly.

Quality Assurance

Dayco is a recognized timing component manufacturer, and the 95177 is built to match the dimensional and profile requirements listed for the confirmed applications.
