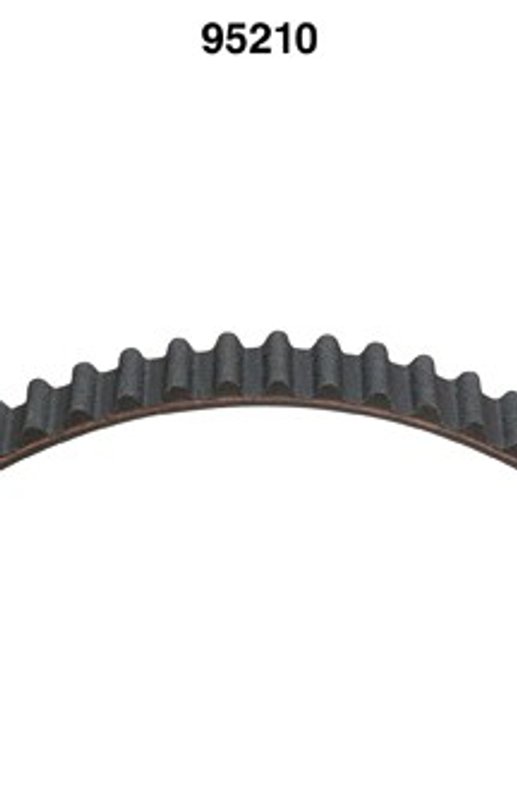

Dayco 95210 Engine Timing Belt - Camshaft
OE Quality 60-Day Returns
Dayco
 Timing Belt

Dayco 95210 Engine Timing Belt - Camshaft

Brand Dayco 95210
Position Camshaft
Yes
Color Black
Construction Std Temp and Load
Effective Length 48.39
Effective Length 1229
Material Chloroprene
Number of Teeth 129
Timing Marks No
Tooth Pitch .37500
Tooth Pitch 9.525
Tooth Profile Round Tooth
Top Width 0.87
Top Width 22
Product line Timing Belt
Fits Ford and Mazda · 6 vehicles

Timing belt. Chloroprene construction with a round-tooth profile for dependable power transfer.

Standard temp and load. Built for everyday engine timing demands.

No timing marks. Clean, straightforward belt design.

Cross-references ACDelco TB210, Armormark TB-210 and BorgWarner TB210 for the same application. See all 20.

$31.52Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $31.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Belt options

Dayco 95210 Timing Belt for Ford and Mazda

The Dayco 95210 timing belt is an engine timing belt built for camshaft synchronization in select Ford and Mazda applications. It uses chloroprene construction, a round tooth profile, and standard temperature and load design for dependable valve train operation.

Key Features

  • Brand Line: Dayco Timing Belt
  • Part Number: 95210
  • Chloroprene material with black finish
  • Round tooth profile with 129 teeth
  • Tooth pitch: 9.525 mm (.37500 in.)
  • Effective length: 1229 mm (48.39 in.)
  • Top width: 22 mm (0.87 in.)
  • No timing marks
  • Standard temperature and load construction

Product Details

Dayco Timing Belt products are built for precise camshaft timing and consistent belt tracking in engine valve train systems. The 95210 timing belt is specified for 1992-1994 Ford Ranger, 1993-1994 Ford Mustang, and 1994 Mazda B2300 camshaft applications. This part number 95210 is also cross-referenced with Gates T210 for the same application.

For buyers searching for a Ford Ranger timing belt, Ford Mustang timing belt, or Mazda B2300 timing belt, this belt matches the listed OE-style dimensions and tooth profile needed for the correct timing drive setup. The 95210 timing belt is a direct-fit option for the confirmed camshaft positions shown in the fitment data.

What It Helps Address

  • Incorrect camshaft timing from a worn or stretched belt
  • Engine misfire caused by timing drift
  • Noise from a deteriorated timing belt
  • Loss of synchronization between crankshaft and camshaft
  • Service replacement for scheduled timing belt maintenance

Installation Notes

Install only on the confirmed applications listed for this part number 95210. Verify belt routing, pulley condition, and engine timing marks before removal and during reassembly. Because this belt has no timing marks, use the vehicle service procedure and timing tools specified for the engine. Recommended replacement intervals in the fitment notes include 60,000 miles under normal driving conditions for the listed Ford Ranger, Ford Mustang, and Mazda B2300 applications.

Quality Assurance

Dayco is a recognized timing belt brand in the engine drive system category, and this belt is built to the listed material, tooth, and length specifications for the confirmed applications.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1994FordRanger2.3LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1994MazdaB2300——CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1993FordMustang2.3LL4CamshaftRecommended replacement at 60,000 miles under normal driving conditions.; Timing Belt
1993FordRanger2.3LL4CamshaftRecommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992FordMustang2.3LL4CamshaftMfg. After 1/13/92; Recommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
1992FordRanger2.3LL4CamshaftMfg. After 1/13/92; Recommended Replacement 60,000 miles, Normal Driving Conditions, Belt Manufactures suggested replacement; Timing Belt
Directly replaces or cross-references 20 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — TB210Armormark — TB-210BorgWarner — TB210CARQUEST — T210Cloyes — B210Continental-ContiTech — TB210Duralast — 95210Dynagear — TB-210Ford — F1ZZ-6268-AFord — F17E-6268-AAFord — F37E-6268-AAFord — F57E-6268-BAFreshstart — CD-210Gates — T210Goodyear — 40210MasterPro — T210Mazda — ZZM1-12-2050NAPA — 25-91210NAPA — 250210Pirelli — TB210
