Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

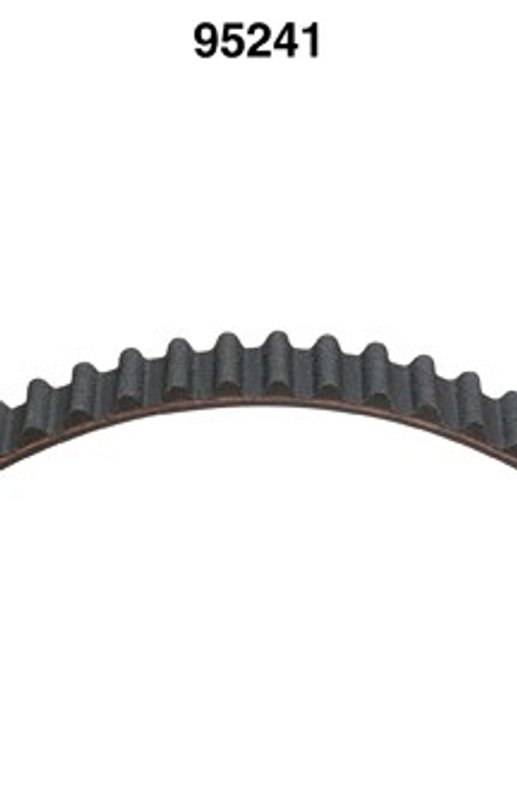

Dayco 95241 Engine Timing Belt - Camshaft
| Brand | Dayco 95241 |
|---|---|
| Position | Camshaft |
| Yes | |
| Color | Black |
| Construction | Std Temp and Load |
| Effective Length | 36.38 |
| Effective Length | 924 |
| Material | Chloroprene |
| Number of Teeth | 97 |
| Timing Marks | No |
| Tooth Pitch | .37500 |
| Tooth Pitch | 9.525 |
| Tooth Profile | Round Tooth |
| Top Width | 0.75 |
| Top Width | 19 |
| Product line | Timing Belt |
| Fits | Geo, Pontiac, and Suzuki · 6 vehicles |
Timing belt. Chloroprene construction with a round-tooth profile for dependable valve train operation.
Standard temp and load. Built for everyday engine conditions with a durable black belt design.
97 teeth. Precise tooth count and pitch help maintain accurate timing engagement.
Cross-references ACDelco TB241, Armormark TB-241 and Beck/Arnley 026-0324 for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dayco 95241 Timing Belt for Geo Metro and Suzuki Swift
The Dayco 95241 timing belt is an engine timing belt for camshaft applications in select Geo Metro, Pontiac Firefly, and Suzuki Swift models. Built with chloroprene and a round-tooth profile, it is specified for standard temperature and load conditions and uses a 19 mm top width with 97 teeth.
Key Features
- Brand: Dayco Timing Belt line
- Part number: 95241
- Material: chloroprene
- Construction: standard temperature and load
- Color: black
- Tooth profile: round tooth
- Tooth pitch: 9.525 mm (.375 in)
- Effective length: 924 mm (36.38 in)
- Top width: 19 mm (0.75 in)
- Timing marks: no
Product Details
Dayco Timing Belt products are built for engine timing service where accurate camshaft synchronization matters. This Dayco 95241 timing belt uses a chloroprene construction and a round-tooth design to match the specified belt geometry for the listed applications. It cross-references ACDelco TB241 and Gates T241 for the same application. Compatible vehicle coverage includes Fits 1994-1995 Geo Metro, Camshaft; Fits 1994-1995 Pontiac Firefly, Camshaft; Fits 1994 Suzuki Swift, Camshaft; and Fits 1993 Geo Metro, Camshaft.
What This Timing Belt Helps Address
- Restores proper camshaft timing after belt wear or age-related stretching
- Addresses noise or irregular operation caused by a worn timing belt
- Helps correct timing concerns during scheduled maintenance service
- Supports replacement after inspection finds cracking, glazing, or tooth wear
- Helps maintain synchronization in 1993-1995 Geo Metro, Pontiac Firefly, and Suzuki Swift applications
Installation Notes and Tips
Verify engine code, sprocket configuration, and belt dimensions before installation. This application includes a 1993 Geo Metro note for a 5 bolt sprocket and a recommended replacement interval of 60,000 miles under normal driving conditions. Because this belt has no timing marks, align timing components using the engine service procedure rather than printed belt references.
Quality Assurance
Dayco manufactures timing components for engine service applications with specified material, pitch, width, and tooth profile details to support correct fitment in the listed vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Geo | Metro | 1.0L | L3 | Camshaft | Timing Belt |
| 1995 | Pontiac | Firefly | 1.0L | L3 | Camshaft | Timing Belt |
| 1994 | Geo | Metro | 1.0L | L3 | Camshaft | Timing Belt |
| 1994 | Pontiac | Firefly | 1.0L | L3 | Camshaft | Timing Belt |
| 1994 | Suzuki | Swift | 1.0L | L3 | Camshaft | Timing Belt |
| 1993 | Geo | Metro | 1.0L | L3 | Camshaft | 5 Bolt Sprocket; Recommended Replacement 60,000 miles, Normal Driving Conditions; Timing Belt |
