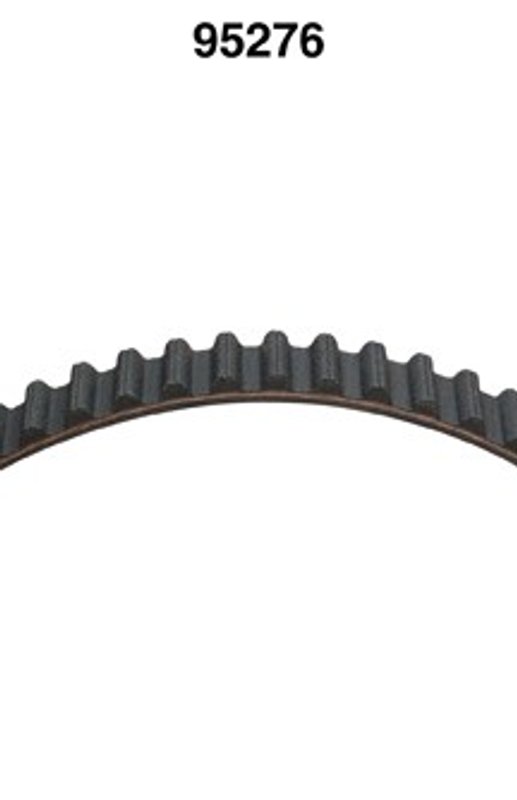

Dayco 95276 Engine Timing Belt - Camshaft
OE Quality 60-Day Returns
Dayco
 Timing Belt

Dayco 95276 Engine Timing Belt - Camshaft

Brand Dayco 95276
Position Camshaft
Yes
Color Black
Construction Hi Temp
Effective Length 49.14
Effective Length 1248
Material Highly Saturated (Acryl) Nitrile
Number of Teeth 131
Timing Marks No
Tooth Pitch .37500
Tooth Pitch 9.525
Tooth Profile Round Tooth
Top Width 0.87
Top Width 22
Product line Timing Belt
Fits Ford and Mazda · 14 vehicles

Hi-temp construction. Built to handle demanding engine timing conditions.

Round-tooth profile. Promotes smooth, precise belt engagement.

Timing belt. Keeps valve train timing synchronized.

Cross-references ACDelco TB276, Armormark TB-276 and Beck/Arnley 026-1009 for the same application. See all 16.

$32.88Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $32.88
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Belt options

Dayco 95276 Timing Belt for Ford Ranger and Mazda B2300/B2500

The Dayco 95276 timing belt is an engine timing belt built for camshaft synchronization in select Ford Ranger and Mazda truck applications. It uses highly saturated acryl nitrile material with hi-temp construction to handle demanding underhood conditions, while the round-tooth profile and 131-tooth layout support precise belt engagement.

Key Features

  • Brand: Dayco Timing Belt
  • Part number: 95276
  • Material: Highly Saturated (Acryl) Nitrile
  • Hi-temp construction for elevated engine bay temperatures
  • Round tooth profile for consistent tooth engagement
  • 131 teeth with 9.525 mm (.37500 in.) tooth pitch
  • 22 mm (0.87 in.) top width
  • Black belt with no timing marks

Detailed Description

Dayco 95276 is an engine timing belt for camshaft drive applications in 1995-2001 Ford Ranger, 1995-1997 Mazda B2300, and 1998-2001 Mazda B2500 models. This Dayco Timing Belt line focuses on durable belt construction for engines that rely on accurate valve timing, and the 95276 uses a high-temperature, highly saturated nitrile compound to support stable operation in heat-exposed environments. The belt’s 131-tooth, round-tooth design and 9.525 mm pitch are matched to the specified application, making this part number a direct service replacement for the listed vehicles.

This part cross-references ACDelco TB276 and Gates T276 for the same application.

What This Timing Belt Helps Address

  • Engine timing drift caused by a worn or stretched belt
  • Camshaft synchronization issues in the listed Ford Ranger and Mazda truck applications
  • Noise or irregular operation from a deteriorated timing belt
  • Service replacement needs at scheduled timing belt intervals
  • Heat-related belt wear in high-temperature engine compartments

Installation Notes and Tips

  • Verify engine code and timing component alignment before installation.
  • Replace the belt during the recommended timing service interval for the vehicle.
  • Inspect related timing components, tensioners, and pulleys for wear before reassembly.
  • Confirm tooth count, width, and pitch match the original application before starting the job.
  • Use the vehicle service manual for timing marks and torque specifications.

Quality Assurance

Dayco timing belts are engineered for OE-style service replacement applications and built to meet the dimensional and material requirements of the listed fitments. Dayco 95276 is specified for direct use in the confirmed Ford Ranger and Mazda B2300/B2500 applications shown above.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2001FordRanger2.5LL4CamshaftTiming Belt
2001MazdaB2500——CamshaftReplace Engine Timing Belt at 120,000 miles for normal driving conditions.; Timing Belt
2000FordRanger2.5LL4CamshaftTiming Belt
2000MazdaB2500——CamshaftReplace Engine Timing Belt at 120,000 miles for normal driving conditions.; Timing Belt
1999FordRanger2.5LL4CamshaftTiming Belt
1999MazdaB2500——CamshaftReplace Engine Timing Belt at 120,000 miles for normal driving conditions.; Timing Belt
1998FordRanger2.5LL4CamshaftTiming Belt
1998MazdaB2500——CamshaftReplace Engine Timing Belt at 120,000 miles for normal driving conditions.; Timing Belt
1997FordRanger2.3LL4CamshaftTiming Belt
1997MazdaB2300——CamshaftReplace Engine Timing Belt at 120,000 miles for normal driving conditions.; Timing Belt
1996FordRanger2.3LL4CamshaftTiming Belt
1996MazdaB2300——CamshaftReplace Engine Timing Belt at 120,000 miles for normal driving conditions.; Timing Belt
1995FordRanger2.3LL4CamshaftTiming Belt
1995MazdaB2300——CamshaftReplace Engine Timing Belt at 120,000 miles for normal driving conditions.; Timing Belt
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — TB276Armormark — TB-276Beck/Arnley — 026-1009CARQUEST — T276Cloyes — B276Continental-ContiTech — TB276Duralast — 95276Dynagear — TB-276Ford — F57B-6268-AFord — F57E-6268-BBFord — F57Z-6268-AFreshstart — CD276Gates — T276Goodyear — 40276MasterPro — T276NAPA — 250276
