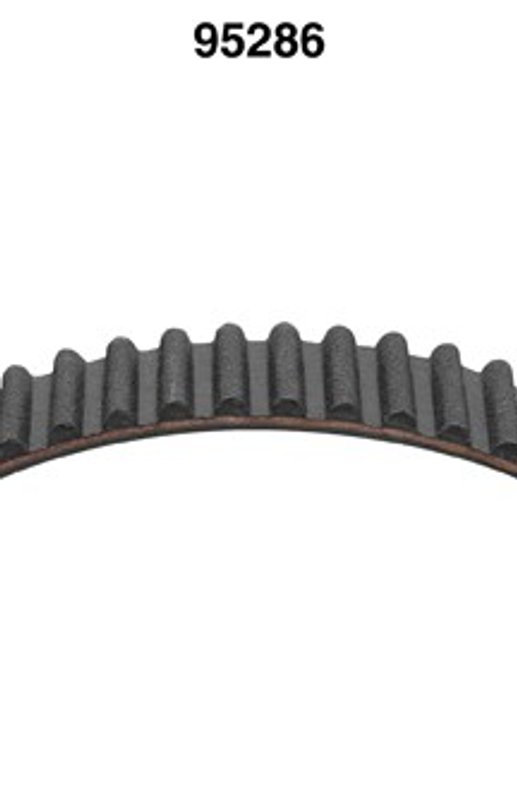

Dayco 95286 Engine Timing Belt - Camshaft
| Brand | Dayco 95286 |
|---|---|
| Position | Camshaft |
| Yes | |
| Color | Black |
| Construction | Hi Temp |
| Effective Length | 62.05 |
| Effective Length | 1576 |
| Material | Highly Saturated (Acryl) Nitrile |
| Number of Teeth | 197 |
| Timing Marks | No |
| Tooth Pitch | .31496 |
| Tooth Pitch | 8.000 |
| Tooth Profile | Round Tooth |
| Top Width | 1.03 |
| Top Width | 26 |
| Product line | Timing Belt |
| Fits | Honda and Acura · 26 vehicles |
Hi-temp construction. Built to handle demanding engine conditions.
Round-tooth profile. Promotes smooth, precise belt engagement.
197 teeth. Provides consistent timing belt operation.
Cross-references ACDelco TB286, Armormark TB-286 and Beck/Arnley 026-1024 for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dayco 95286 Timing Belt for Honda and Acura
The Dayco 95286 timing belt is an engine timing belt built for camshaft drive applications in select Honda and Acura vehicles. It uses highly saturated acrylonitrile material and hi-temp construction to support stable operation in demanding engine environments.
As part of Dayco’s Timing Belt line, this belt is engineered for precise valve train synchronization in applications that require an 8.000 mm tooth pitch, 197 round teeth, and a 62.05 in effective length. The black belt design has no timing marks.
- Highly saturated acrylonitrile material for timing belt durability
- Hi-temp construction for elevated engine bay conditions
- Round tooth profile with 197 teeth
- 8.000 mm tooth pitch and 62.05 in effective length
- No timing marks
- Top width: 26 mm
Fitment and Application Details
Compatible with select camshaft timing belt applications, including Fits 1999-2004 Honda Odyssey, Camshaft Timing Belt; Fits 2003-2004 Honda Pilot, Camshaft Timing Belt; Fits 2001-2003 Acura CL, Camshaft Timing Belt; Fits 1997-1999 Acura CL, Camshaft Timing Belt; Fits 1999-2003 Acura TL, Camshaft Timing Belt; Fits 2001-2002 Acura MDX, Camshaft Timing Belt; Fits 1998-2002 Honda Accord, Camshaft Timing Belt. This part cross-references Honda OE numbers 14400-P8A-A01 and 14400-P8A-A02 for the same application.
What This Timing Belt Helps Address
- Cracked, worn, or stretched timing belt material
- Loss of camshaft timing synchronization
- Noise or irregular operation from an aging belt
- Service replacement for scheduled timing belt maintenance
- Timing belt replacement on Honda Odyssey, Honda Accord, Acura TL, and related applications
Installation Notes and Quality Assurance
Verify engine code, belt dimensions, tooth count, and application details before installation. Timing belt service should be performed with the engine properly timed and all related components inspected according to the vehicle service procedure. Dayco timing belts are built to meet the dimensional and material requirements listed for the application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Honda | Odyssey | — | — | Camshaft | Timing Belt |
| 2004 | Honda | Pilot | — | — | Camshaft | Timing Belt |
| 2003 | Acura | CL | — | — | Camshaft | Timing Belt |
| 2003 | Acura | TL | — | — | Camshaft | Timing Belt |
| 2003 | Honda | Odyssey | — | — | Camshaft | Timing Belt |
| 2003 | Honda | Pilot | — | — | Camshaft | Timing Belt |
| 2002 | Acura | CL | — | — | Camshaft | Timing Belt |
| 2002 | Acura | MDX | — | — | Camshaft | Timing Belt |
| 2002 | Acura | TL | — | — | Camshaft | Timing Belt |
| 2002 | Honda | Accord | 3.0L | V6 | Camshaft | Timing Belt |
| 2002 | Honda | Odyssey | — | — | Camshaft | Timing Belt |
| 2001 | Acura | CL | — | — | Camshaft | Timing Belt |
| 2001 | Acura | MDX | — | — | Camshaft | Timing Belt |
| 2001 | Acura | TL | — | — | Camshaft | Timing Belt |
| 2001 | Honda | Accord | 3.0L | V6 | Camshaft | Timing Belt |
| 2001 | Honda | Odyssey | — | — | Camshaft | Timing Belt |
| 2000 | Acura | TL | — | — | Camshaft | Timing Belt |
| 2000 | Honda | Accord | 3.0L | V6 | Camshaft | Timing Belt |
| 2000 | Honda | Odyssey | 3.5L | V6 | Camshaft | Timing Belt |
| 1999 | Acura | CL | 3.0L | V6 | Camshaft | Timing Belt |
| 1999 | Acura | TL | — | — | Camshaft | Timing Belt |
| 1999 | Honda | Accord | 3.0L | V6 | Camshaft | Timing Belt |
| 1999 | Honda | Odyssey | — | — | Camshaft | Timing Belt |
| 1998 | Acura | CL | 3.0L | V6 | Camshaft | Timing Belt |
| 1998 | Honda | Accord | 3.0L | V6 | Camshaft | Timing Belt |
| 1997 | Acura | CL | 3.0L | V6 | Camshaft | Timing Belt |
