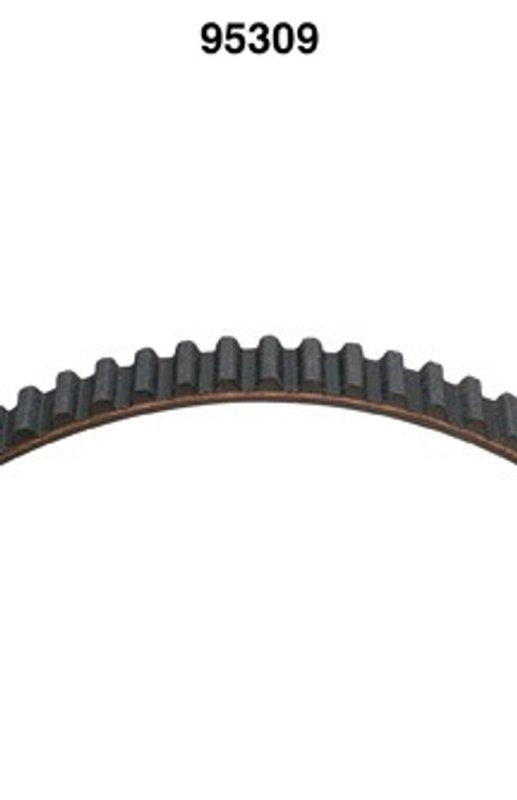

Dayco 95309 Engine Timing Belt - Camshaft
| Brand | Dayco 95309 |
|---|---|
| Position | Camshaft |
| Yes | |
| Color | Black |
| Construction | Hi Temp/Reinforced Teeth |
| Effective Length | 53.23 |
| Effective Length | 1352 |
| Material | Highly Saturated (Acryl) Nitrile |
| Number of Teeth | 169 |
| Timing Marks | No |
| Tooth Pitch | .31496 |
| Tooth Pitch | 8.000 |
| Tooth Profile | Round Tooth, With Flat Tip |
| Top Width | 0.95 |
| Top Width | 24 |
| Product line | Timing Belt |
| Fits | Suzuki, Chevrolet, and Daewoo · 5 vehicles |
Reinforced teeth. Built for dependable timing performance under heat and stress.
Round tooth profile. Promotes smooth engagement for consistent belt operation.
No timing marks. A clean, straightforward belt design for precise setup.
Cross-references ACDelco TB309, Beck/Arnley 026-1043 and CARQUEST T309 for the same application. See all 14.
Dayco 95309 Timing Belt for Suzuki Forenza
The Dayco 95309 timing belt is an engine timing belt built for precise camshaft synchronization in the 2004-2008 Suzuki Forenza. It uses highly saturated acrylonitrile material with hi-temp reinforced teeth to support stable operation in demanding engine conditions.
Key Features
- Engine timing belt for camshaft drive applications
- Highly saturated (acryl) nitrile construction
- Hi-temp reinforced teeth for added durability
- Round tooth profile with flat tip
- Black finish
- 169 teeth with 8.000 mm tooth pitch
- Effective length: 1352 mm / 53.23 in
- Top width: 24 mm / 0.95 in
- No timing marks
Product Details
Dayco Timing Belt 95309 is specified for the camshaft position on the 2004-2008 Suzuki Forenza. The belt’s reinforced tooth construction and heat-resistant material selection are suited to maintaining accurate valve timing, which is critical for smooth engine operation, consistent power delivery, and proper synchronization between the crankshaft and camshaft. This part cross-references Gates T309 and ACDelco TB309 for the same application.
Common Issues This Part Can Address
- Incorrect camshaft timing on a Suzuki Forenza
- Noise or wear associated with an aging timing belt
- Loss of synchronization between engine timing components
- Service replacement for a worn or cracked belt
- Timing belt maintenance on 2004-2008 Suzuki Forenza engines
Installation Notes
Verify engine code and application details before installation. Because this belt has no timing marks, align timing components using the engine’s factory service procedure and timing references. Inspect related timing system components during service and confirm proper belt tension after installation. Dayco 95309 is the correct timing belt for the listed Suzuki Forenza camshaft application.
Quality Assurance
Dayco is a recognized supplier of engine drive components, and the 95309 timing belt is built to meet the dimensional and construction requirements listed for this application. Confirm fitment against the vehicle’s year, make, model, and engine timing specifications before purchase.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Suzuki | Forenza | Camshaft | Timing Belt |
| 2007 | Suzuki | Forenza | Camshaft | Timing Belt |
| 2006 | Suzuki | Forenza | Camshaft | Timing Belt |
| 2005 | Suzuki | Forenza | Camshaft | Timing Belt |
| 2004 | Suzuki | Forenza | Camshaft | Timing Belt |
