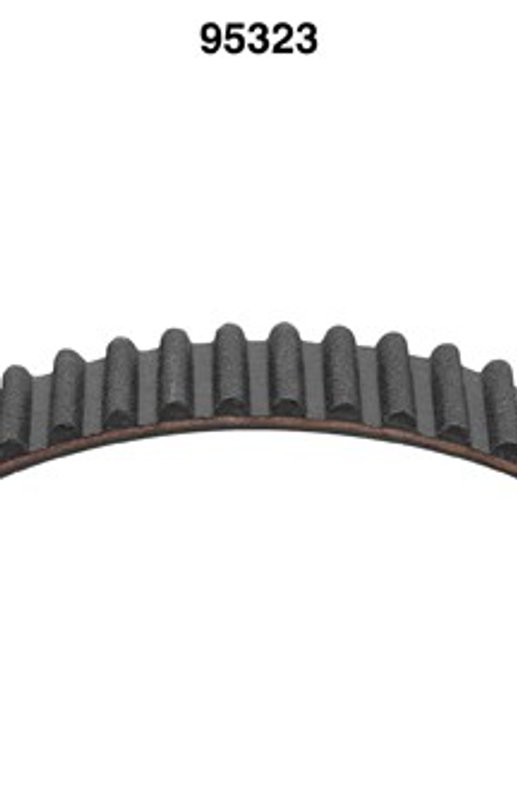

Dayco 95323 Engine Timing Belt - Camshaft
OE Quality 60-Day Returns
Dayco
 Timing Belt

Dayco 95323 Engine Timing Belt - Camshaft

Brand Dayco 95323
Position Camshaft
Yes
Color Black
Construction Hi Temp
Effective Length 81.58
Effective Length 2072
Material Highly Saturated (Acryl) Nitrile
Number of Teeth 259
Timing Marks No
Tooth Pitch .31496
Tooth Pitch 8.000
Tooth Profile Round Tooth
Top Width 1.26
Top Width 32
Product line Timing Belt
Fits Hyundai and Kia · 19 vehicles

Hi-temp construction. Built to handle demanding engine timing conditions.

Round tooth profile. Promotes smooth, precise engagement for consistent timing.

Acryl nitrile material. Resists heat and wear for dependable belt performance.

Cross-references ACDelco TB323, Armormark TB-323 and CARQUEST T323 for the same application. See all 14.

$78.82Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $78.82
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Belt options

Dayco Timing Belt 95323 Overview

The Dayco 95323 timing belt is an engine timing belt built for camshaft synchronization in select Hyundai and Kia applications. It uses highly saturated acrylonitrile material with hi-temp construction, a round tooth profile, and no timing marks for a clean OE-style replacement.

Compatible with 2002-2006 Hyundai and Kia timing belt applications, including Hyundai Santa Fe, Hyundai XG350, Kia Amanti, Kia Sedona, and Kia Sorento. This Dayco Timing Belt line is engineered for precise valve train operation in engines that require an 8.000 mm tooth pitch and 259 teeth.

Key Features

  • Part number: 95323
  • Brand line: Dayco Timing Belt
  • Highly saturated acrylonitrile material for belt durability
  • Hi-temp construction for elevated engine bay conditions
  • Round tooth profile for camshaft timing applications
  • No timing marks
  • Top width: 32 mm (1.26 in.)
  • Effective length: 2072 mm (81.58 in.)
  • 259 teeth with 8.000 mm tooth pitch
  • Black finish

Detailed Description

Dayco 95323 is an engine timing belt designed for camshaft drive service in select Hyundai Santa Fe, Hyundai XG350, Kia Amanti, Kia Sedona, and Kia Sorento models. The belt’s round tooth profile, 8.000 mm pitch, and 259-tooth layout support accurate valve timing, while the hi-temp construction and highly saturated nitrile material are suited to demanding underhood conditions. If you are replacing a worn Hyundai Santa Fe timing belt or servicing a Kia Sorento camshaft belt application, this part number provides the dimensions and construction needed for the listed vehicles.

This part cross-references Gates T323 for the same application.

What It Helps Address

  • Engine timing noise caused by a worn or stretched belt
  • Camshaft timing drift from belt wear
  • Cracking, glazing, or tooth wear on the existing timing belt
  • Service replacement for scheduled timing belt maintenance
  • Timing belt replacement on listed Hyundai and Kia engines

Installation Notes and Tips

  • Verify engine code and vehicle fitment before installation.
  • Follow the service interval listed for your specific vehicle and driving conditions.
  • Inspect related timing components during service, including tensioners and idlers.
  • Confirm belt routing and timing alignment before engine start-up.
  • Because this belt has no timing marks, use the correct service procedure and alignment references for installation.

Quality Assurance

Dayco timing belts are built for engine timing service and are specified with defined material, tooth profile, pitch, and length details for accurate application matching. Part number 95323 is listed for the Hyundai and Kia fitments shown above.

Related reading

This part fits 19 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2006HyundaiSanta Fe3.5LV6CamshaftTiming Belt
2006KiaAmanti——CamshaftTiming Belt
2006KiaSorento——CamshaftRecommended Replacement every 40,000 miles for Severe Driving Conditions and every 60,000 miles for Normal Driving Conditions.; Timing Belt
2005HyundaiSanta Fe3.5LV6CamshaftTiming Belt
2005HyundaiXG350——CamshaftTiming Belt
2005KiaAmanti——CamshaftTiming Belt
2005KiaSedona——CamshaftTiming Belt
2005KiaSorento——CamshaftRecommended Replacement every 40,000 miles for Severe Driving Conditions and every 60,000 miles for Normal Driving Conditions.; Timing Belt
2004HyundaiSanta Fe3.5LV6CamshaftTiming Belt
2004HyundaiXG350——CamshaftTiming Belt
2004KiaAmanti——CamshaftTiming Belt
2004KiaSedona——CamshaftTiming Belt
2004KiaSorento——CamshaftTiming Belt
2003HyundaiSanta Fe3.5LV6CamshaftTiming Belt
2003HyundaiXG350——CamshaftTiming Belt
2003KiaSedona——CamshaftRecommended Replacement 105,000 miles; Recommended Replacement 60,000 miles, Federal; with California Emissions; Timing Belt
2003KiaSorento——CamshaftRecommended Replacement 105,000 miles; Recommended Replacement 60,000 miles, Federal; with California Emissions; Timing Belt
2002HyundaiXG350——CamshaftTiming Belt
2002KiaSedona——CamshaftRecommended Replacement 105,000 miles; Recommended Replacement 60,000 miles, Federal; with California Emissions; Timing Belt
Directly replaces or cross-references 14 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — TB323Armormark — TB-323CARQUEST — T323Cloyes — B323Continental-ContiTech — TB323Duralast — 95323Freshstart — CD323Gates — T323Goodyear — 40323Hyundai — 24312-39500Hyundai — 24312-39800Hyundai — 24312-39810Kia — 24312-39800NAPA — 250323
