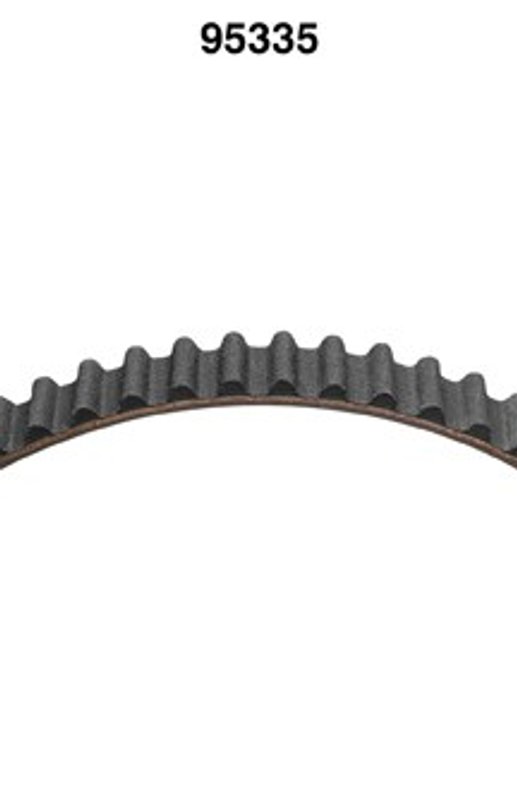

Dayco 95335 Engine Timing Belt - Camshaft

Dayco 95335 Timing Belt for Camshaft Applications

The Dayco 95335 timing belt is an engine timing belt built for camshaft drive applications in select Chevrolet, Pontiac, and Suzuki vehicles. It uses highly saturated acrylonitrile material, a black finish, and a round-tooth profile with hi-temp reinforced teeth for consistent engagement in the timing system.

Dayco’s Timing Belt line focuses on precise tooth geometry and durable construction for engine valve train service. This belt measures 25 mm top width, 127 teeth, 9.525 mm tooth pitch, and 1210 mm effective length for the specified applications.

Key Features

• Brand: Dayco Timing Belt
• Part number: 95335
• Material: Highly Saturated (Acryl) Nitrile
• Construction: Hi Temp/Reinforced Teeth
• Tooth profile: Round Tooth
• Number of teeth: 127
• Tooth pitch: 9.525 mm (.37500 in)
• Top width: 25 mm (0.99 in)
• Effective length: 1210 mm (47.64 in)
• Color: Black
• No timing marks

Detailed Description

Dayco 95335 is an engine timing belt for camshaft-driven valve train systems in 2004-2008 Chevrolet Aveo, 2006-2008 Chevrolet Aveo5, 2005-2008 Pontiac Wave, 2005-2007 Pontiac Wave5, and 2004-2008 Suzuki Swift+. It is engineered with reinforced teeth and a round-tooth design to maintain tooth engagement under elevated operating temperatures. This part number, 95335, is also cross-referenced with ACDelco TB335 for the same application.

Use this timing belt when servicing the timing system on Chevrolet Aveo and Aveo5, Pontiac Wave and Wave5, or Suzuki Swift+ models that call for this exact belt specification. The dimensions, tooth count, and pitch are critical for proper camshaft timing and engine synchronization.

What It Is Used For

• Replacing a worn or age-hardened timing belt
• Restoring correct camshaft timing after belt service
• Addressing belt noise caused by wear or tooth damage
• Correcting timing concerns related to stretched or cracked belt material
• Servicing timing components on Aveo, Aveo5, Wave, Wave5, and Swift+ applications

Installation Notes and Tips

Verify the belt tooth count, pitch, width, and effective length against the original part before installation. Confirm engine timing marks on the engine components, since this belt itself does not include timing marks. Proper camshaft timing alignment is essential during installation on Chevrolet Aveo, Pontiac Wave, and Suzuki Swift+ applications.

Quality Assurance

Dayco timing belts are built for engine timing service with reinforced tooth construction and application-specific sizing. Confirm fitment by year, make, model, and engine timing specification before installation.
