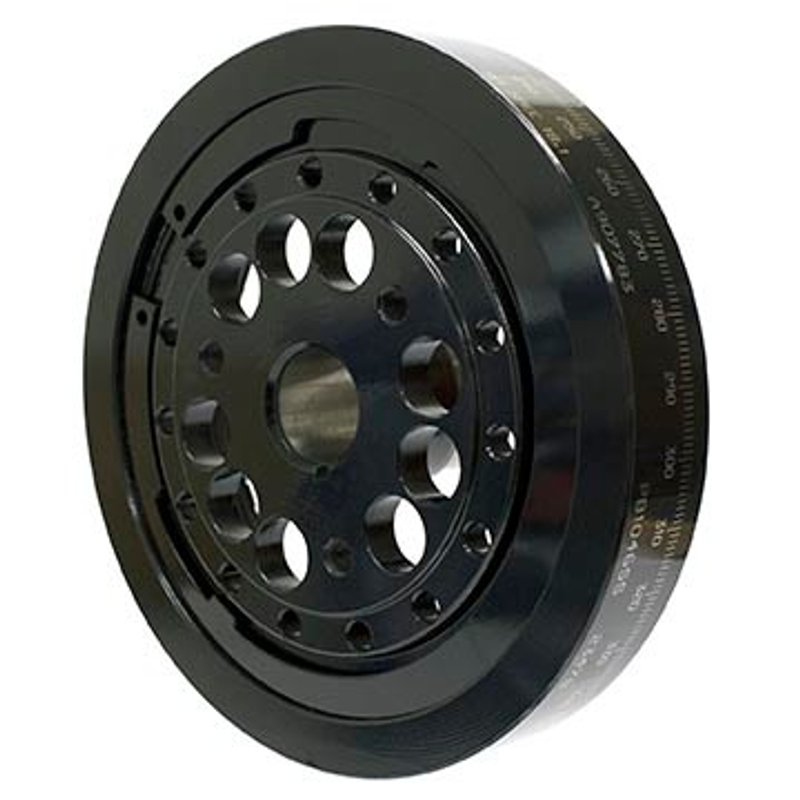

Dayco PB1046SS Engine Harmonic Balancer

Overview of Dayco Race Performance Balancer PB1046SS

The Dayco Race Performance Balancer PB1046SS is engineered for Chevrolet and GMC vehicles, including models like the Camaro, Corvette, and Silverado series. Designed as an engine harmonic balancer, it helps maintain engine stability and reduce vibrations for improved performance.

• Compatible with Chevrolet and GMC trucks, SUVs, and classic cars
• Neutral counterweight balance with no counterweights
• Steel outer ring construction for durability
• Three bolt hole design for secure mounting
• Includes timing marks for precise engine tuning
• Overall outside diameter of 7.953 inches (202.00 mm)
• Crank bore diameter of 1.245 inches (31.60 mm)
• Overall width of 2.347 inches (59.60 mm)

Detailed Product Description

The Dayco Race Performance Balancer PB1046SS is a precision-engineered engine harmonic balancer designed to fit a wide range of Chevrolet and GMC vehicles, including the Bel Air, Blazer, C10, Camaro, Caprice, Corvette, and many others. This balancer features a neutral counterweight balance, meaning it does not include additional counterweights, which is ideal for race or performance applications where custom balancing is preferred. The steel outer ring enhances durability and resistance to wear, while the three bolt hole configuration ensures a secure fit on compatible crankshafts.

With an overall outside diameter of 7.953 inches and a crank bore diameter of 1.245 inches, this balancer is designed to match specific engine requirements. The inclusion of timing marks allows for accurate ignition timing adjustments, critical for performance tuning. Note that this part does not include a crank trigger or exciter plate, hardware, or installation instructions.

About the Race Performance Balancer Product Line

The Dayco Race Performance Balancer line focuses on delivering reliable harmonic balancers tailored for performance and racing applications. These balancers are designed to provide neutral balance without integrated counterweights, allowing for custom engine tuning and balancing. The PB1046SS model exemplifies this approach by offering a durable steel construction and precise fitment for Chevrolet and GMC engines, supporting enhanced engine stability under demanding conditions.

Common Applications and Problem Solving

• Reduces engine vibrations that can cause premature wear
• Helps maintain crankshaft stability during high RPM operation
• Supports accurate ignition timing with integrated timing marks
• Prevents harmonic distortion that can lead to engine damage
• Facilitates custom balancing for race-prepared engines

Installation Notes and Tips

• Ensure compatibility with your specific Chevrolet or GMC model before installation
• Use proper torque specifications for the three bolt holes to secure the balancer
• Verify crank bore diameter matches engine crankshaft (1.245 inches)
• Timing marks should be aligned carefully during ignition timing setup
• Hardware and installation instructions are not included; consult a professional if needed

Quality Assurance and Warranty

Dayco manufactures the Race Performance Balancer PB1046SS to meet strict quality standards, using durable steel materials and precise engineering. While specific warranty details are not provided, Dayco products typically undergo rigorous testing to ensure reliability and performance in demanding automotive environments.
