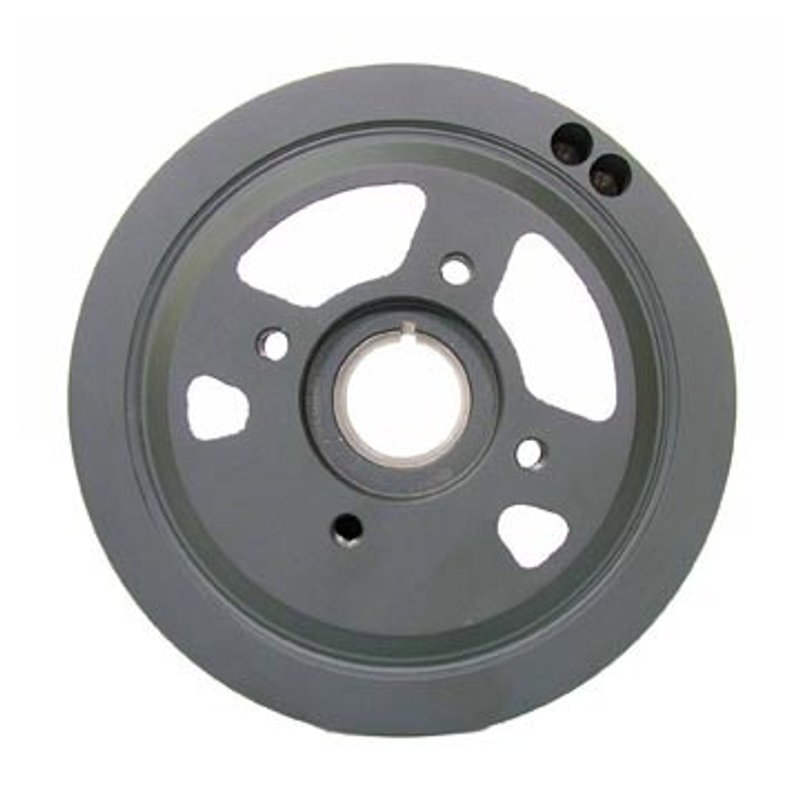

Dayco PB1102N Engine Harmonic Balancer

Dayco PB1102N Premium OEM Replacement Balancer

The Dayco PB1102N engine harmonic balancer is a Premium OEM Replacement Balancer built for a wide range of Chevrolet and GMC trucks, vans, SUVs, and chassis applications from 1982-1993. It uses a hub-weighted counterweight balance and a cast iron outer ring to help maintain crankshaft damping and timing stability in demanding V8 applications.

Key Features

• Part number: PB1102N
• Premium OEM Replacement Balancer from Dayco
• Hub weighted counterweight balance
• Cast iron outer ring material
• Overall outside diameter: 7.993 in. (203.00 mm)
• Overall width: 3.150 in. (80.00 mm)
• Ring width: 1.319 in. (33.48 mm)
• Crank bore: 1.601 in. (40.65 mm)
• Nose outside diameter: 2.334 in. (59.27 mm)
• 4 bolt holes
• Timing marks included
• No integrated pulleys

Product Details

Dayco’s Premium OEM Replacement Balancer line focuses on direct-fit engine vibration control for original-equipment-style service work. The PB1102N harmonic balancer is specified with a hub-weighted design, no crank trigger/exciter plate, and no woodruff key included. That makes it a straightforward replacement choice for engines that use timing marks and a 4-bolt balancer configuration. This part cross-references ATP 102059 and Dorman 594-128 for the same application.

Vehicle Fitment

• Fits 1988-1993 Chevrolet C1500, N/A
• Fits 1988-1993 Chevrolet C2500, N/A
• Fits 1988-1993 Chevrolet C3500, N/A
• Fits 1983-1993 Chevrolet G20, N/A
• Fits 1983-1993 Chevrolet G30, N/A
• Fits 1988-1993 Chevrolet K1500, N/A
• Fits 1988-1993 Chevrolet K2500, N/A
• Fits 1988-1993 Chevrolet K3500, N/A
• Fits 1982-1993 Chevrolet P30, N/A
• Fits 1988-1993 GMC C1500, N/A
• Fits 1982-1986 GMC C1500, N/A
• Fits 1988-1993 GMC C2500, N/A
• Fits 1982-1986 GMC C2500, N/A
• Fits 1988-1993 GMC C3500, N/A
• Fits 1982-1986 GMC C3500, N/A
• Fits 1983-1993 GMC G2500, N/A
• Fits 1983-1993 GMC G3500, N/A
• Fits 1988-1993 GMC K1500, N/A
• Fits 1982-1986 GMC K1500, N/A
• Fits 1988-1993 GMC K2500, N/A
• Fits 1982-1986 GMC K2500, N/A
• Fits 1988-1993 GMC K3500, N/A
• Fits 1982-1986 GMC K3500, N/A
• Fits 1982-1993 GMC P3500, N/A
• Fits 1987-1991 Chevrolet Blazer, N/A
• Fits 1989-1991 Chevrolet R1500 Suburban, N/A
• Fits 1989-1991 Chevrolet R2500 Suburban, N/A
• Fits 1989-1991 Chevrolet R3500, N/A
• Fits 1989-1991 Chevrolet V1500 Suburban, N/A
• Fits 1989-1991 Chevrolet V2500 Suburban, N/A
• Fits 1989-1991 Chevrolet V3500, N/A
• Fits 1982-1991 GMC Jimmy, N/A
• Fits 1987-1991 GMC R1500 Suburban, N/A
• Fits 1987-1991 GMC R2500 Suburban, N/A
• Fits 1987-1991 GMC R3500, N/A
• Fits 1987-1991 GMC V1500 Suburban, N/A
• Fits 1987-1991 GMC V2500 Suburban, N/A
• Fits 1987-1991 GMC V3500, N/A
• Fits 1982-1989 Chevrolet P20, N/A
• Fits 1989 Chevrolet R2500, N/A
• Fits 1982-1989 GMC P2500, N/A
• Fits 1987-1989 GMC R2500, N/A
• Fits 1987-1988 Chevrolet R10 Suburban, N/A
• Fits 1987-1988 Chevrolet R20, N/A
• Fits 1987-1988 Chevrolet R20 Suburban, N/A
• Fits 1987-1988 Chevrolet R30, N/A
• Fits 1987-1988 Chevrolet V10 Suburban, N/A
• Fits 1987-1988 Chevrolet V20 Suburban, N/A
• Fits 1987-1988 Chevrolet V30, N/A
• Fits 1987 Chevrolet R10, N/A
• Fits 1987 Chevrolet V10, N/A
• Fits 1987 Chevrolet V20, N/A
• Fits 1987 GMC R1500, N/A
• Fits 1987 GMC V1500, N/A
• Fits 1987 GMC V2500, N/A
• Fits 1982-1986 Chevrolet C10, N/A
• Fits 1982-1986 Chevrolet C10 Suburban, N/A
• Fits 1982-1986 Chevrolet C20, N/A
• Fits 1982-1986 Chevrolet C20 Suburban, N/A
• Fits 1982-1986 Chevrolet C30, N/A
• Fits 1982-1986 Chevrolet K10, N/A
• Fits 1982-1986 Chevrolet K10 Suburban, N/A
• Fits 1982-1986 Chevrolet K20, N/A
• Fits 1982-1986 Chevrolet K20 Suburban, N/A
• Fits 1982-1986 Chevrolet K30, N/A
• Fits 1982-1986 Chevrolet K5 Blazer, N/A
• Fits 1982-1986 GMC C1500 Suburban, N/A
• Fits 1982-1986 GMC C2500 Suburban, N/A
• Fits 1982-1986 GMC K1500 Suburban, N/A
• Fits 1982-1986 GMC K2500 Suburban, N/A

Common Uses

• Replacing a worn harmonic balancer on Chevrolet C1500, C2500, or C3500 trucks
• Restoring crankshaft vibration damping on GMC K1500, K2500, or K3500 applications
• Addressing timing mark visibility issues during service on GM truck and van engines
• Correcting balancer wear on Blazer, Jimmy, Suburban, and P-series chassis vehicles
• Servicing engines that require a 4-bolt, hub-weighted balancer with no integrated pulley

Installation Notes

Verify crank bore, nose outside diameter, bolt hole quantity, and overall dimensions before installation. This balancer does not include hardware, installation instructions, a crank trigger/exciter plate, or a woodruff key. Confirm timing mark alignment and pulley arrangement against the original part before assembly.

Quality Assurance

Dayco’s Premium OEM Replacement Balancer line is built for OE-style service replacement, with application-specific dimensions and timing-mark provision for the listed GM vehicles. The PB1102N is engineered to match the fitment and configuration requirements shown above.
