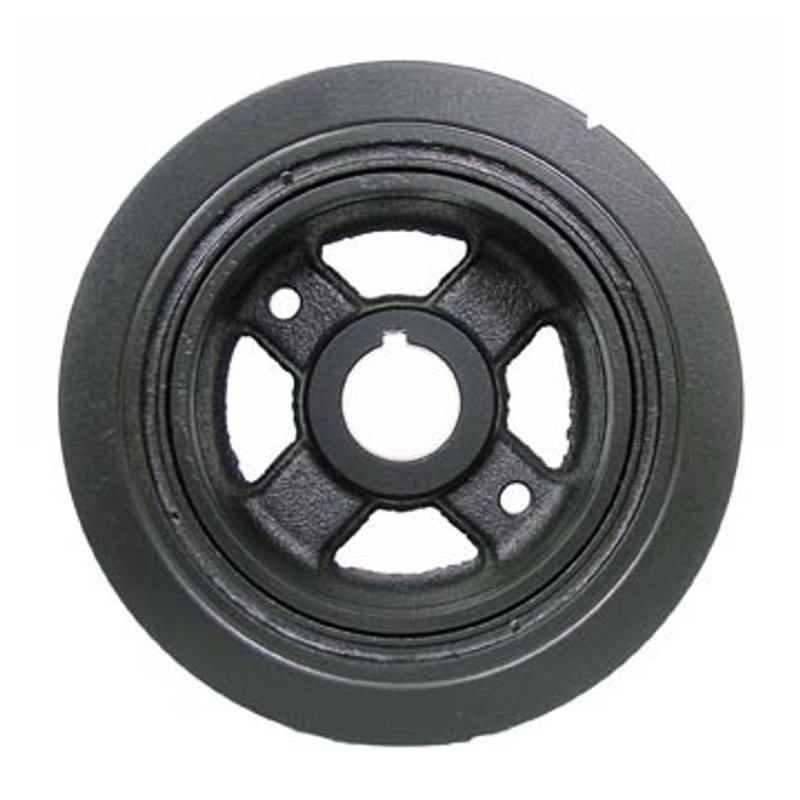

Dayco PB1153N Engine Harmonic Balancer

Overview of Dayco Premium OEM Replacement Balancer PB1153N

The Dayco Premium OEM Replacement Balancer PB1153N is engineered for reliable performance in select Geo and Toyota vehicles. Designed specifically for models like the Celica, Corolla, and Prizm, this engine harmonic balancer ensures proper crankshaft vibration dampening and pulley operation.

• Compatible with Geo Celica, Toyota Corolla, and Toyota Prizm
• Part number PB1153N for precise identification
• Includes two integrated serpentine pulleys with 5 and 4 grooves respectively
• Constructed with a cast iron outer ring for durability
• Neutral counterweight balance with no additional counterweights
• Overall outside diameter of 135 mm (5.315 inches) and width of 48.60 mm (1.914 inches)
• Features timing marks for accurate engine timing
• Does not include hardware or installation instructions

Detailed Product Features and Specifications

This Dayco engine harmonic balancer features a crank bore diameter of 0.985 inches (25.01 mm) and a nose outside diameter of 1.457 inches (37.00 mm). It is designed with two bolt holes and includes two integrated serpentine pulleys, one with 5 grooves and the other with 4 grooves, both measuring 130 mm (5.119 inches) in outside diameter. The outer ring is made from cast iron, providing strength and resistance to wear. The balancer has a neutral counterweight balance, meaning it does not include additional counterweights, which is suitable for the specified engine configurations. Timing marks are present to assist with precise engine timing during installation.

About the Premium OEM Replacement Balancer Product Line

The Dayco Premium OEM Replacement Balancer line is designed to meet or exceed original equipment manufacturer specifications. This product line focuses on delivering reliable fitment and performance for engine harmonic balancers, ensuring compatibility with factory components. The PB1153N model is part of this line, offering a direct replacement solution for specific Geo and Toyota vehicles without compromising engine balance or pulley function.

Common Applications and Problem Resolution

• Reduces crankshaft vibration to prevent engine damage
• Restores proper serpentine belt alignment and tension
• Eliminates noise caused by worn or damaged balancers
• Prevents premature wear of engine components linked to harmonic imbalance
• Supports accurate engine timing with integrated timing marks

Installation Notes and Tips

Installation of the Dayco PB1153N harmonic balancer requires proper tools and mechanical knowledge. Note that this part does not include hardware or installation instructions, so refer to the vehicle’s service manual for torque specifications and installation procedures. Ensure the crank bore and bolt holes align correctly with the engine crankshaft. Use the timing marks on the balancer to verify correct positioning during installation. It is recommended to inspect the serpentine belts and pulleys for wear during replacement.

Quality Assurance and Warranty

Dayco’s Premium OEM Replacement Balancer products are manufactured to meet stringent quality standards. While specific warranty details for part number PB1153N are not provided here, Dayco typically offers limited warranties covering defects in materials and workmanship. For warranty information, consult the product packaging or Dayco’s official resources.
