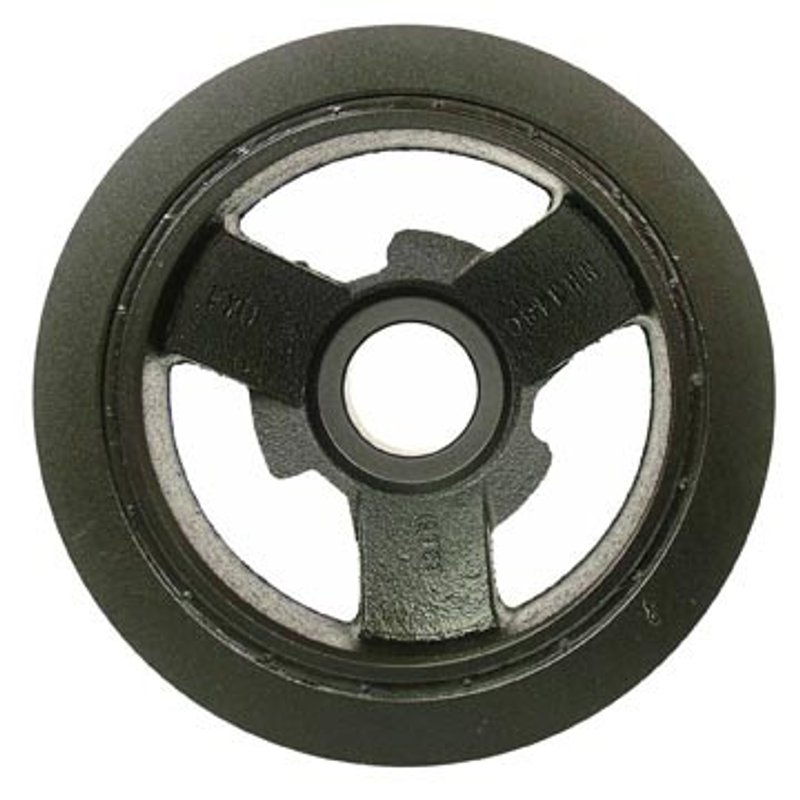

Dayco PB1480ST Engine Harmonic Balancer

Overview of Dayco Street Performance Balancer PB1480ST

The Dayco Street Performance Balancer PB1480ST is engineered for Chevrolet Camaro, Pontiac Firebird, and GTO engines requiring precise harmonic balancing. Designed without counterweights, this balancer offers neutral balance characteristics to maintain engine smoothness and reliability.

• Compatible with Chevrolet Camaro, Pontiac Firebird, and GTO models
• Neutral counterweight balance with no added counterweights
• Cast iron outer ring for durability and wear resistance
• Two integrated serpentine pulleys with 4 and 6 grooves respectively
• Overall outside diameter of 7.52 inches and width of 3.654 inches
• Includes timing marks for accurate engine timing adjustments
• Crank bore diameter of 1.481 inches (37.60 mm)
• Does not include crank trigger/exciter plate or installation hardware

Details on the Street Performance Balancer Product Line

The Street Performance Balancer line by Dayco focuses on delivering reliable harmonic balancers designed for street-driven performance vehicles. This product line emphasizes durability and precise balance without additional counterweights, making it suitable for naturally aspirated and mildly modified engines. The PB1480ST model fits within this line by providing a neutral balance and integrated serpentine pulleys to support accessory drive systems on Chevrolet Camaro, Pontiac Firebird, and GTO engines.

Technical Specifications and Features

The PB1480ST harmonic balancer features a cast iron outer ring with a ring width of 2.225 inches (56.49 mm), ensuring long-lasting performance under typical street driving conditions. It includes two serpentine pulleys: the first pulley has 4 grooves with an outside diameter of approximately 7.08 inches (179.9 mm), and the second pulley has 6 grooves with an outside diameter of about 7.36 inches (187 mm). The balancer’s overall outside diameter measures 7.52 inches (191 mm), and it has a width of 3.654 inches (92.8 mm). The crank bore diameter is 1.481 inches (37.60 mm), designed to fit specific crankshafts on compatible vehicles. Timing marks are included to assist with precise engine timing setup.

Applications and Problem Solving

• Reduces engine vibration by providing harmonic balancing for Chevrolet Camaro, Pontiac Firebird, and GTO engines
• Supports accessory drive systems with integrated serpentine pulleys
• Maintains engine timing accuracy with included timing marks
• Neutral balance design prevents imbalance issues in naturally aspirated engines
• Cast iron construction resists wear and extends service life

Installation Notes and Tips

The Dayco PB1480ST harmonic balancer does not include installation hardware or instructions, so ensure you have the correct tools and follow manufacturer guidelines for removal and installation. Verify crank bore dimensions and pulley alignment before installation. Proper torque specifications should be followed to avoid damage to the crankshaft or balancer. The absence of a crank trigger/exciter plate means this balancer is intended for engines without electronic ignition triggers mounted on the balancer.

Quality Assurance and Warranty

Dayco manufactures the Street Performance Balancer PB1480ST to meet OEM standards for fit and function. The cast iron outer ring and precision machining contribute to consistent performance and durability. Warranty coverage details should be confirmed with the original product documentation or authorized distributors.
