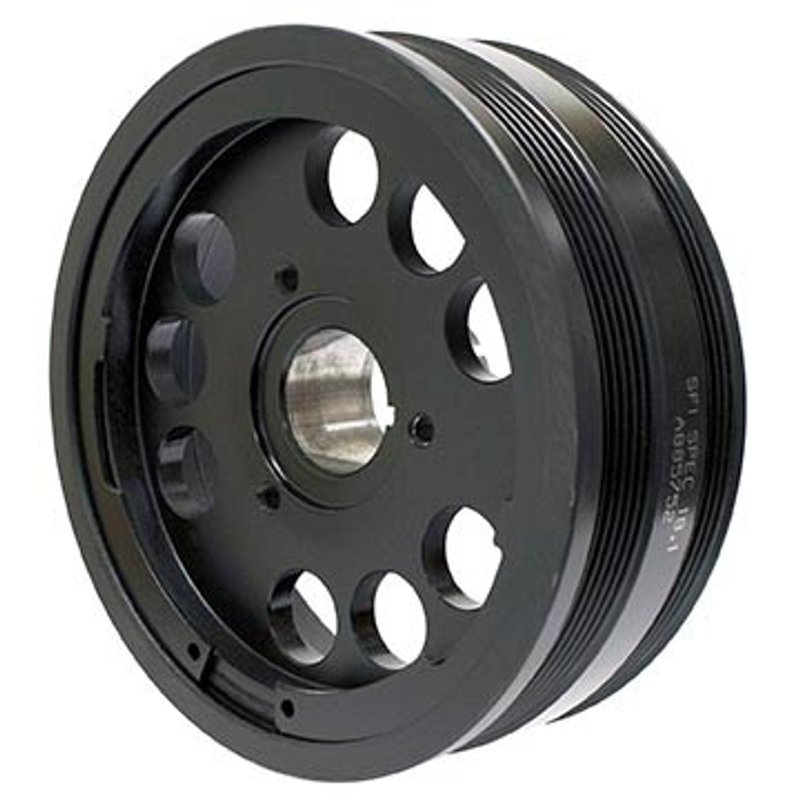

Dayco PB1503SS Engine Harmonic Balancer

Overview of Dayco Race Performance Balancer PB1503SS

The Dayco Race Performance Balancer PB1503SS is engineered for Chevrolet Camaro and Corvette engines requiring precise harmonic balancing. Designed without counterweights, this balancer ensures neutral balance and integrates dual serpentine pulleys for efficient accessory drive.

• Compatible with Chevrolet Camaro and Corvette models
• Neutral counterweight balance with no added counterweights
• Three bolt hole configuration for secure mounting
• Two integrated serpentine pulleys with 4 and 8 grooves respectively
• Steel outer ring construction for durability
• Includes timing marks for accurate engine tuning
• Overall outside diameter of 7.481 inches (190.00 mm)
• Crank bore diameter of 1.481 inches (37.60 mm)

Detailed Product Description

The Dayco Race Performance Balancer PB1503SS is a precision-engineered engine harmonic balancer designed specifically for Chevrolet Camaro and Corvette vehicles. Featuring a neutral counterweight balance, this balancer avoids the addition of any counterweights, maintaining the engine's natural balance characteristics. The balancer includes two integrated serpentine pulleys—one with 4 grooves and the other with 8 grooves—both measuring 7.323 inches (186.00 mm) in diameter, allowing for efficient accessory belt routing. The steel outer ring enhances durability and resistance to wear, while the inclusion of timing marks supports accurate ignition and engine timing adjustments. The balancer’s overall width is 2.623 inches (66.60 mm), and it mounts securely with a three-bolt hole pattern. The crank bore diameter is precisely 1.481 inches (37.60 mm), ensuring a proper fit on compatible crankshafts.

About the Race Performance Balancer Product Line

The Race Performance Balancer line by Dayco is designed to meet the demands of high-performance and racing applications. This product line focuses on delivering reliable harmonic balancing with features tailored for race engines, such as neutral counterweight balance and integrated pulley configurations. The PB1503SS model exemplifies this approach by combining durability with precise fitment for Chevrolet Camaro and Corvette engines, supporting optimal engine performance under demanding conditions.

Common Applications and Problem Solving

• Reduces engine vibration caused by crankshaft torsional forces
• Prevents premature wear of engine components linked to harmonic imbalance
• Supports proper accessory belt alignment and tension with integrated pulleys
• Facilitates accurate engine timing adjustments with visible timing marks
• Ensures secure mounting with a three-bolt hole design

Installation Notes and Tips

• Verify crank bore diameter (1.481 inches) matches engine specifications before installation
• Ensure the three-bolt hole pattern aligns correctly with the crankshaft flange
• Use proper torque specifications when securing the balancer to avoid damage
• Note that hardware and installation instructions are not included with this part
• Check pulley alignment and belt routing after installation for optimal performance

Quality Assurance and Warranty

Dayco manufactures the Race Performance Balancer PB1503SS to meet stringent quality standards for durability and fitment. The steel outer ring construction provides resistance to wear and deformation under high-stress conditions. While specific warranty details are not provided, Dayco products typically adhere to industry standards for performance parts. It is recommended to consult Dayco or authorized distributors for warranty information related to this part.
