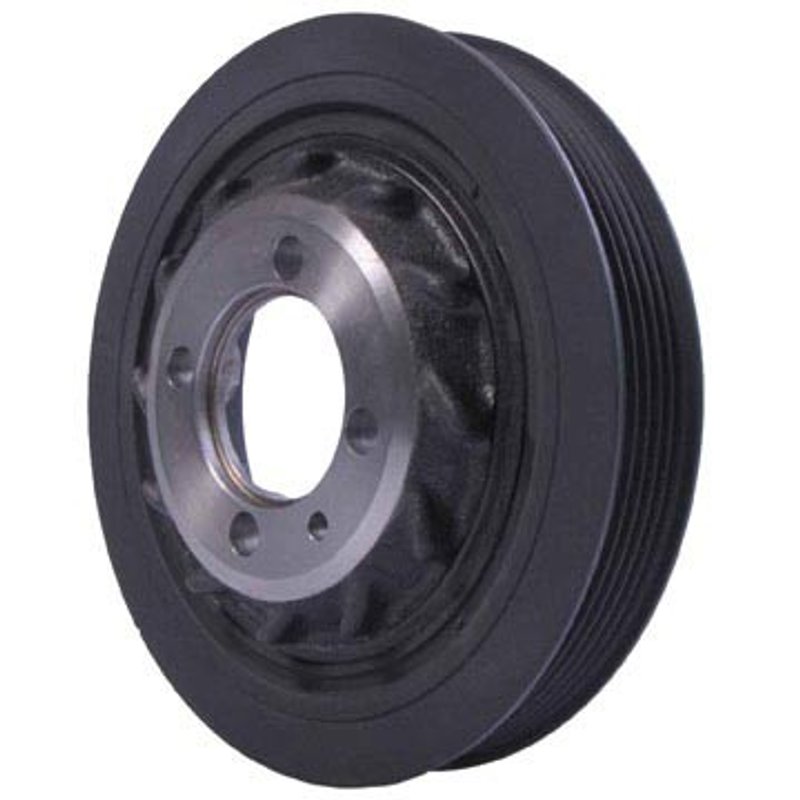

Dayco PB1592N Engine Harmonic Balancer
| Brand | Dayco PB1592N |
|---|---|
| Counterweight Balance | Neutral, no counterweight |
| Crank Bore | 1.735 |
| Crank Bore | 44.05 |
| Crank Trigger/Exciter Plate | No |
| Hardware Included | No |
| Installation Instructions Included | No |
| Nose Outside Diameter | 0 |
| Nose Outside Diameter | 0.0 |
| Number of Integrated Pulleys | 1 |
| Outer Ring Material | Cast Iron |
| Overall Outside Diameter | 6.142 |
| Overall Outside Diameter | 156 |
| Overall Width | 1.504 |
| Overall Width | 38.2 |
| Pulley 1 Number Of Grooves | 6 |
| Pulley 1 Outside Diameter | 5.906 |
| Pulley 1 Outside Diameter | 150 |
| Pulley 1 Type | Serpentine |
| Ring Width | 1.032 |
| Ring Width | 26.2 |
| Timing Marks | Yes |
| Woodruff Key Included | No |
| Product line | Premium OEM Replacement Balancer |
| Fits | Mitsubishi · 1 vehicle |
Premium OEM replacement. Built as a direct-fit harmonic balancer for straightforward installation.
Cast iron ring. Durable construction helps manage engine vibration and rotation.
Serpentine pulley. Integrated 6-groove design supports accessory belt drive.
Dayco PB1592N Harmonic Balancer for 2003 Mitsubishi Outlander
The Dayco PB1592N is a premium OEM replacement harmonic balancer built for the 2003 Mitsubishi Outlander. It is engineered with a neutral balance design and a cast iron outer ring to support crankshaft damping and timing accuracy in a direct-fit engine application.
Key Features
- Fits 2003 Mitsubishi Outlander, N/A
- Dayco Premium OEM Replacement Balancer line for OE-style service replacement
- Neutral balance design with no counterweight
- Cast iron outer ring for durable engine service
- Integrated serpentine pulley with 6 grooves
- Timing marks included for setup and service reference
- Crank bore: 1.735 in. / 44.05 mm
- Overall outside diameter: 6.142 in. / 156 mm
- Overall width: 1.504 in. / 38.2 mm
Detailed Description
Dayco PB1592N is an engine harmonic balancer for the 2003 Mitsubishi Outlander, built to replace the original balancer with OE-style dimensions and function. The Premium OEM Replacement Balancer line focuses on direct replacement fitment, and this unit includes a single integrated serpentine pulley, four bolt holes, and timing marks to support accurate engine service. The cast iron outer ring and neutral balance configuration help maintain crankshaft damping characteristics in the intended application. If you are searching for a Dayco PB1592N harmonic balancer for 2003 Mitsubishi Outlander service, this part matches the listed vehicle fitment and core specifications.
Common Issues This Part Addresses
- Crankshaft vibration caused by a worn or separated balancer
- Timing mark visibility problems during engine service
- Belt drive noise related to a damaged pulley surface
- Improper crankshaft damping from a failed harmonic balancer
- Fitment issues when replacing an OE-style balancer on a 2003 Mitsubishi Outlander
Installation Notes and Tips
Verify crank bore, overall diameter, and pulley groove count before installation. This Dayco PB1592N harmonic balancer does not include hardware, installation instructions, or a Woodruff key, so reuse or source the correct service components as required by the vehicle. Confirm timing mark alignment during installation and inspect the serpentine belt path, pulley condition, and crankshaft snout for wear before final assembly.
Quality Assurance
Dayco’s Premium OEM Replacement Balancer line is built for OE-style replacement service, with dimensions and features matched to the listed application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Mitsubishi | Outlander | N/A | Premium OEM Replacement Balancer |
