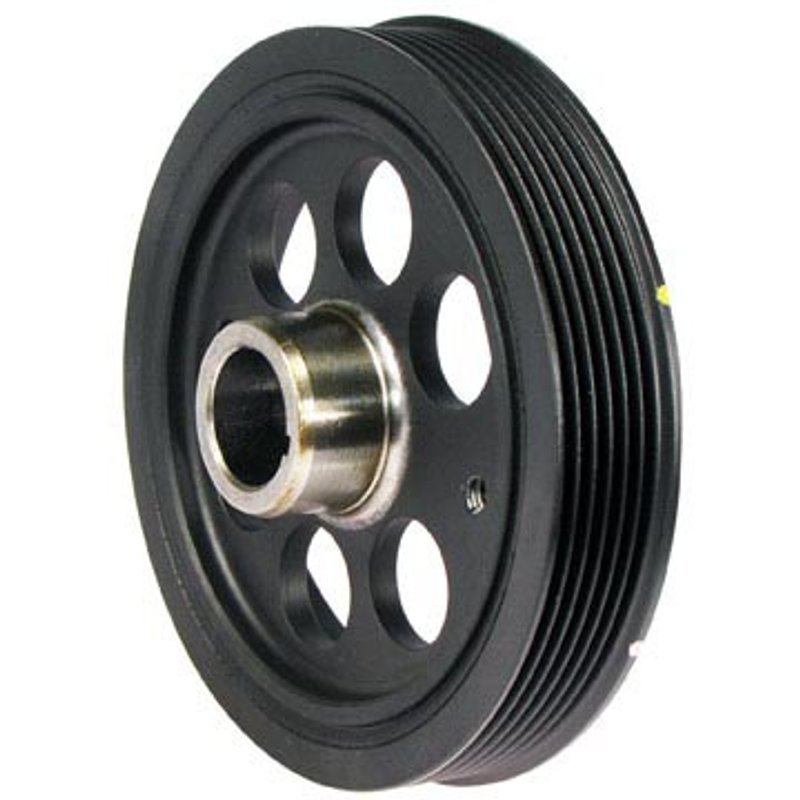

Dayco PB1653N Engine Harmonic Balancer

Overview of Dayco Premium OEM Replacement Balancer PB1653N

The Dayco Premium OEM Replacement Balancer PB1653N is engineered for reliable performance in select Toyota, Lexus, and Scion vehicles. Designed as an engine harmonic balancer, it helps maintain engine stability and reduce vibrations for smoother operation.

• Compatible with Toyota Corolla, Prius, Matrix, and other models
• Neutral counterweight balance with no additional counterweights
• Cast iron outer ring for durability
• Includes one integrated serpentine pulley with 6 grooves
• Overall outside diameter of 150 mm (5.906 inches)
• Two bolt holes for secure mounting
• Timing marks included for precise installation

Product Line Details: Premium OEM Replacement Balancer

The Premium OEM Replacement Balancer line by Dayco focuses on delivering components that meet original equipment specifications. This ensures compatibility and performance consistency with factory-installed parts. The PB1653N model maintains these standards, providing a direct replacement for harmonic balancers in compatible vehicles without compromising engine balance or function.

Technical Specifications and Features

This engine harmonic balancer features a neutral counterweight balance, meaning it does not include additional counterweights, which suits engines designed for this configuration. The crank bore measures 1.025 inches (26.01 mm), and the balancer has a nose outside diameter of 1.497 inches (38 mm). The overall width is 1.654 inches (42 mm), with a ring width of 1.052 inches (26.70 mm). The cast iron outer ring enhances durability and wear resistance. The integrated serpentine pulley has six grooves, supporting accessory belt routing. Timing marks are present to assist with accurate engine timing during installation.

Compatible Vehicles and Applications

• Toyota Corolla, Corolla iM, Matrix
• Toyota Prius, Prius AWD-e, Prius Plug-In, Prius Prime, Prius V
• Lexus CT200h
• Scion C-HR, iM, xD

This balancer is designed to replace the original harmonic balancer in these models, helping to reduce engine vibrations and maintain crankshaft stability.

Common Issues Addressed by the PB1653N Balancer

• Engine vibration and noise caused by worn or damaged harmonic balancers
• Crankshaft pulley misalignment affecting belt performance
• Timing mark wear or absence complicating engine timing adjustments
• Failure of integrated pulley grooves leading to belt slippage
• Corrosion or damage to the outer ring impacting balancer integrity

Installation Notes and Tips

The PB1653N does not include hardware or installation instructions, so it is recommended to use OEM or equivalent fasteners and follow vehicle-specific service manuals. Ensure the crank bore and bolt holes align correctly during installation. Use the timing marks on the balancer to verify proper engine timing. Professional installation is advised to maintain engine balance and avoid damage.

Quality Assurance and Warranty

Dayco's Premium OEM Replacement Balancer line adheres to strict manufacturing standards to meet OEM specifications. While specific warranty details are not provided here, Dayco products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
