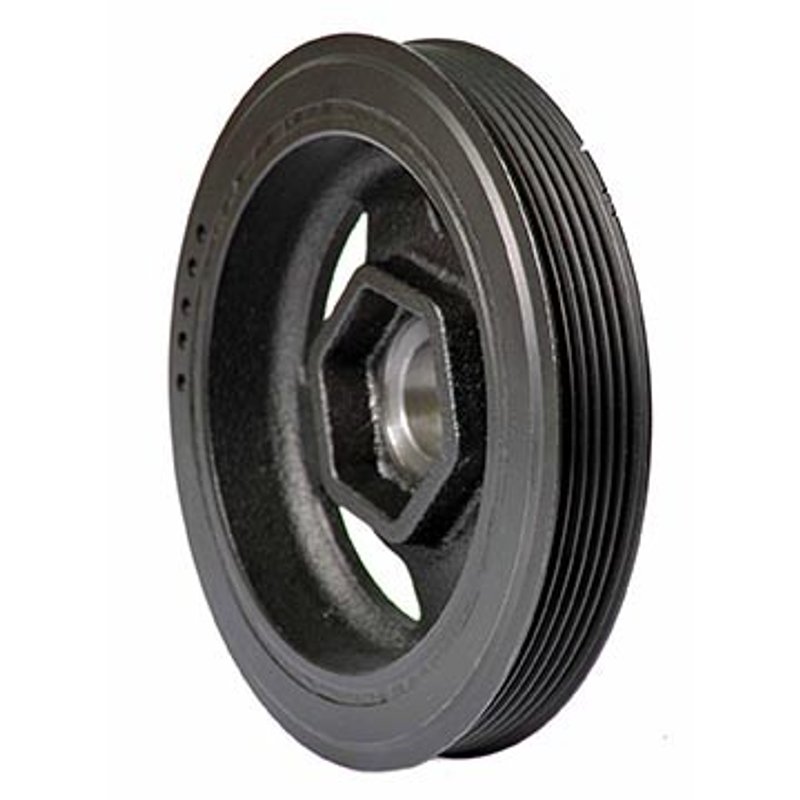

Dayco PB1713N Engine Harmonic Balancer

Dayco Premium OEM Replacement Balancer PB1713N

The Dayco PB1713N engine harmonic balancer is a premium OEM replacement for select Honda and Acura V6 applications. It is built with a cast iron outer ring, neutral balance, and integrated serpentine pulley design to match the original engine layout.

Key Features

• Brand: Dayco Premium OEM Replacement Balancer
• Part number: PB1713N
• Engine harmonic balancer with neutral, no-counterweight balance
• Cast iron outer ring for OE-style construction
• One integrated pulley with 6 grooves and serpentine belt profile
• Timing marks included for service alignment
• Crank bore: 30.00 mm (1.182 in.)
• Overall outside diameter: 180.00 mm (7.087 in.)
• Overall width: 45.50 mm (1.792 in.)

Product Details

The Dayco Premium OEM Replacement Balancer line is aimed at direct-fit engine service parts that follow original equipment dimensions and function. PB1713N uses a neutral counterweight balance, a cast iron outer ring, and a single integrated serpentine pulley to support proper crankshaft damping and belt drive operation. It also includes timing marks, which is important for service work on Honda Odyssey, Honda Pilot, Honda Ridgeline, Acura MDX, and other listed applications. This part number, PB1713N, is listed for a wide range of 2007-2026 Honda and Acura vehicles with V6 engine configurations.

What It Helps Address

• Crankshaft vibration or harmonic imbalance
• Worn, cracked, or delaminated balancer components
• Belt drive noise from a damaged pulley surface
• Timing reference issues during engine service
• Drive belt tracking problems related to balancer wear

Installation Notes

• Confirm crank bore, pulley groove count, and overall dimensions before installation.
• Use the timing marks during alignment and service procedures.
• Hardware is not included.
• Installation instructions are not included.
• Some listed applications note to see instruction sheets; verify vehicle-specific service steps before beginning work.

Fitment

• Fits 2018-2026 Honda Odyssey, N/A
• Fits 2019-2025 Honda Passport, N/A
• Fits 2017-2025 Honda Ridgeline, N/A
• Fits 2016-2022 Honda Pilot, N/A
• Fits 2014-2020 Acura MDX, N/A
• Fits 2014-2020 Acura RLX, N/A
• Fits 2015-2020 Acura TLX, N/A
• Fits 2019 Acura NSX, N/A
• Fits 2016-2018 Acura RDX, N/A
• Fits 2013-2017 Honda Accord, N/A
• Fits 2011-2017 Honda Odyssey, N/A
• Fits 2013-2015 Acura RDX, N/A
• Fits 2013-2015 Honda Crosstour, N/A
• Fits 2009-2015 Honda Pilot, N/A
• Fits 2009-2014 Acura TL, N/A
• Fits 2010-2014 Acura TSX, N/A
• Fits 2009-2014 Honda Ridgeline, N/A
• Fits 2010-2013 Acura MDX, N/A
• Fits 2010-2013 Acura ZDX, N/A
• Fits 2009-2012 Acura RL, N/A
• Fits 2008-2012 Honda Accord, N/A
• Fits 2012 Honda Crosstour, N/A
• Fits 2010-2011 Honda Accord Crosstour, N/A
• Fits 2007-2010 Honda Odyssey, N/A

Quality Assurance

Dayco’s Premium OEM Replacement Balancer line is built to match original-style fitment and service requirements for the listed Honda and Acura applications. The PB1713N is specified with OE-style dimensions, timing marks, and a serpentine pulley layout for accurate replacement service.
