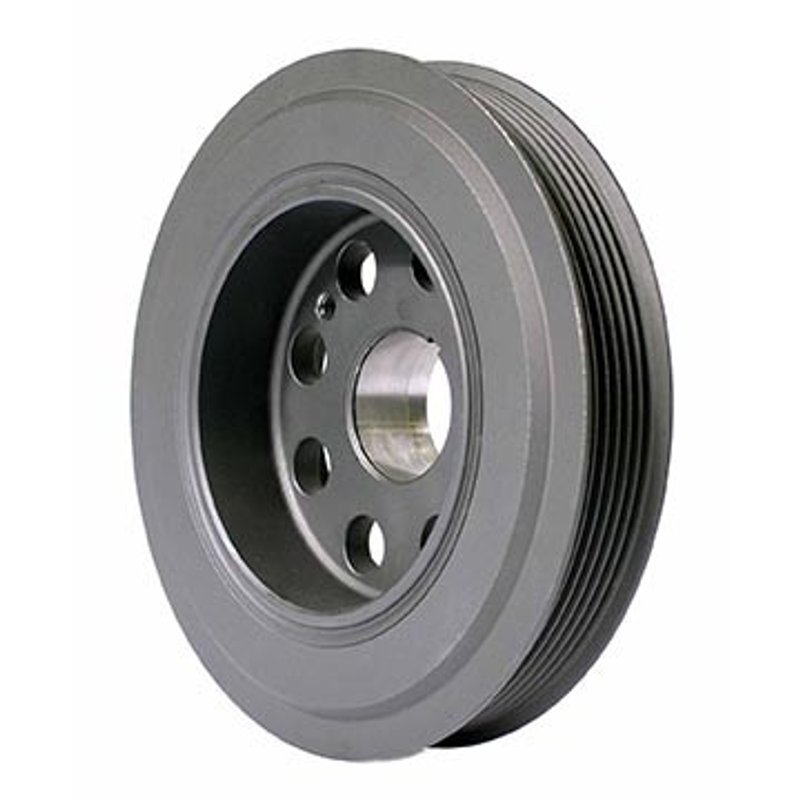

Dayco PB1783N Engine Harmonic Balancer

Dayco PB1783N Harmonic Balancer Overview

The Dayco PB1783N is a premium OEM replacement harmonic balancer for select Ford and Lincoln applications. It is built with a steel outer ring and neutral counterweight balance to support smooth crankshaft operation in the 2000-2006 Lincoln LS and 2002-2005 Ford Thunderbird.

Dayco’s Premium OEM Replacement Balancer line focuses on direct-fit engine vibration control components that match original-style dimensions and pulley configuration. The PB1783N follows that approach with a 6-groove serpentine pulley and integrated pulley design for the specified vehicles.

Key Features

• Engine harmonic balancer for select Ford and Lincoln V8 applications
• Neutral balance design with no counterweight
• Steel outer ring construction
• Integrated 6-groove serpentine pulley
• Crank bore: 37.00 mm (1.457 in.)
• Overall outside diameter: 170.00 mm (6.693 in.)
• Overall width: 54.00 mm (2.126 in.)
• Nose outside diameter: 52.00 mm (2.048 in.)
• Ring width: 42.00 mm (1.654 in.)
• Dayco PB1783N for OE-style replacement service

Detailed Description

The Dayco PB1783N harmonic balancer is a direct replacement engine component for the 2000-2006 Lincoln LS and 2002-2005 Ford Thunderbird. It is engineered with a neutral balance configuration, a steel outer ring, and a single integrated serpentine pulley to match the original accessory drive layout. If you are replacing a worn harmonic balancer on a Lincoln LS or Ford Thunderbird, the PB1783N provides the core dimensions and pulley style needed for proper crankshaft vibration control and belt alignment.

This part number, PB1783N, is a practical choice for owners and technicians looking for a premium OEM replacement balancer that matches the specified fitment and dimensions without adding unnecessary features such as timing marks, trigger plates, or included hardware.

What It Helps Address

• Crankshaft vibration from a deteriorated balancer
• Belt tracking issues related to pulley wear or misalignment
• Noise from a damaged or separated outer ring
• Accessory drive concerns on the serpentine system
• Replacement needs for a worn harmonic balancer on Lincoln LS and Ford Thunderbird models

Installation Notes and Tips

Verify crank bore, overall diameter, width, and pulley groove count before installation. Confirm that the vehicle uses the correct serpentine belt layout and that the crankshaft snout and mating surfaces are clean and free of damage. Because hardware, instructions, timing marks, and a Woodruff key are not included, reuse or source the required installation components separately as specified by the vehicle service procedure. Dayco PB1783N should be installed according to factory repair information for the exact application.

Quality Assurance

Dayco’s Premium OEM Replacement Balancer line is positioned for OE-style service replacement, with dimensions and pulley configuration matched to the listed applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With 2000-2006 Lincoln LS and 2002-2005 Ford Thunderbird applications. Dayco PB1783N is a fitment-specific harmonic balancer for these vehicles.
