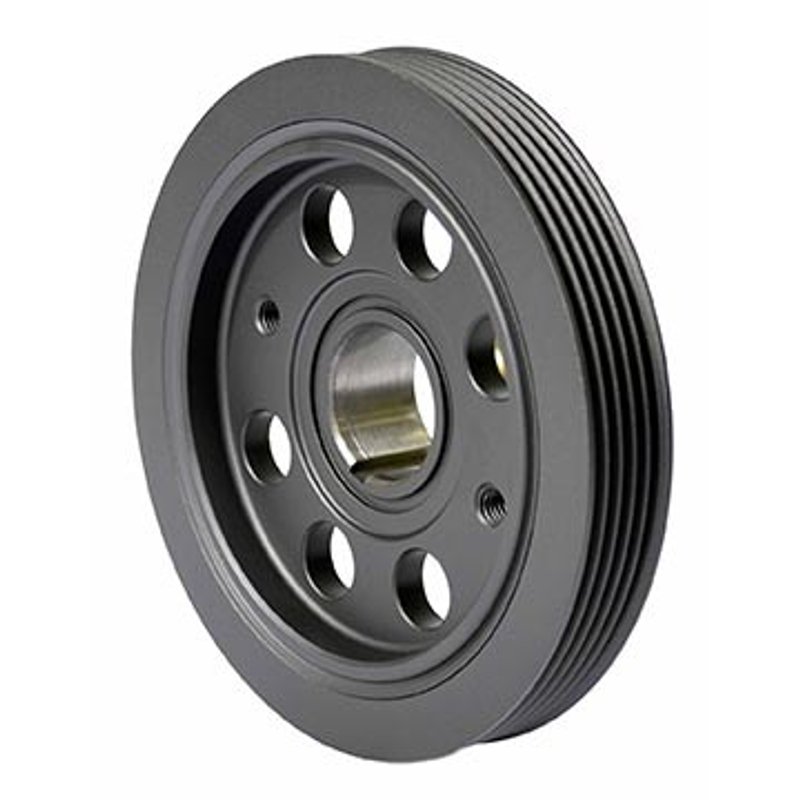

Dayco PB1786N Engine Harmonic Balancer

Dayco PB1786N Harmonic Balancer Overview

The Dayco PB1786N is a premium OEM replacement harmonic balancer for select Suzuki applications. It is built with a cast iron outer ring, neutral balance, and timing marks to support accurate crankshaft damping and timing reference on the engine.

Compatible With 2007-2009 Suzuki SX4 and 1999-2002 Suzuki Esteem, this Dayco harmonic balancer is engineered for direct-fit service on the listed applications. The PB1786N combines OE-style dimensions with a serpentine pulley design for a clean replacement on the engine front end.

Key Features

• Premium OEM replacement balancer from Dayco
• Neutral balance design with no counterweight
• Cast iron outer ring for durable construction
• Integrated serpentine pulley with 5 grooves
• Timing marks included for service alignment
• Crank bore: 31.00 mm (1.221 in.)
• Overall outside diameter: 141.90 mm (5.587 in.)
• Overall width: 36.00 mm (1.418 in.)

Detailed Description

Dayco PB1786N is a premium OEM replacement balancer designed for engine applications that require harmonic damping and accurate timing reference. The unit features a neutral balance configuration, a cast iron outer ring, one integrated pulley, and a 5-groove serpentine pulley profile. With timing marks included and a 2-bolt hole pattern, it matches the service needs of the listed Suzuki vehicles while maintaining OE-style fitment dimensions.

Dayco’s Premium OEM Replacement Balancer line focuses on direct replacement parts built to match original equipment specifications for fit and function. For drivers servicing a Suzuki SX4 or Suzuki Esteem, the PB1786N provides a straightforward replacement option for the engine harmonic balancer assembly. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Addresses

• Crankshaft vibration caused by a worn or damaged harmonic balancer
• Timing mark visibility issues during engine service
• Belt tracking concerns related to a worn serpentine pulley surface
• Noise or imbalance from a deteriorated front engine damper
• Fitment issues when replacing an OE-style balancer on the listed Suzuki models

Installation Notes and Tips

Verify crank bore, nose diameter, pulley groove count, and overall dimensions before installation. The PB1786N does not include hardware, installation instructions, a crank trigger/exciter plate, or a woodruff key, so reuse or source the required service components as specified by the vehicle manufacturer. Confirm timing marks are aligned correctly during installation on the engine front end.

Quality Assurance

Dayco’s Premium OEM Replacement Balancer line is built as an OE-style service part for the listed Suzuki applications. The PB1786N is manufactured to support direct replacement needs for 2007-2009 Suzuki SX4 and 1999-2002 Suzuki Esteem engines.
