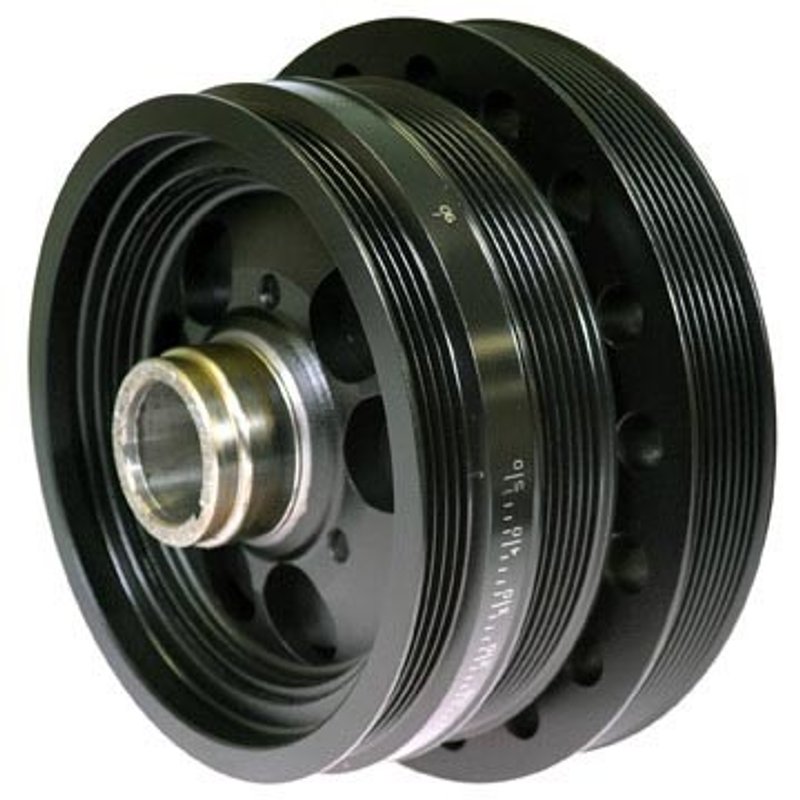

Dayco PBO1662SS10 Engine Harmonic Balancer

Overview of Dayco Race Performance 10% Overdrive Harmonic Balancer

The Dayco Race Performance 10% Overdrive Engine Harmonic Balancer (PBO1662SS10) is engineered for precision and durability in high-performance applications. Designed specifically for select Cadillac and Chevrolet models, this harmonic balancer supports engine reliability and optimized accessory drive ratios.

• Compatible with Cadillac CTS and Chevrolet Camaro, Corvette models
• Three bolt hole configuration for secure mounting
• Neutral counterweight balance with no additional counterweights
• Steel outer ring construction for enhanced strength
• Includes three integrated serpentine pulleys with multiple grooves
• Overall outside diameter of 8.62 inches (218.94 mm)
• Crank bore diameter of 1.480 inches (37.59 mm)
• Timing marks included for accurate engine timing
• Part number PBO1662SS10 for precise identification

Detailed Product Features and Specifications

This harmonic balancer features a neutral counterweight balance, meaning it does not add or subtract from the engine’s existing balance, making it suitable for engines that require no additional counterweight adjustments. The crank bore measures 1.480 inches (37.59 mm), ensuring a precise fit on compatible crankshafts. The balancer’s steel outer ring provides durability and resistance to wear under high RPM conditions.

It integrates three serpentine pulleys: the first pulley has four grooves with a 7.06-inch (179.30 mm) diameter, the second pulley has six grooves with a 7.33-inch (186.10 mm) diameter, and the third pulley is included as part of the assembly. These pulleys support accessory drives such as alternators, power steering pumps, and air conditioning compressors. The overall width of the balancer is 4.5 inches (114.30 mm), and the nose outside diameter is 2.13 inches (54.10 mm).

About the Race Performance 10% Overdrive Product Line

The Race Performance 10% Overdrive line by Dayco is designed to provide a 10% increase in accessory drive speed compared to standard harmonic balancers. This overdrive ratio helps improve accessory performance, such as alternator output and power steering responsiveness, without compromising engine balance. This product line is tailored for performance-oriented builds in Cadillac and Chevrolet vehicles, including the Camaro, Corvette, and CTS models.

Applications and Problem Solving

• Compatible with Cadillac CTS and Chevrolet Camaro and Corvette engines requiring a 3-bolt harmonic balancer
• Addresses accessory drive speed limitations by providing a 10% overdrive ratio
• Helps reduce harmonic vibrations that can cause engine wear or damage
• Supports proper timing with included timing marks for accurate ignition setup
• Eliminates the need for counterweight modifications due to neutral balance design

Installation Notes and Tips

• Hardware and installation instructions are not included; professional installation is recommended
• Ensure crank bore and bolt hole pattern match the engine specifications before installation
• Use proper torque specifications for mounting bolts to avoid damage
• Verify timing marks alignment during installation for accurate engine timing

Quality Assurance and Warranty

Dayco manufactures the Race Performance 10% Overdrive harmonic balancer to meet stringent quality standards for durability and performance. The steel outer ring construction and precise machining ensure long service life under demanding conditions. Warranty details should be confirmed with the manufacturer or authorized distributor.
