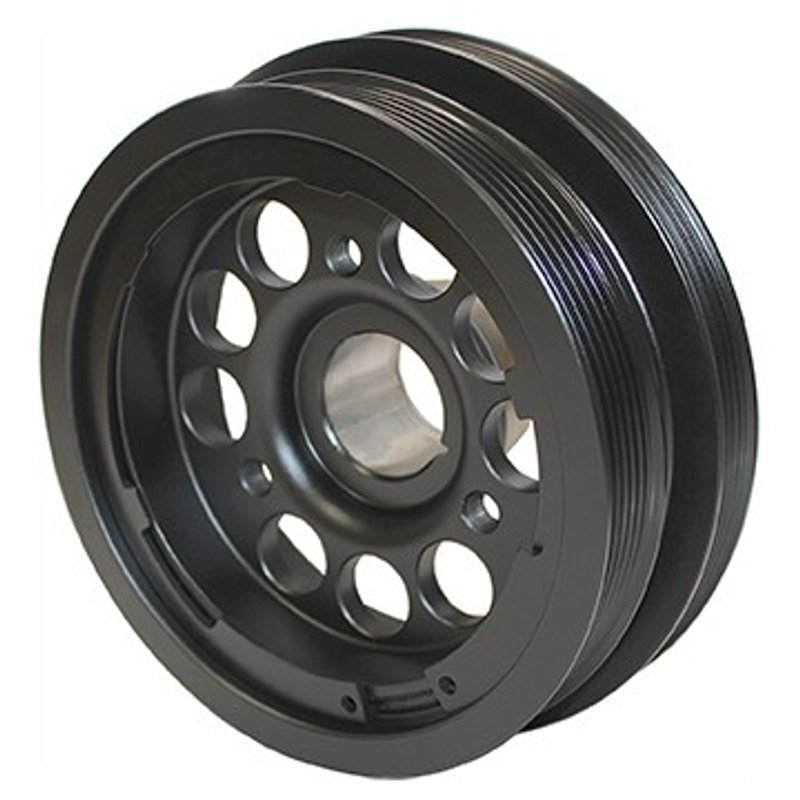

Dayco PBU1117SS10 Engine Harmonic Balancer

Overview of Dayco Race Performance 10% Underdrive Harmonic Balancer

The Dayco Race Performance 10% Underdrive Engine Harmonic Balancer (PBU1117SS10) is engineered for precision and durability in high-performance applications. Designed specifically for select Cadillac, Chevrolet, and Pontiac models, this harmonic balancer helps optimize engine efficiency and reduce crankshaft stress.

• Compatible with Cadillac Caprice, Chevrolet Corvette, CTS, G8, and SS models
• Part Number: PBU1117SS10
• Neutral counterweight balance with no additional counterweights
• Two integrated serpentine pulleys with 4 and 6 grooves respectively
• Steel outer ring construction for enhanced durability
• Includes installation instructions; hardware not included
• Features timing marks for precise engine tuning

Detailed Product Features and Specifications

This harmonic balancer features a 3-bolt hole design and a crank bore diameter of 1.481 inches (37.60 mm), ensuring a secure fit on compatible engines. The overall outside diameter measures 7.225 inches (183.50 mm), with an overall width of 2.817 inches (71.55 mm). The balancer includes two integrated serpentine pulleys: Pulley 1 has 4 grooves with a diameter of 7.067 inches (179.5 mm), and Pulley 2 has 6 grooves with a diameter of 6.52 inches (165.6 mm). The steel outer ring and a ring width of 2.421 inches (61.49 mm) contribute to the component's strength and longevity. This part does not include a crank trigger or exciter plate, nor does it come with a Woodruff key or mounting hardware.

About the Race Performance 10% Underdrive Product Line

The Race Performance 10% Underdrive line by Dayco is designed to reduce parasitic drag on the engine by underdriving accessory pulleys by 10%. This results in improved engine response and efficiency, particularly beneficial in racing or high-performance street applications. The PBU1117SS10 harmonic balancer is part of this line, offering a neutral balance design and integrated serpentine pulleys to maintain accessory drive functionality while optimizing engine output.

Applications and Problem Solving

• Reduces crankshaft vibration and stress in high-performance Cadillac, Chevrolet, and Pontiac engines
• Improves accessory drive efficiency with underdrive pulley ratios
• Helps maintain engine timing accuracy with integrated timing marks
• Addresses pulley wear issues by using durable steel outer ring construction
• Supports engine modifications requiring neutral balance without added counterweights

Installation Notes and Tips

• Installation instructions are included for proper fitment and torque specifications
• Hardware is not included; use factory or recommended fasteners for secure mounting
• Ensure crank bore and bolt hole alignment matches your vehicle’s specifications
• Verify pulley groove compatibility with existing serpentine belts
• Check timing marks alignment during installation for accurate engine timing

Quality Assurance and Warranty

Dayco manufactures the Race Performance 10% Underdrive harmonic balancer to meet stringent quality standards, using high-grade steel materials for durability and performance. While specific warranty details are not provided, Dayco products typically come with manufacturer-backed quality assurance to support reliability in demanding automotive applications.
