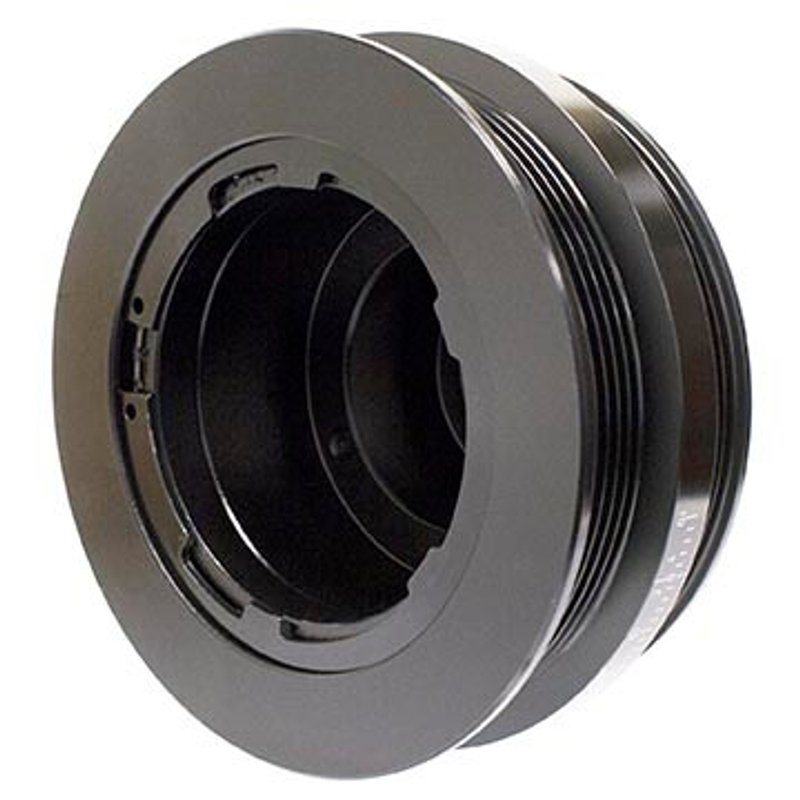

Dayco PBU1190SS25 Engine Harmonic Balancer

Overview of Dayco Race Performance 25% Underdrive Harmonic Balancer

The Dayco Race Performance 25% Underdrive Engine Harmonic Balancer (Part Number PBU1190SS25) is engineered for select GM and related vehicles requiring precise crankshaft vibration control. Designed to reduce parasitic drag by 25%, this harmonic balancer supports improved engine efficiency and performance in applications such as the Chevrolet Silverado and GMC Sierra series.

• Underdrive ratio reduces accessory speed by 25%
• Neutral counterweight balance for consistent crankshaft damping
• Steel outer ring for durability and longevity
• Two integrated serpentine pulleys with 4 and 6 grooves
• Includes installation instructions for proper fitment
• Compatible with multiple GM and related models including Chevrolet, GMC, Cadillac, and Hummer
• Timing marks included for accurate engine timing setup
• Three bolt hole design with 1.481 inch (37.60 mm) crank bore diameter

Detailed Product Description and Specifications

This Dayco harmonic balancer features a 6.221 inch (158.00 mm) overall outside diameter and a width of 4.528 inches (115.00 mm), optimized for durability and fitment in heavy-duty and performance engines. The balancer’s steel outer ring enhances resistance to wear and heat, while the neutral counterweight balance ensures no additional imbalance is introduced to the crankshaft. It includes two integrated serpentine pulleys, one with 4 grooves and the other with 6 grooves, both measuring 5.630 inches (143.00 mm) in diameter, designed to drive accessories efficiently at a reduced speed. The balancer does not include a crank trigger or exciter plate, and hardware is not included, but installation instructions are provided to assist with proper mounting.

Race Performance 25% Underdrive Product Line

The Race Performance 25% Underdrive line by Dayco is tailored for applications requiring reduced accessory speeds to lower parasitic losses and improve engine output. This underdrive harmonic balancer is part of that line, offering a 25% reduction in pulley speed compared to stock components. It is suitable for performance and heavy-duty vehicles where accessory drive reduction can contribute to enhanced throttle response and power delivery.

Compatible Vehicles and Applications

• Chevrolet Silverado 1500, 2500, 3500 (including Classic and HD variants)
• GMC Sierra 1500, 2500, 3500 (including Classic and HD variants)
• Cadillac Escalade, Escalade ESV, Escalade EXT
• Hummer H2, H3, H3T
• Buick Rainier
• Isuzu Ascender
• Saab 9-7x
• Other GM trucks and SUVs such as Avalanche, Suburban, Tahoe, Envoy, Canyon, Colorado, Trailblazer, and SSR

Common Issues Addressed by This Harmonic Balancer

• Crankshaft vibration and harmonic dampening to prevent engine damage
• Reduction of accessory drive speed to improve engine efficiency
• Replacement of worn or damaged stock harmonic balancers
• Improved throttle response through underdrive pulley design
• Maintaining accurate engine timing with included timing marks

Installation Notes and Tips

• Installation instructions are included to ensure correct mounting and alignment
• Hardware is not included; use existing or appropriate fasteners
• Verify crank bore diameter (1.481 inches / 37.60 mm) and bolt hole count (3) for compatibility
• Ensure timing marks are aligned properly during installation for accurate ignition timing
• Professional installation is recommended for precise fitment and safety

Quality Assurance and Warranty

Dayco manufactures this harmonic balancer with high-quality steel materials and precision engineering to meet OEM standards. The Race Performance 25% Underdrive harmonic balancer is designed for durability and consistent performance under demanding conditions. Installation instructions are provided to support proper use. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region and application.
