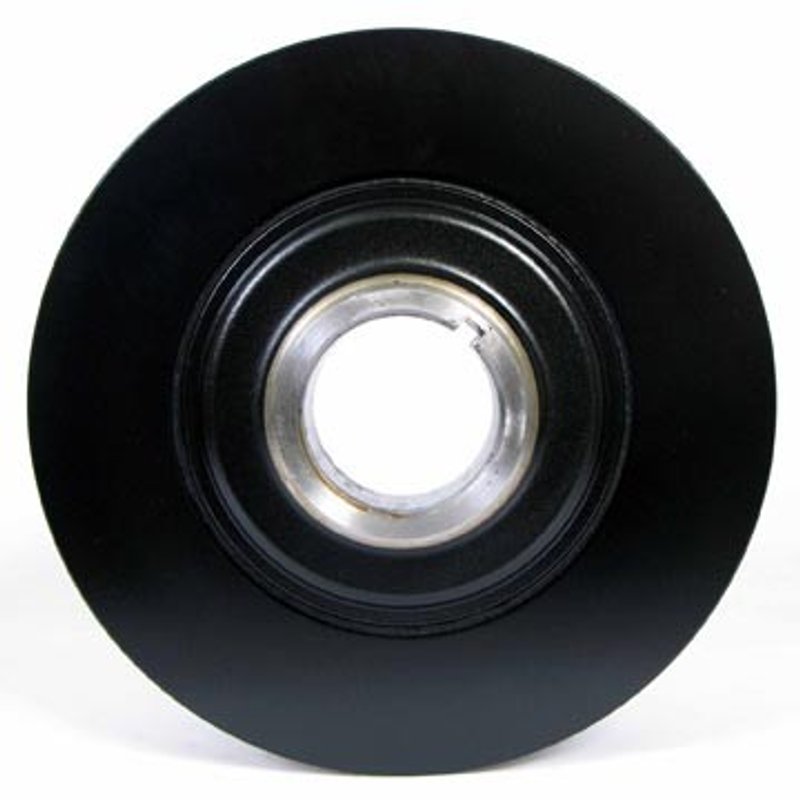

Dayco PBU81480SS25 Engine Harmonic Balancer

Overview of Dayco Race Performance 8 Rib 25% Underdrive Harmonic Balancer

The Dayco Race Performance 8 Rib 25% Underdrive Engine Harmonic Balancer (PBU81480SS25) is engineered for Chevrolet Camaro, Pontiac Firebird, and GTO models. Designed to reduce engine speed by 25%, this harmonic balancer supports improved engine performance and durability in high-demand applications.

• Compatible with Chevrolet Camaro, Pontiac Firebird, and GTO
• 25% underdrive design to reduce engine RPM
• 8 rib serpentine pulleys integrated for accessory drive
• Neutral counterweight balance with no additional counterweights
• Steel outer ring for durability and vibration dampening
• Includes installation instructions for proper setup
• Overall outside diameter: 6.221 inches (158.00 mm)
• Two integrated serpentine pulleys with 4 and 8 grooves respectively
• Three bolt hole configuration for secure mounting
• Timing marks included for accurate engine timing

Detailed Product Description and Specifications

This Dayco harmonic balancer features a 1.481 inch (37.60 mm) crank bore and a nose outside diameter of 2.128 inches (54.05 mm), ensuring precise fitment on compatible engines. The balancer includes two integrated serpentine pulleys, one with 4 grooves and the other with 8 grooves, both measuring 5.552 inches (141.00 mm) in diameter. The steel outer ring and 2.508 inch (63.68 mm) ring width provide robust vibration dampening to protect the crankshaft and improve engine longevity. The neutral counterweight balance design means no additional counterweights are present, maintaining engine balance without added mass. This part does not include hardware or a Woodruff key but comes with installation instructions to assist with proper setup.

About the Race Performance 8 Rib 25% Underdrive Product Line

The Race Performance 8 Rib 25% Underdrive line by Dayco is designed to optimize engine accessory drive systems by reducing crankshaft speed by 25%. This underdrive feature helps lower parasitic losses, improving overall engine efficiency and performance in racing and high-performance street applications. The 8 rib serpentine pulley design supports multiple accessory drives with enhanced belt grip and durability, making it suitable for Chevrolet Camaro, Pontiac Firebird, and GTO engines requiring precise harmonic balancing and accessory drive control.

Applications and Problem Solving

• Reduces engine RPM to decrease accessory load and improve efficiency
• Minimizes crankshaft vibration to protect engine components
• Supports serpentine belt systems with multiple accessory drives
• Helps maintain accurate engine timing with included timing marks
• Provides a durable steel outer ring for extended service life

Installation Notes and Tips

• Ensure crank bore and bolt hole quantity match engine specifications
• Use provided installation instructions for correct mounting procedure
• Verify timing marks alignment during installation for accurate engine timing
• Note that hardware and Woodruff key are not included and must be sourced separately
• Check pulley groove count compatibility with existing serpentine belts

Quality Assurance and Warranty

Dayco manufactures this harmonic balancer to meet strict quality standards for durability and performance. Installation instructions are included to support proper fitment and function. Warranty details should be confirmed with the manufacturer or distributor, as they may vary by application and region.
