Dayco WP154K1A Engine Timing Belt Kit with Water Pump

Timing Belt Kit with Water Pump for Toyota

Dayco WP154K1A is a timing belt kit with water pump for select Toyota Pickup and Toyota 4Runner applications. It combines the timing service components needed for scheduled maintenance in one package, helping restore proper engine timing and cooling system function.

Key Features

• Dayco Water Pump Kit without Seals

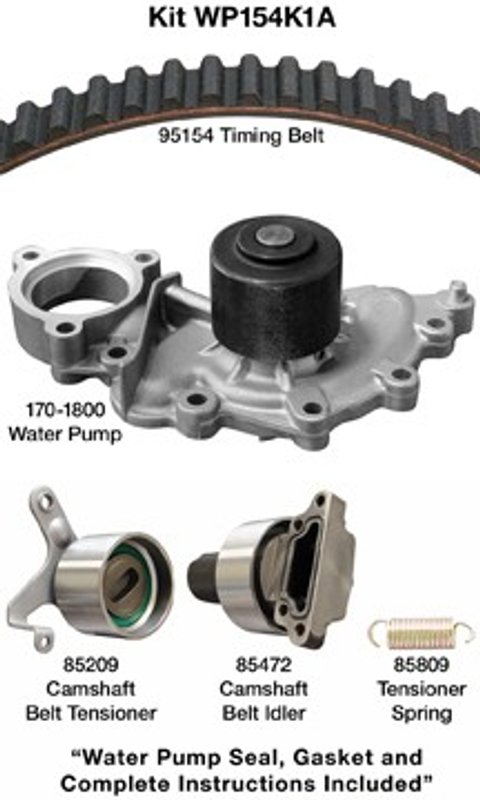

• Includes water pump, timing belt, camshaft belt tensioner, camshaft belt idler, and tensioner spring
• Direct fit for select 1988-1992 Toyota Pickup applications
• Direct fit for select 1988-1989 Toyota 4Runner applications
• Cross-references Gates TCKWP240D for the same application
• Part number: WP154K1A

Detailed Description

Dayco WP154K1A is built for timing belt service on Toyota Pickup and Toyota 4Runner models listed below. This kit is a practical choice when replacing wear items in the timing drive and water pump system at the same service interval. The Dayco Water Pump Kit without Seals line focuses on the core components needed for these repairs, and WP154K1A is identified for 1988-1992 Toyota Pickup and 1988-1989 Toyota 4Runner fitment.

Compatible With 1988-1992 Toyota Pickup and 1988-1989 Toyota 4Runner, this kit supports routine maintenance on engines that use a timing belt-driven water pump. The part number WP154K1A is also useful when searching for Toyota Pickup timing belt kit with water pump and Toyota 4Runner water pump kit without seals applications.

Common Service Issues

• Worn or noisy timing belt components
• Water pump leakage or coolant loss
• Timing belt service due at scheduled maintenance intervals
• Belt tracking or tension-related wear
• Cooling system service tied to timing component replacement

Installation Notes

Verify engine application, model year, and service configuration before installation. This kit includes the water pump, timing belt, camshaft belt tensioner, camshaft belt idler, and tensioner spring; w/o tow package and w/o outlet at thermostat. Follow factory service procedures for belt alignment, tension setting, and coolant refill after water pump replacement.

Quality Assurance

Dayco manufactures timing and cooling system service parts for vehicle maintenance applications. WP154K1A is cataloged as a Water Pump Kit without Seals for the listed Toyota fitments and is cross-referenced to Gates TCKWP240D for the same application.
