Dayco WP240K1C Engine Timing Belt Kit with Water Pump

Dayco WP240K1C Water Pump Kit for Toyota Timing Service

Dayco WP240K1C is a water pump kit without seals for timing belt service on select Toyota applications. It combines the water pump with timing drive components needed for a complete front-engine service on 1993-1995 Toyota 4Runner, 1993-1995 Toyota Pickup, and 1993-1994 Toyota T100.

Key Features

• Water pump kit without seals for timing belt maintenance

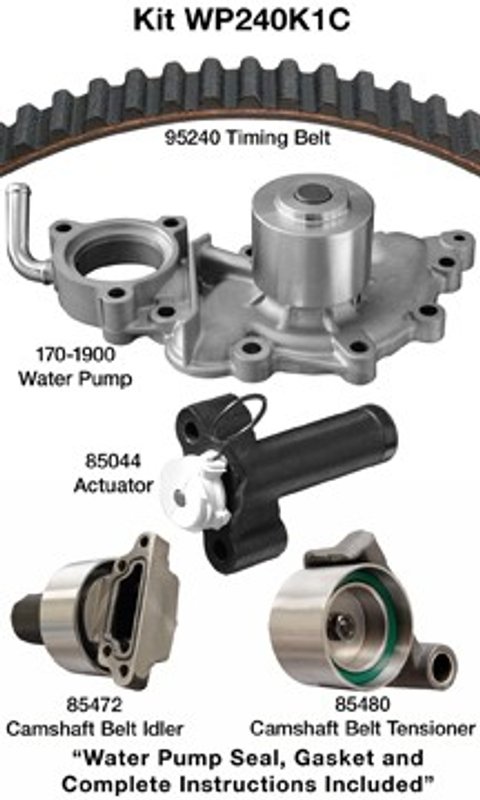

• Includes water pump, timing belt, hydraulic timing belt actuator, camshaft belt tensioner, and camshaft belt idler
• Fits Toyota 4Runner, Toyota Pickup, and Toyota T100 applications listed below
• Supersedes Dayco WP240K1A
• Cross-references CARQUEST TCKWP240 and Gates TCKWP240 for the same application

Fitment Details

• Fits 1993-1995 Toyota 4Runner, N/A — w/By-Pass Tube; Water Pump Kit without Seals
• Fits 1993-1995 Toyota Pickup, N/A — w/By-Pass Tube; Water Pump Kit without Seals
• Fits 1993-1994 Toyota T100, N/A — w/By-Pass Tube; Water Pump Kit without Seals

Product Description

This Dayco WP240K1C timing belt kit with water pump is built for Toyota engines that require coordinated replacement of the belt-driven cooling and timing components. It is a practical choice when servicing a 1993-1995 Toyota 4Runner, Toyota Pickup, or 1993-1994 Toyota T100 with the listed bypass tube configuration. Using the water pump and timing components together helps restore proper engine timing and coolant circulation during scheduled maintenance.

What It Helps Address

• Timing belt wear or age-related deterioration
• Water pump leakage or reduced coolant circulation
• Noise from a worn camshaft belt tensioner or idler
• Hydraulic timing belt actuator replacement during timing service
• Service overlap when multiple front-engine components are due at once

Installation Notes and Tips

Verify engine code, bypass tube configuration, and model year before ordering. Replace related timing components during the same service interval to reduce repeat labor. Follow factory timing marks, torque specifications, and coolant refill procedures during installation. This kit is listed without seals, so confirm whether separate seals are required for your application.

Quality Assurance

Dayco supplies timing and cooling components for OE-style service applications. WP240K1C is cataloged as a direct-fit service part for the Toyota applications shown above and supersedes WP240K1A.
