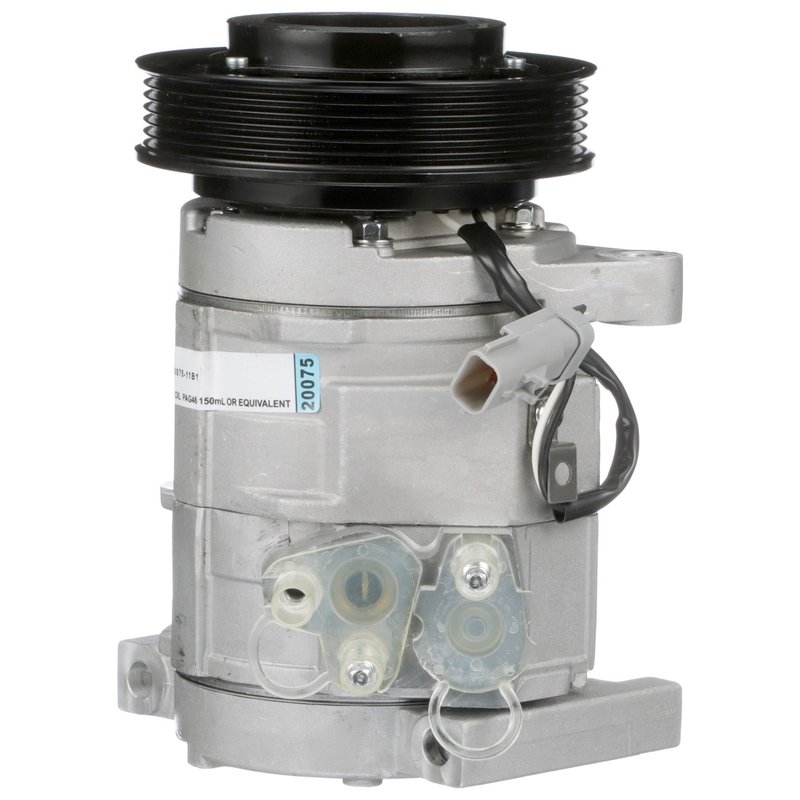

Delphi CS20075 A/C Compressor

Delphi CS20075 A/C Compressor Overview

The Delphi CS20075 A/C Compressor is designed for reliable air conditioning performance in Chrysler and Dodge vehicles. Engineered as an exact OE type fit, this compressor supports R134a refrigerant systems and includes a clutch for seamless operation.

• Compatible with Chrysler Caravan, Grand Caravan, Town & Country, and Dodge Voyager models
• Designed for R134a refrigerant with Pag oil compatibility
• Includes clutch assembly and comes with o-rings and sealing washers
• Features a 6-groove serpentine pulley with a 130mm lip diameter
• 12V coil voltage with blade-type terminals and female connector
• Bolt-tangent mounting type for secure installation
• Compressor type: 10s with coil positioned at 12 o'clock

Technical Details and Specifications

The Delphi CS20075 A/C Compressor is built to meet OE specifications, ensuring an exact fit for your vehicle’s HVAC system. It operates with R134a refrigerant and uses Pag oil, which is compatible with the compressor’s internal components. The 6-groove serpentine pulley design supports efficient belt engagement, while the 130mm pulley lip diameter maintains proper belt alignment. The compressor includes a clutch assembly, eliminating the need for separate clutch purchases. Electrical connections feature two blade terminals with a female connector, and the coil is positioned at 12 o'clock for optimal wiring routing. The bolt-tangent mounting type provides a secure and stable installation on compatible Chrysler and Dodge models.

Compatible Vehicles and Applications

This A/C compressor is compatible with the following vehicles:

• Chrysler Caravan
• Chrysler Grand Caravan
• Chrysler Town & Country
• Dodge Voyager

It is specifically designed to replace the original equipment compressor in these models, ensuring proper fit and function.

Common Issues Addressed by This Compressor

• Loss of air conditioning cooling performance
• Clutch failure or slipping in the A/C system
• Unusual noises from the compressor pulley or clutch
• Refrigerant leaks due to worn seals or compressor damage
• Electrical connection problems affecting compressor engagement

Installation Notes and Tips

When installing the Delphi CS20075 compressor, ensure the system is properly evacuated and recharged with R134a refrigerant and compatible Pag oil. Verify the clutch engages smoothly and the serpentine belt is correctly routed over the 6-groove pulley. Check that the coil terminals and female connector are securely connected. Use the included o-rings and sealing washers to prevent leaks. Follow vehicle-specific torque specifications for the bolt-tangent mounting to avoid damage.

Quality Assurance and Warranty

Delphi manufactures the CS20075 compressor to meet OE standards for durability and performance. The compressor includes oil pre-filled for immediate use and is tested for proper clutch operation and electrical function. This part comes with a limited warranty covering defects in materials and workmanship, providing confidence in its reliability for Chrysler and Dodge A/C system repairs.
