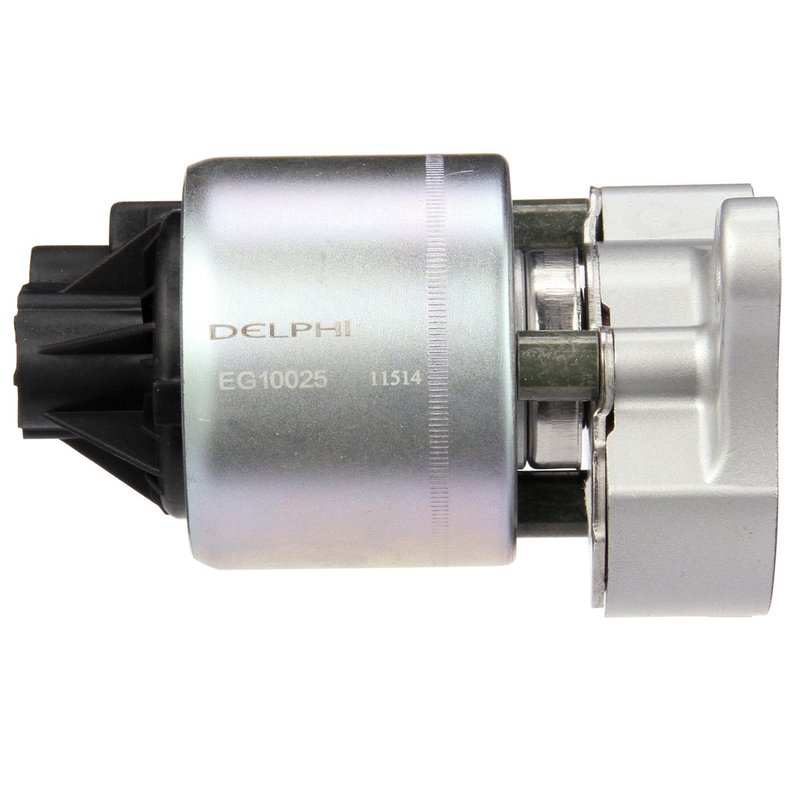

Delphi EG10025 EGR Valve

Overview of Delphi EG10025 Electronic EGR Valve

The Delphi EG10025 is an electronic Exhaust Gas Recirculation (EGR) valve designed specifically for Chevrolet Camaro and Pontiac Firebird models. This component plays a critical role in emission control by regulating exhaust gas flow to reduce nitrogen oxide emissions.

• Electronic EGR valve type for precise control
• Blade terminal type with 5 male terminals
• Single oval-shaped female connector
• Includes exhaust port and gasket for proper sealing
• Mounting hardware not included
• Package contains EGR valve, one gasket, and instruction sheet

Detailed Product Description

The Delphi EG10025 electronic EGR valve is engineered to meet the emission control requirements of Chevrolet Camaro and Pontiac Firebird vehicles. Featuring a blade terminal type with five male terminals and a single oval-shaped female connector, this valve ensures reliable electrical connections. The included gasket provides a secure seal to prevent exhaust leaks, while the exhaust port is integrated for efficient gas recirculation. Note that mounting hardware is not included, so existing hardware or separate purchase may be necessary.

Common Applications and Issues Addressed

• Reduces nitrogen oxide (NOx) emissions by recirculating exhaust gases
• Helps prevent engine knocking and improves combustion efficiency
• Resolves rough idling or stalling caused by faulty EGR valves
• Eliminates check engine light triggers related to EGR system faults
• Improves fuel economy by optimizing exhaust gas flow

Installation Notes and Tips

When installing the Delphi EG10025 EGR valve on Chevrolet Camaro or Pontiac Firebird models, ensure the gasket is properly seated to avoid exhaust leaks. Since mounting hardware is not included, verify that existing bolts and fasteners are in good condition or obtain replacements as needed. Follow the included instruction sheet carefully to connect the blade terminals and oval female connector securely. Proper installation is essential for optimal valve performance and emission control.

Quality Assurance and Warranty

Delphi manufactures the EG10025 EGR valve to meet OEM specifications for emission control components. The product includes a gasket and instruction sheet to facilitate installation. While specific warranty details are not provided here, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or Delphi’s official resources for exact warranty terms.
