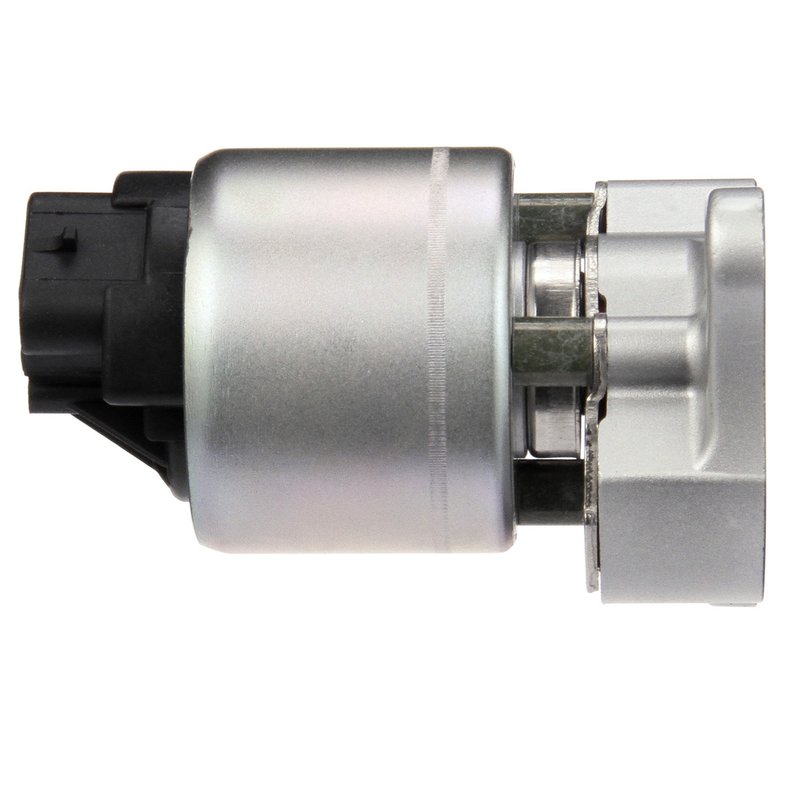

Delphi EG10031 EGR Valve

Reliable Electronic EGR Valve for Chevrolet, GMC, and Oldsmobile

The Delphi EG10031 is an electronic Exhaust Gas Recirculation (EGR) valve designed to meet the emission control needs of select Chevrolet, GMC, and Oldsmobile vehicles. Engineered for precise control and durability, this EGR valve helps maintain optimal engine performance and emission standards.

• Electronic EGR valve type for accurate exhaust gas recirculation
• Blade terminal type with 5 male terminals for secure electrical connection
• Includes one oval-shaped female connector for compatibility
• Comes with a gasket to ensure a proper seal and prevent leaks
• Positive backpressure design with exhaust port included
• Package contains the EGR valve, gasket, and instruction sheet

Product Details and Specifications

The Delphi EG10031 EGR valve features an electronic control mechanism that regulates the flow of exhaust gases back into the intake manifold. This helps reduce nitrogen oxide emissions and improves combustion efficiency. The valve is equipped with a blade terminal type connector, featuring five male terminals and one oval-shaped female connector, ensuring a reliable electrical interface. The included gasket provides a tight seal to prevent exhaust leaks, and the positive backpressure design supports proper valve operation. This part does not include mounting hardware, so ensure existing hardware is in good condition before installation.

Compatible Vehicles and Applications

This EGR valve is compatible with a range of Chevrolet, GMC, and Oldsmobile models, including the Astro, Blazer, Bravada, Jimmy, S10, S10 Blazer, Safari, and Sonoma. The part number EG10031 is specifically designed to meet the emission control requirements of these vehicles, making it a suitable replacement for worn or faulty EGR valves in these applications.

Common Issues Addressed by the Delphi EG10031 EGR Valve

• Engine rough idling or stalling due to faulty EGR operation
• Increased emissions or failed emissions tests
• Check engine light triggered by EGR system faults
• Reduced fuel efficiency caused by improper exhaust gas recirculation
• Engine knocking or pinging related to combustion irregularities

Installation Notes and Tips

Before installing the Delphi EG10031 EGR valve, verify that the mounting surface is clean and free of debris. Use the included gasket to ensure a proper seal and prevent exhaust leaks. Since mounting hardware is not included, inspect existing bolts and replace if necessary. Carefully connect the blade-type terminals, ensuring the oval female connector is securely attached. Follow the instruction sheet provided for torque specifications and wiring details to ensure correct installation and operation.

Quality Assurance and Warranty Information

Delphi manufactures the EG10031 EGR valve to meet OEM standards for fit, form, and function. Each valve undergoes rigorous testing to ensure reliable performance and durability. The product includes a gasket and detailed installation instructions to support proper setup. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
