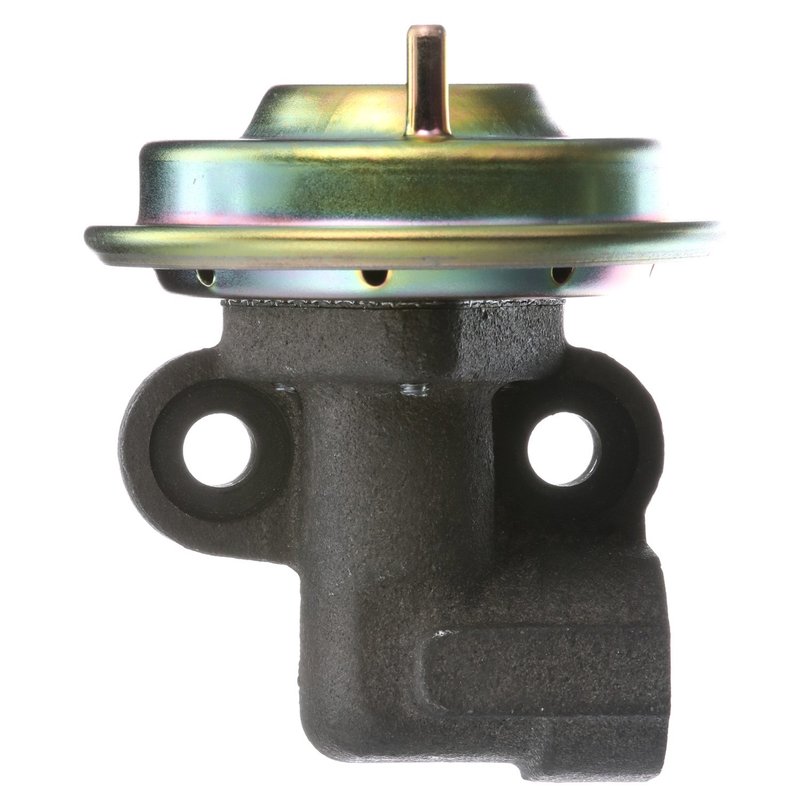

Delphi EG10235 EGR Valve
| Brand | Delphi EG10235 |
|---|---|
| EGR Valve Type | Ported |
| Exhaust Port Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hardware Included | No |
| Package Contents | EGR Valve, (1) Gasket, Instruction Sheet |
| Positive Or Negative Backpressure | Negative |
| Fits | Ford · 11 vehicles |
OE heritage. Built with a century of original-equipment experience.
Ported EGR valve. Helps recirculate exhaust gases for cleaner combustion.
Gasket included. Comes with a gasket for a more complete install.
Cross-references Standard Ignition EGV452, T Series EGV452T and 4F1318 for the same application. See all 19.
Delphi EG10235 EGR Valve Overview
The Delphi EG10235 is a ported exhaust gas recirculation valve built for specific Ford applications, including Ranger, Explorer, Taurus, and Windstar models. It uses OE-based engineering knowledge from Delphi’s long history supplying original equipment to major automakers, helping support accurate exhaust gas recirculation control in the vehicles listed below.
- Ported EGR valve design for the listed Ford applications
- Negative backpressure configuration
- Gasket included for installation
- Package contents: EGR valve, gasket, and instruction sheet
- Delphi part number EG10235 for direct reference
Vehicle Fitment
- Fits 1995-1998 Ford Ranger, N/A
- Fits 1996-1997 Ford Explorer, N/A
- Fits 1996-1997 Ford Windstar, N/A
- Fits 1995 Ford Explorer, N/A, stamped F37E9D475C4A
- Fits 1995 Ford Taurus, N/A, stamped F37E9D475C4A
- Fits 1995 Ford Windstar, N/A, stamped F37E9D475C4A
Detailed Product Description
Delphi EG10235 is an exhaust gas recirculation valve for emissions control service on select Ford Ranger, Ford Explorer, Ford Taurus, and Ford Windstar vehicles. The ported valve design and negative backpressure specification are important for matching the original system configuration, and the included gasket supports a proper seal at installation. If you are replacing a worn EGR valve on a 1995-1998 Ford Ranger or the listed 1995-1997 Ford passenger and utility models, this part number provides a direct OE-style service option.
This part cross-references Standard Ignition EGV452 for the same application.
Common Issues This Part Can Address
- EGR-related rough idle on the listed Ford applications
- Emissions fault codes tied to exhaust gas recirculation flow
- Sticking or restricted EGR valve operation
- Driveability problems caused by improper exhaust gas recirculation control
- Failed inspection results related to EGR system performance
Installation Notes and Tips
Verify the vehicle’s EGR system type, backpressure requirement, and stamped part number before installation. The Delphi EG10235 includes a gasket, but mounting hardware is not included. Clean the mating surfaces thoroughly and inspect connected passages for carbon buildup so the replacement valve can seat and operate correctly.
Quality Assurance
Delphi builds aftermarket parts using OE heritage and engineering knowledge developed through decades of original equipment supply to major automakers. The EG10235 reflects that OE-based approach for emissions service on the listed Ford vehicles.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 1998 | Ford | Ranger | — | N/A | — |
| 1997 | Ford | Explorer | — | N/A | — |
| 1997 | Ford | Ranger | — | N/A | — |
| 1997 | Ford | Windstar | — | N/A | — |
| 1996 | Ford | Explorer | — | N/A | — |
| 1996 | Ford | Ranger | — | N/A | — |
| 1996 | Ford | Windstar | — | N/A | — |
| 1995 | Ford | Explorer | — | N/A | Stamped F37E9D475C4A |
| 1995 | Ford | Ranger | — | N/A | — |
| 1995 | Ford | Taurus | FLEX | N/A | Stamped F37E9D475C4A |
| 1995 | Ford | Windstar | — | N/A | Stamped F37E9D475C4A |
