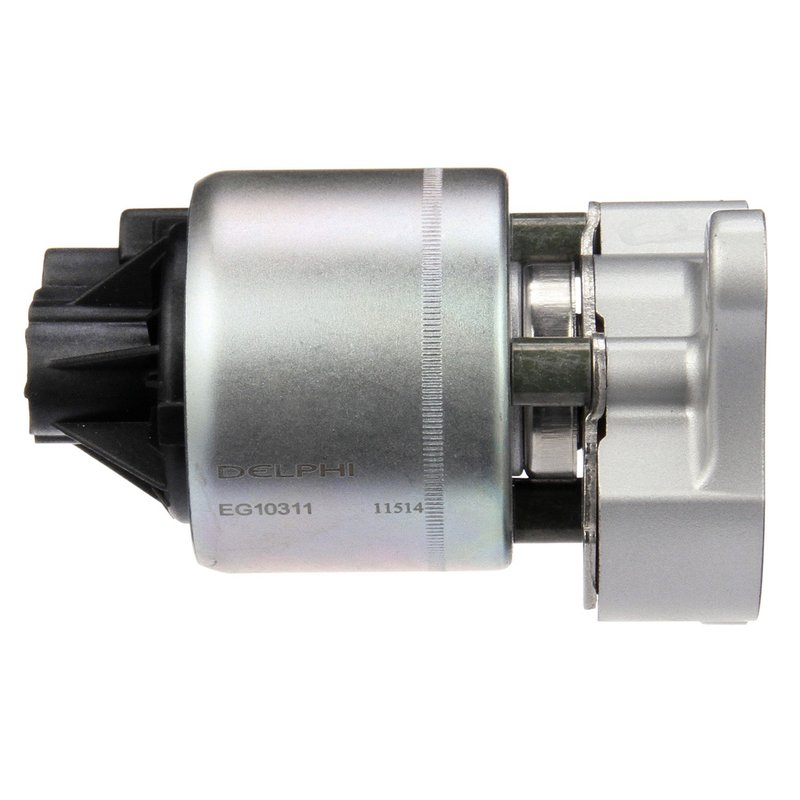

Delphi EG10311 EGR Valve

Reliable Electronic EGR Valve for GM Heavy-Duty Vehicles

The Delphi EG10311 electronic Exhaust Gas Recirculation (EGR) valve is designed to meet the emission control needs of select Buick, Cadillac, Chevrolet, GMC, and Pontiac models. Engineered for positive backpressure applications, this EGR valve helps maintain optimal engine performance and emission standards.

• Electronic EGR valve type for precise exhaust gas recirculation control
• Blade terminal type with 5 male terminals for secure electrical connections
• Includes one female oval-shaped connector for compatibility
• Comes with an exhaust port and a gasket for proper sealing
• Mounting hardware not included; installation requires existing hardware
• Package includes EGR valve, gasket, and instruction sheet

Product Details and Specifications

The Delphi EG10311 EGR valve features an electronic design that enables accurate modulation of exhaust gases back into the intake manifold, reducing nitrogen oxide emissions. It is equipped with a blade terminal type connector featuring five male terminals and one female oval connector, ensuring reliable electrical connectivity. The valve supports positive backpressure exhaust systems and includes an exhaust port and gasket to ensure a proper seal during installation. While mounting hardware is not included, the package provides an instruction sheet to assist with installation.

Compatible Vehicles and Applications

This EGR valve is compatible with a range of GM heavy-duty and passenger vehicles, including Buick LaCrosse and Lucerne, Cadillac DTS, Chevrolet Avalanche 2500, Silverado 2500 HD and 3500, Suburban 2500, GMC Sierra 2500 HD and 3500, Yukon XL 2500, and Pontiac Grand Prix. The part number EG10311 is specifically designed to meet the emission control requirements of these models.

Common Issues Addressed by the Delphi EG10311 EGR Valve

• Reduces engine knocking caused by improper exhaust gas recirculation
• Helps prevent increased nitrogen oxide (NOx) emissions
• Improves engine idle stability and performance
• Resolves check engine light triggers related to EGR system faults
• Mitigates rough idling and hesitation during acceleration

Installation Notes and Tips

Before installation, verify compatibility with your vehicle’s make and model. The Delphi EG10311 does not include mounting hardware, so retain or source the necessary bolts and fasteners. Ensure the gasket is properly seated to prevent exhaust leaks. Disconnect the battery before installation to avoid electrical shorts. Follow the included instruction sheet carefully for wiring and mounting procedures.

Quality Assurance and Warranty

Delphi manufactures the EG10311 EGR valve to meet OEM specifications for durability and performance. The product includes a gasket to ensure a proper seal and is tested for reliable operation under positive backpressure conditions. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
