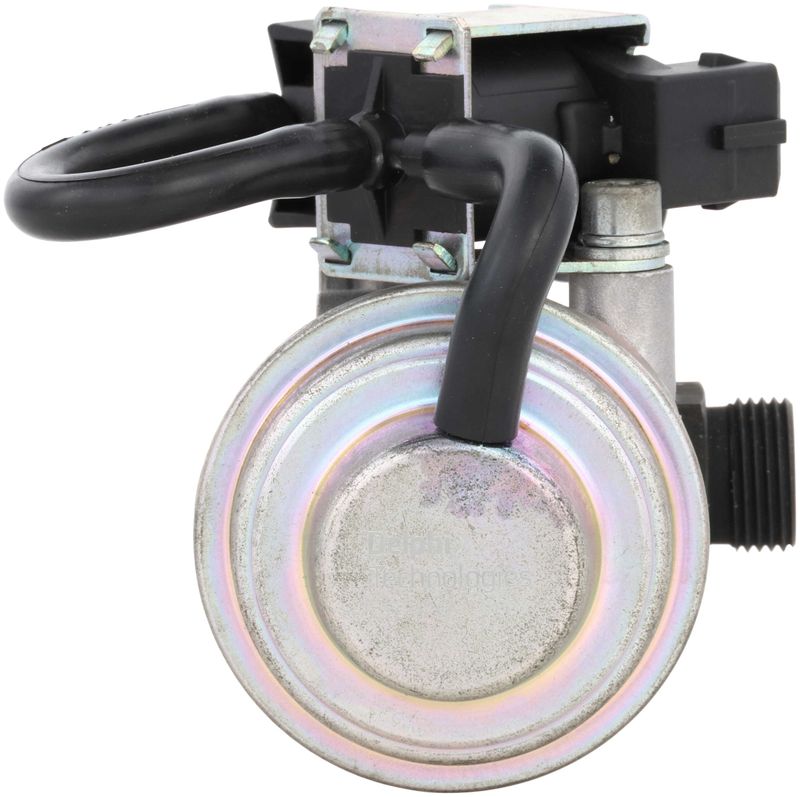

Delphi EG10372 Exhaust Gas Recirculation (EGR) Valve

Delphi EG10372 EGR Valve for Mercedes-Benz

Delphi EG10372 is a vacuum-operated exhaust gas recirculation valve built to OE-style specifications for precise emissions control. It is a direct replacement for select Mercedes-Benz applications, including C240, C320, E320, ML320, and CLK320 models.

Key Features

• Vacuum valve design for exhaust gas recirculation control
• Negative backpressure configuration
• 1 rectangular male connector with 2 blade terminals
• 1 vacuum port with 5 mm diameter
• Exhaust port included
• Package contents: EGR valve, 1 gasket, instruction sheet
• Delphi OE-based materials, dimensions, and validation standards

Detailed Description

The Delphi EG10372 EGR valve is engineered for Mercedes-Benz vehicles that use a vacuum-actuated EGR system. Delphi applies OE heritage, material selection standards, and manufacturing controls developed from more than 100 years of OE experience, helping ensure consistent fit and function. This part number, EG10372, is a practical replacement choice for drivers servicing emissions-related faults on Mercedes-Benz C240, C320, E320, ML320, and CLK320 platforms.

This part cross-references Standard Ignition EGV811 for the same application.

What It Helps Address

• EGR flow faults that trigger emissions-related warning lights
• Rough idle caused by improper exhaust gas recirculation
• Driveability issues related to a sticking or failing EGR valve
• Failed emissions inspection due to EGR system malfunction
• Vacuum control problems in the EGR circuit

Installation Notes and Tips

Verify connector style, vacuum port size, and mounting points before installation. This valve uses 2 mounting holes, a male rectangular connector, and a single vacuum port. The package includes a gasket and instruction sheet, but mounting hardware is not included. Clean the mating surfaces thoroughly and inspect vacuum lines for cracks or leaks before installing the new valve.

Quality Assurance

Delphi builds this EGR valve using OE-based design specifications, material thickness, and material selection standards, then validates parts through strict manufacturing and testing processes. That approach supports consistent quality for emissions-system service on Mercedes-Benz applications.

• Fits 2001-2005 Mercedes-Benz C240
• Fits 2001-2005 Mercedes-Benz C320
• Fits 1998-2005 Mercedes-Benz CLK320
• Fits 1998-2005 Mercedes-Benz E320
• Fits 2003-2005 Mercedes-Benz ML350
• Fits 2001-2004 Mercedes-Benz CLK55 AMG
• Fits 2003-2004 Mercedes-Benz G55 AMG
• Fits 2001-2004 Mercedes-Benz SLK320
• Fits 1999-2003 Mercedes-Benz CLK430
• Fits 1998-2003 Mercedes-Benz ML320
• Fits 2000-2003 Mercedes-Benz ML55 AMG
• Fits 2000-2002 Mercedes-Benz CL500
• Fits 2001-2002 Mercedes-Benz CL55 AMG
• Fits 1999-2002 Mercedes-Benz E55 AMG
• Fits 2002 Mercedes-Benz G500
• Fits 2002 Mercedes-Benz ML500
• Fits 2000-2002 Mercedes-Benz S430
• Fits 1999-2001 Mercedes-Benz ML430
• Fits 1998-2000 Mercedes-Benz C280
• Fits 1998-2000 Mercedes-Benz C43 AMG
• Fits 1998-1999 Mercedes-Benz E430
• Fits 2006 Mercedes-Benz S350
