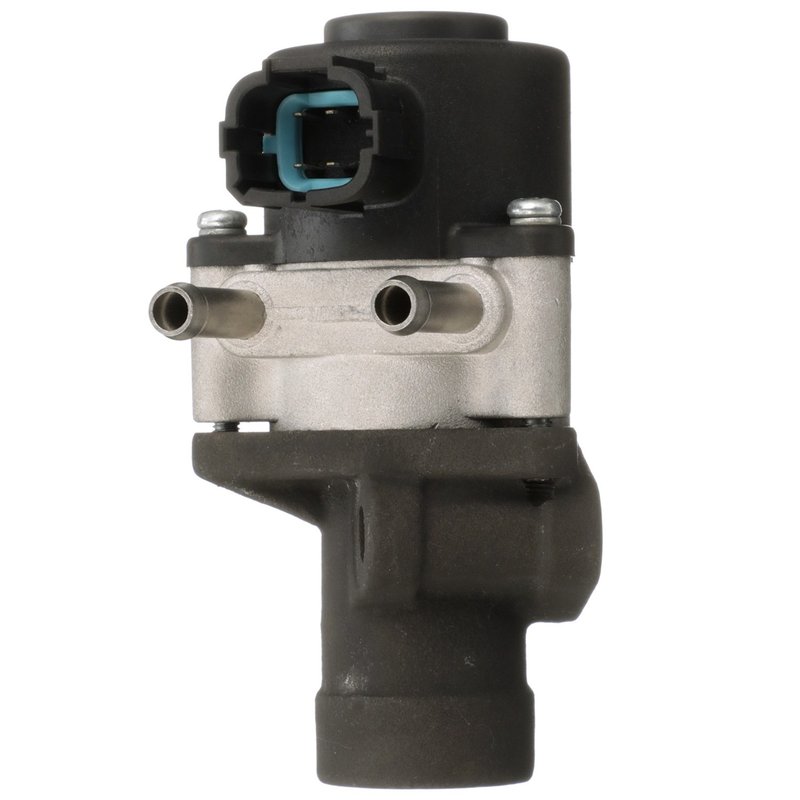

Delphi EG10456 EGR Valve

Overview of Delphi EG10456 Electronic EGR Valve

The Delphi EG10456 is an electronic Exhaust Gas Recirculation (EGR) valve designed specifically for Nissan Sentra models. This component helps regulate exhaust gas flow to reduce emissions and improve engine efficiency.

• Electronic EGR valve type for precise control
• Blade terminal type with 6 male terminals
• Single female square connector for secure connection
• Includes exhaust port and gasket for proper sealing
• Positive backpressure design to optimize exhaust flow
• Mounting hardware not included
• Package contains EGR valve, one gasket, and instruction sheet

Detailed Product Description

The Delphi EG10456 EGR valve is engineered to meet the emission control requirements of Nissan Sentra vehicles. Featuring an electronic valve type, it offers accurate modulation of exhaust gases recirculated into the intake manifold. The valve uses a blade terminal type with six male terminals and a single female square connector, ensuring reliable electrical connectivity. The included gasket helps maintain a tight seal between the valve and exhaust port, which is also part of the assembly. This EGR valve operates under positive backpressure conditions to maintain optimal exhaust gas flow and reduce nitrogen oxide emissions.

Compatible Nissan Sentra Models and Applications

This EGR valve is compatible with various Nissan Sentra models requiring part number EG10456. It is designed to replace faulty or worn-out EGR valves that can cause engine performance issues or increased emissions.

• Reduces rough idling and engine hesitation
• Helps resolve check engine light related to EGR system faults
• Improves fuel efficiency by optimizing exhaust gas recirculation
• Minimizes increased emissions and failed emissions tests
• Prevents engine knocking caused by improper EGR function

Installation Notes and Tips

Installation of the Delphi EG10456 EGR valve requires removal of the old valve and proper placement of the included gasket to ensure a secure seal. Note that mounting hardware is not included, so retain original bolts or acquire compatible fasteners. Ensure electrical connectors are properly aligned with the blade terminals and securely attached to avoid connection issues. Follow the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty

Delphi manufactures the EG10456 EGR valve to meet OEM specifications for Nissan Sentra vehicles. The product includes a gasket and is tested for durability and performance under positive backpressure conditions. Warranty coverage details should be confirmed at the point of purchase, as Delphi typically offers limited warranties on emission control components.
