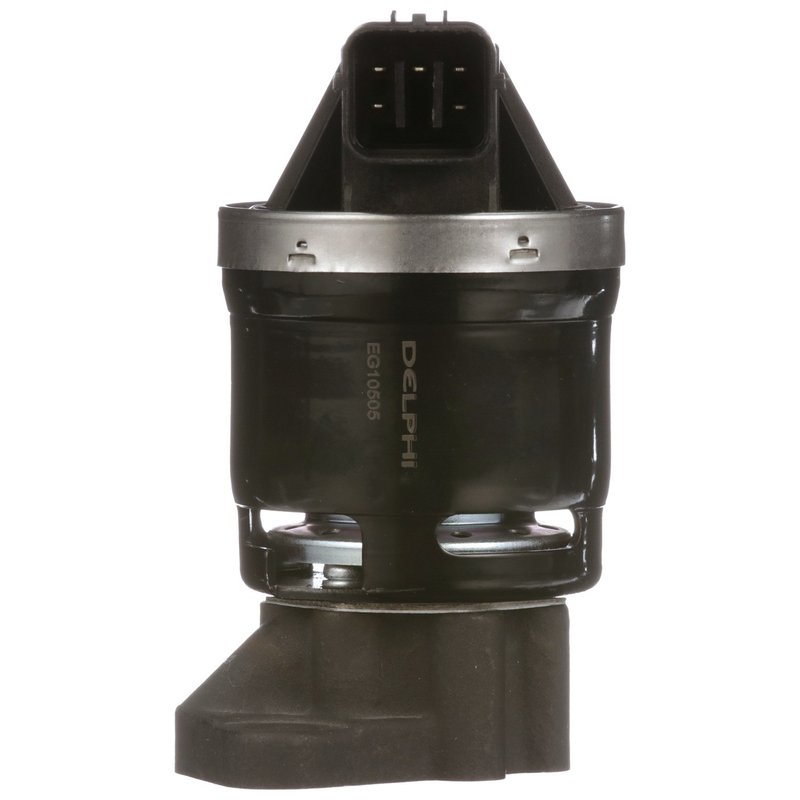

Delphi EG10505 EGR Valve
| Brand | Delphi EG10505 |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| EGR Valve Type | Electronic |
| Exhaust Port Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hardware Included | No |
| Package Contents | EGR Valve, (1) Gasket, Instruction Sheet |
| Positive Or Negative Backpressure | Positive |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Fits | Honda · 9 vehicles |
Electronic EGR valve. Provides precise exhaust gas recirculation control.
Gasket included. Helps simplify installation with a proper seal.
OE heritage. Built from Delphi's century of original-equipment experience.
Cross-references Standard Ignition EGV974, Standard Ignition EGV1130 and 18011-PWA-040 for the same application. See all 8.
Delphi EG10505 EGR Valve for Honda Civic
The Delphi EG10505 is an electronic exhaust gas recirculation valve built for specific Honda Civic applications from 2003-2006 and 2007-2011. It is engineered with OE heritage and Delphi’s long history supplying original equipment to major automakers, giving you a direct-fit emission control replacement for the Civic EGR system.
Key Features
- Electronic EGR valve design for precise exhaust gas recirculation control
- 5-terminal blade connection with a square female connector
- Positive backpressure configuration
- Gasket included for installation
- Direct replacement for Honda Civic EGR service applications
- Delphi part number EG10505
Product Details
Built for emission control service, this Delphi EGR valve helps restore proper exhaust gas routing back into the intake stream on supported Honda Civic models. The electronic design supports accurate valve operation, while the included gasket helps provide a proper seal at the mounting surface. Delphi EG10505 is a practical OE-style replacement for drivers servicing a Honda Civic EGR valve issue and looking for a part backed by OE experience.
Fits 2003-2005 Honda Civic, N/A. Fits 2006 Honda Civic, N/A, from chassis # 1033491; to chassis # 1033490. Fits 2007-2011 Honda Civic, N/A.
This part cross-references Standard Ignition EGV974 and EGV1130 for the same application.
Common Issues This Part Can Address
- EGR-related check engine light conditions
- Rough idle caused by restricted exhaust gas recirculation flow
- Driveability problems tied to a sticking or failing EGR valve
- Emission test failures related to EGR system malfunction
- Loss of proper recirculation control in the Honda Civic emission system
Installation Notes
Verify the connector style, terminal count, and chassis note before installation on 2006 Honda Civic applications. Inspect the mating surface and replace the gasket supplied with the valve during service. Confirm the EGR passages are clean and free of carbon buildup so the replacement valve can operate correctly.
Quality Assurance
Delphi draws on more than 100 years of OE experience and original equipment supply knowledge when producing aftermarket emission control parts. That OE background is built into the design and manufacturing approach of the EG10505.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Honda | Civic | N/A | — |
| 2010 | Honda | Civic | N/A | — |
| 2009 | Honda | Civic | N/A | — |
| 2008 | Honda | Civic | N/A | — |
| 2007 | Honda | Civic | N/A | — |
| 2006 | Honda | Civic | N/A | From Chassis # 1033491; To Chassis # 1033490 |
| 2005 | Honda | Civic | N/A | — |
| 2004 | Honda | Civic | N/A | — |
| 2003 | Honda | Civic | N/A | — |
