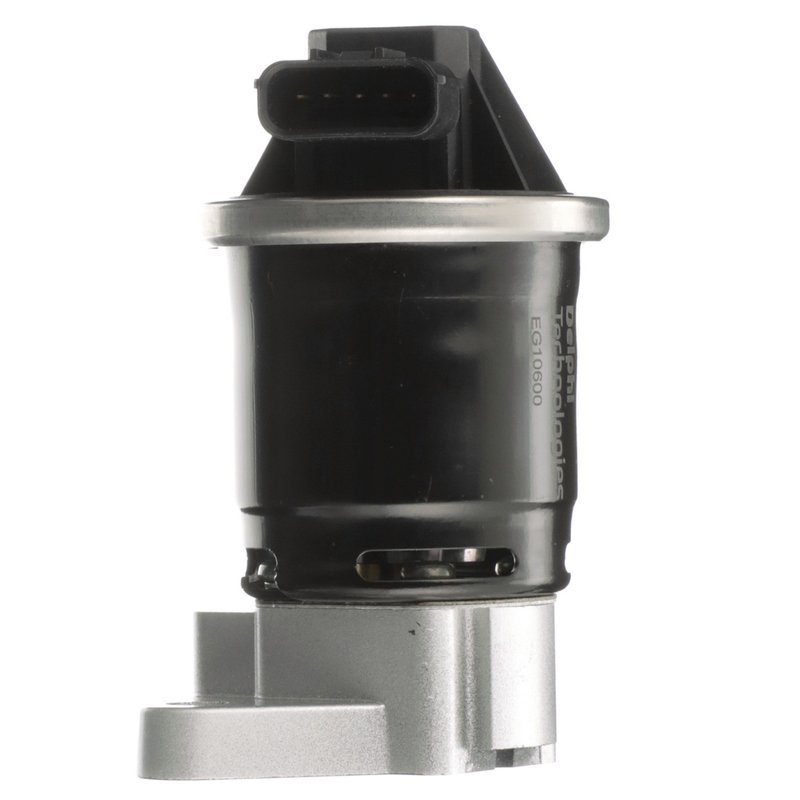

Delphi EG10600 Exhaust Gas Recirculation (EGR) Valve

Overview of Delphi EG10600 EGR Valve for Honda Vehicles

The Delphi EG10600 Exhaust Gas Recirculation (EGR) Valve is designed specifically for Honda Civic, Fit, and Insight models. This pulse width modulated EGR valve helps regulate exhaust gas flow to reduce emissions and improve engine efficiency.

• Pulse width modulated EGR valve type for precise control
• Compatible with Honda Civic, Fit, and Insight
• Pin terminal type with 5 male terminals
• Single female rectangular connector
• Includes 2 vacuum ports with 8.3 mm diameter
• Equipped with 2 mounting holes for secure installation
• Exhaust port included for proper gas recirculation
• Package contains EGR valve and instruction sheet

Detailed Product Description

The Delphi EG10600 EGR valve utilizes pulse width modulation technology to accurately control the flow of exhaust gases back into the intake manifold. This helps reduce nitrogen oxide emissions and supports compliance with emission standards. The valve features a pin terminal type with five male terminals and a single female rectangular connector, ensuring reliable electrical connections. It includes two vacuum ports, each with an 8.3 mm diameter, to manage negative backpressure effectively. The valve mounts securely using two mounting holes, though mounting hardware is not included. An exhaust port is integrated to facilitate proper exhaust gas recirculation. This part is engineered for direct compatibility with Honda Civic, Fit, and Insight models, making it a suitable replacement for maintaining emission control system performance.

Common Applications and Issues Addressed

• Reduces excessive nitrogen oxide (NOx) emissions
• Helps resolve rough idling caused by faulty EGR operation
• Prevents engine knocking related to improper exhaust gas flow
• Improves fuel efficiency by optimizing combustion
• Addresses check engine light codes related to EGR valve malfunction

Installation Notes and Tips

When installing the Delphi EG10600 EGR valve, ensure the electrical connector is securely attached to the female rectangular connector with five male terminals. Verify vacuum lines are properly connected to the two vacuum ports to maintain correct negative backpressure. Use the two mounting holes to fasten the valve firmly; note that mounting hardware is not included and must be sourced separately. Follow the included instruction sheet for detailed installation guidance and torque specifications to avoid leaks or damage.

Quality Assurance and Warranty

Delphi manufactures the EG10600 EGR valve to meet OEM standards for durability and performance. While specific warranty details are not provided here, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or Delphi’s official resources for complete warranty information.
