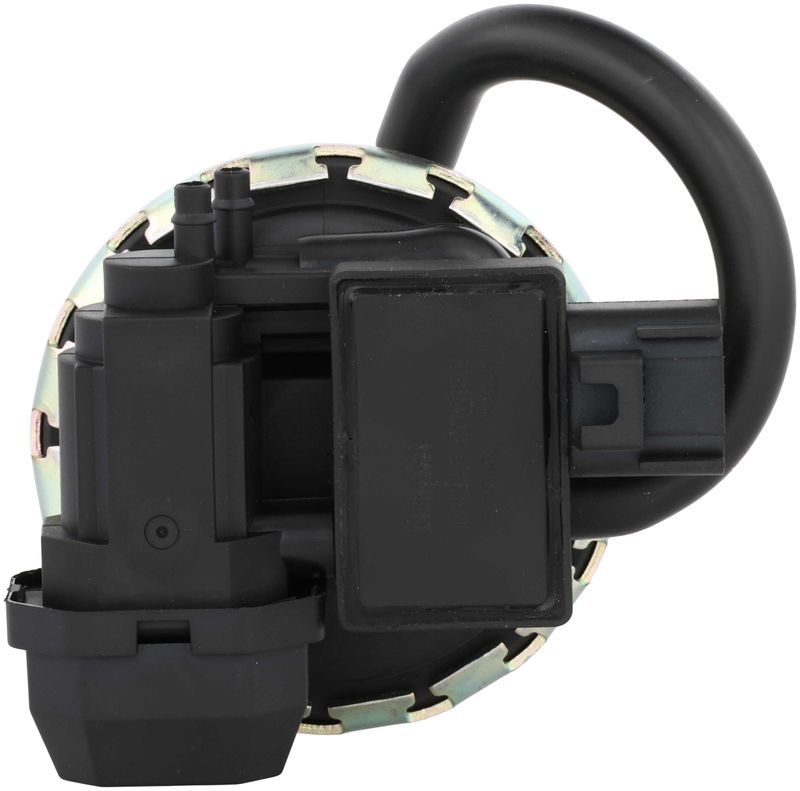

Delphi EG10602 Exhaust Gas Recirculation (EGR) Valve

Delphi EG10602 EGR Valve Overview

Delphi EG10602 is a vacuum-operated exhaust gas recirculation valve built for emission control service on select Ford trucks and vans. It is a direct-fit replacement for applications that require a rectangular 1-connector, 6-terminal valve with a gasket included.

Compatible with 2006-2008 Ford F-150 and 2006-2007 Ford Freestar, this Delphi EGR valve is built to OE-based specifications for fit, materials, and validation. The EG10602 part number is also a useful reference when comparing replacement options for the same application.

Key Features

• Vacuum valve EGR design
• 1 rectangular connector with 6 terminals
• Male connector and male terminal configuration
• 2 vacuum ports with 0.196 in. / 5 mm diameter
• Negative backpressure design
• Exhaust port included
• Gasket included in the package
• Package contents: EGR valve, (1) gasket, instruction sheet

Detailed Description

Delphi EG10602 is an exhaust gas recirculation valve engineered for emission control systems that rely on vacuum actuation. Delphi builds this part using OE-based design specifications, material selection, and manufacturing controls developed from more than a century of original equipment experience. The result is a replacement EGR valve intended to match the original service requirements of select Ford F-150 and Ford Freestar applications while maintaining the correct connector, terminal, and port layout.

This part cross-references Standard Ignition EGV1039 for the same application. The EG10602 part number is also commonly used when sourcing an EGR valve for 2006-2008 Ford F-150 and 2006-2007 Ford Freestar emission control repair.

What It Helps Fix

• Check engine light related to EGR flow faults
• Rough idle caused by EGR valve sticking or leakage
• Emission test failures tied to recirculation system issues
• Driveability problems from improper exhaust gas recirculation
• Vacuum-controlled EGR operation problems on Ford F-150 and Ford Freestar

Installation Notes and Tips

Verify connector shape, terminal count, vacuum port layout, and mounting hole count before installation. This valve uses 2 mounting holes and includes a gasket, but mounting hardware is not included. Clean the mounting surface thoroughly, inspect vacuum lines for cracks or leaks, and confirm the exhaust port and vacuum ports are clear before final assembly.

For fitment confirmation, use the vehicle application details exactly as listed: Fits 2006-2008 Ford F-150, N/A; Fits 2006-2007 Ford Freestar, N/A.

Quality Assurance

Delphi uses OE heritage, validation testing, and controlled manufacturing processes to build replacement parts to original-equipment-based standards. That approach supports consistent fit and dependable service for emission control repairs on the listed Ford applications.
