Delphi FA10004 Fuel Pump Wiring Harness

Reliable Fuel Pump Wiring Harness for Select GM Vehicles

The Delphi FA10004 fuel pump wiring harness is designed to provide a dependable electrical connection for fuel pumps in various Buick, Chevrolet, Oldsmobile, and Pontiac models. This standard replacement harness ensures proper fuel delivery system operation with a durable plastic jacket and secure plug-in connectors.

• Length: 17.7 inches for optimal routing
• Terminal Type: Pin terminals for secure connections
• Connector Type: Plug-in style for easy installation
• Terminal Quantity: 4 terminals to support fuel pump wiring needs
• Terminal Gender: Female terminals compatible with standard male pins
• Jacket Material: Durable plastic for protection against wear and environmental factors

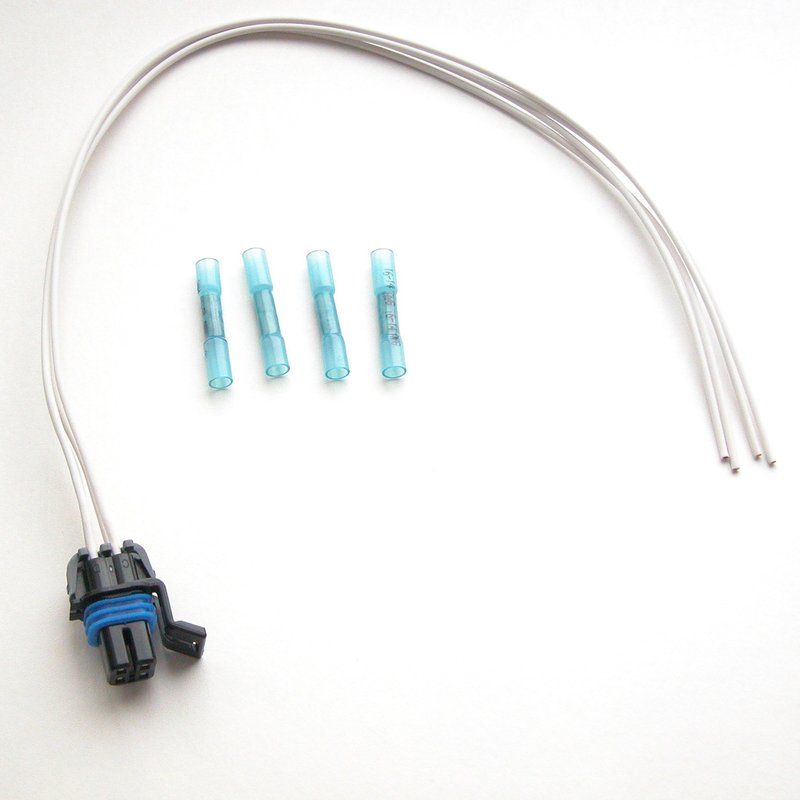

• Package Includes: Fuel pump wiring harness, four splices, and instruction sheet

Product Details and Specifications

The Delphi FA10004 fuel pump wiring harness is engineered as a standard replacement part, meeting OEM specifications for electrical connectivity in fuel delivery systems. Its 17.7-inch length allows for proper fitment and routing within the fuel tank assembly area. The harness features four female pin terminals housed in a plastic jacket, providing resistance to abrasion and environmental exposure. The plug-in connector type simplifies installation and ensures a reliable electrical connection to the fuel pump. This harness is compatible with a range of GM vehicles, including Buick Alero, Chevrolet Cavalier, Malibu, Monte Carlo, and Impala, Oldsmobile Intrigue and Regal, as well as Pontiac Grand Am, Grand Prix, Classic, and Sunfire models.

Compatible Vehicles and Applications

• Buick Alero
• Chevrolet Cavalier, Malibu, Monte Carlo, Impala
• Oldsmobile Intrigue, Regal
• Pontiac Grand Am, Grand Prix, Classic, Sunfire

This wiring harness is intended for use in fuel pump electrical connections, ensuring consistent power delivery and proper fuel system function.

Common Issues Addressed by This Harness

• Intermittent or no fuel pump operation due to wiring failure
• Corroded or damaged fuel pump connectors causing poor electrical contact
• Wiring harness wear or breakage from age or environmental exposure
• Faulty or loose connections leading to fuel delivery interruptions
• Replacement of OEM harnesses damaged during maintenance or repairs

Installation Notes and Tips

Installation of the Delphi FA10004 fuel pump wiring harness requires basic automotive electrical knowledge. Ensure the vehicle battery is disconnected before beginning work. Use the included splices and instruction sheet to make secure connections. Verify that the plug-in connector is fully seated to prevent electrical issues. Route the harness carefully to avoid contact with moving parts or heat sources. After installation, test the fuel pump operation before reassembling all components.

Quality Assurance and Warranty

Delphi manufactures the FA10004 wiring harness to meet industry standards for durability and electrical performance. This standard replacement part undergoes quality checks to ensure reliable operation in compatible Buick, Chevrolet, Oldsmobile, and Pontiac vehicles. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
