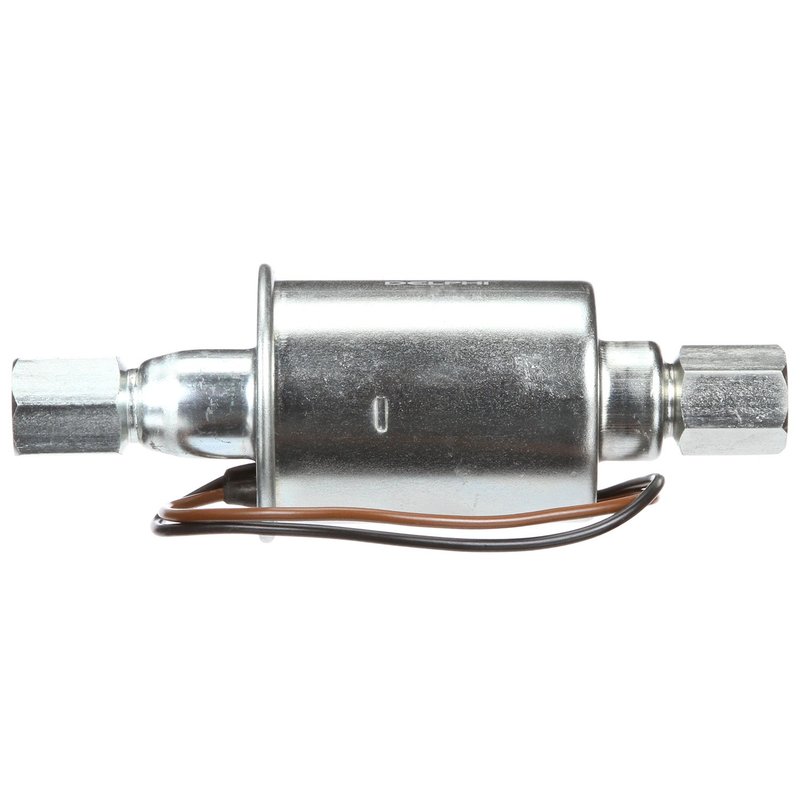

Delphi FD0040 Electric Fuel Pump - In-Line

Reliable Electric Fuel Pump for Lincoln Continental and Mark VII

The Delphi FD0040 electric fuel pump is designed specifically for diesel fuel systems in select Lincoln vehicles. Engineered to provide consistent fuel delivery, this external in-line pump supports optimal engine performance for the Lincoln Continental and Mark VII models.

• Compatible with Lincoln Continental and Mark VII diesel engines
• 12-volt electric fuel pump with 8 psi system pressure
• Inlet and outlet female threaded connections with 0.500 inch outside diameter
• Average flow rating of 32 liters per hour and 4 amps current draw
• Includes mounting bracket, hose clamps, nut, bolt, and rubber components

Technical Specifications and Features

The Delphi FD0040 fuel pump operates at 12 volts and is designed for external in-line installation. It features female threaded inlet and outlet ports, each with a 0.500 inch outside diameter, ensuring secure and leak-free connections. The pump delivers a maximum pressure of 12 psi with a system pressure rating of 8 psi, suitable for diesel fuel delivery requirements. With an average flow rating of 32 liters per hour and a current draw of 4 amps, this pump balances efficient fuel supply with electrical system demands. The terminal type uses lead wires with two terminals for straightforward wiring integration.

Applications and Problem Resolution

This electric fuel pump is intended for use in diesel-powered Lincoln Continental and Mark VII vehicles. It addresses common fuel system issues such as:

• Inconsistent fuel pressure causing engine hesitation or stalling
• Fuel delivery interruptions due to worn or failing pumps
• Reduced engine performance from inadequate fuel flow
• Fuel leaks from damaged or incompatible pump connections
• Electrical faults related to pump current draw or wiring

Installation Notes and Tips

Installation of the Delphi FD0040 requires an external in-line mounting position compatible with the vehicle’s fuel system layout. The pump includes a bracket, hose clamps, and mounting hardware to facilitate secure attachment. Ensure the female threaded inlet and outlet ports match the existing fuel lines with 0.500 inch outside diameter fittings. Proper electrical connections should be made using the lead wire terminals, verifying polarity and secure contacts. Since the pump does not include a gasket or wiring harness, these components must be sourced separately if needed.

Quality Assurance and Warranty Information

Delphi manufactures the FD0040 as a standard replacement grade fuel pump, meeting OEM specifications for fit and function. The product undergoes quality control testing to ensure reliable operation under typical driving conditions. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as coverage may vary by region and distributor.
