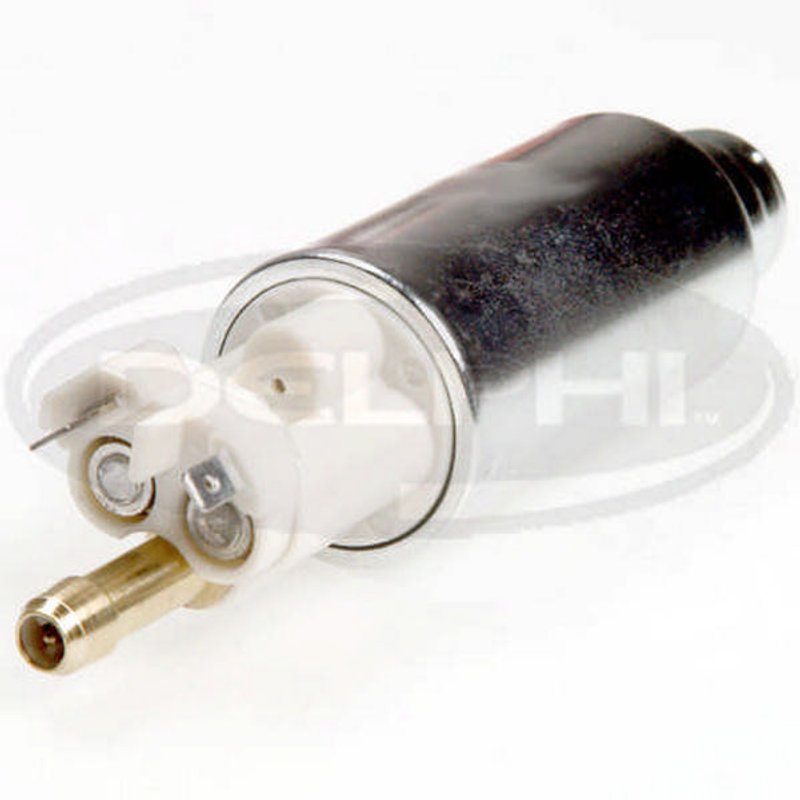

Delphi FE0108 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Jeep Cherokee and Wrangler

The Delphi FE0108 electric fuel pump is designed to provide consistent fuel delivery for select Jeep models, including the Cherokee, Comanche, Wagoneer, and Wrangler. Engineered for in-tank installation, this pump supports gasoline engines with a 12-volt electrical system.

• Outlet outside diameter: 0.313 inches
• Voltage: 12V compatible with standard automotive systems
• Fuel type: Gasoline
• Maximum pressure: 94 psi
• System pressure: 31 psi
• Terminal type: Male blade terminals, quantity 2
• Includes gasket or seal for secure installation
• In-tank design for direct fuel delivery
• Average current draw: 6 amps
• Average flow rating: 33 gallons per hour
• Package includes electric fuel pump, two blade terminal splices, and connector with two wires

Technical Overview of Delphi FE0108 Fuel Pump

The Delphi FE0108 is a standard replacement electric fuel pump engineered for in-tank mounting. It features a hose-type outlet and a strainer-type inlet to ensure clean fuel delivery. The pump operates at 12 volts and is designed to maintain a system pressure of 31 psi, with a maximum pressure rating of 94 psi. Its average flow rating of 33 gallons per hour supports efficient fuel supply for gasoline engines in Jeep Cherokee, Comanche, Wagoneer, and Wrangler models. The pump’s male blade terminals and included gasket facilitate straightforward electrical and mechanical connections.

Compatible Jeep Models and Applications

This electric fuel pump is compatible with the following Jeep vehicles:

• Jeep Cherokee
• Jeep Comanche
• Jeep Wagoneer
• Jeep Wrangler

It is designed specifically for gasoline fuel systems requiring an in-tank electric fuel pump with the specifications listed above.

Common Issues Addressed by Delphi FE0108

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure affecting engine performance
• Electrical connection failures due to worn terminals
• Fuel pump noise or irregular operation
• Leaks or poor sealing at the pump installation point

Installation Notes and Tips

When installing the Delphi FE0108 fuel pump, ensure the gasket or seal is properly seated to prevent fuel leaks. Verify that the male blade terminals are securely connected to the vehicle’s wiring harness. Since the pump is designed for in-tank use, take appropriate safety precautions when accessing the fuel tank. The package includes blade terminal splices and a connector with two wires to assist with installation, but a wiring harness is not included.

Quality Assurance and Warranty

Delphi manufactures the FE0108 fuel pump to meet standard replacement quality requirements. The pump undergoes testing to ensure consistent flow rate and pressure performance. It includes a gasket for proper sealing and is built to OEM specifications for the compatible Jeep models. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
