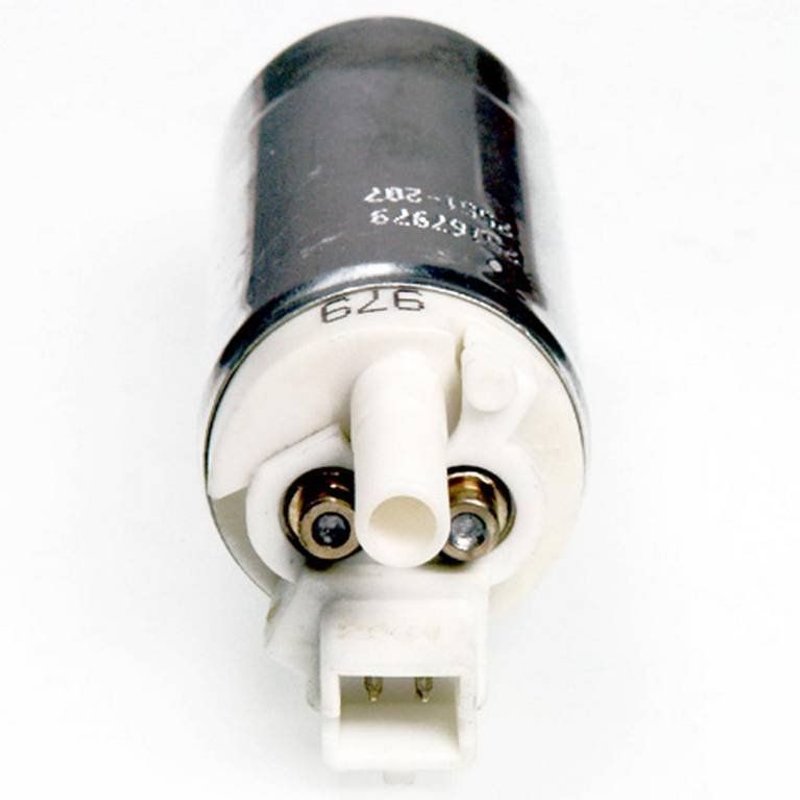

Delphi FE0112 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Chevrolet and GMC Vehicles

The Delphi FE0112 electric fuel pump is designed for in-tank installation, providing consistent fuel delivery for select Chevrolet and GMC models. Engineered to operate at 12 volts with a maximum pressure of 40 psi, this fuel pump supports gas fuel systems with precision and reliability.

• Compatible with Chevrolet C2500, C2500 Suburban, C3500, Lumina and GMC K2500, K2500 Suburban, K3500, G30, P30, P3500 models
• 12-volt electric fuel pump with a maximum pressure rating of 40 psi and system pressure of 30 psi
• In-tank design with a 0.313 inch outlet outside diameter and straight outlet type
• Includes electric fuel pump, two hose clamps, hose piece, and insulating sleeve for installation
• Features pin-type male terminals with two terminals for secure electrical connection
• Standard replacement grade with an average flow rating of 36 and average current draw of 5 amps
• Gasket or seal included to ensure proper sealing and prevent leaks

Product Details and Specifications

The Delphi FE0112 electric fuel pump is built for gas fuel systems requiring a reliable in-tank pump solution. Its 12-volt operation and maximum pressure of 40 psi make it suitable for maintaining consistent fuel flow and pressure in medium-duty trucks and vans. The pump’s outlet outside diameter measures 0.313 inches, with a straight outlet type designed for efficient fuel delivery. The unit includes a gasket or seal to ensure a tight fit and prevent fuel leaks. Electrical connections are made via two male pin terminals, providing a secure and stable connection. This pump does not include a wiring harness or strainer but features a strainer inlet type to protect the pump from debris.

Compatible Vehicles and Applications

This electric fuel pump is compatible with a range of Chevrolet and GMC vehicles, including:

• Chevrolet C2500, C2500 Suburban, C3500, Lumina
• GMC K2500, K2500 Suburban, K3500, G30, P30, P3500

It is designed as a direct replacement for in-tank fuel pumps in these models, ensuring proper fit and function.

Common Issues Addressed by the Delphi FE0112 Fuel Pump

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure affecting engine performance
• Electrical connection failures due to worn terminals
• Fuel leaks from damaged or missing seals
• Inconsistent fuel flow leading to poor acceleration

Installation Notes and Tips

Installation of the Delphi FE0112 fuel pump requires removal of the fuel tank for in-tank access. Ensure the electrical connections match the pin-type male terminals provided. Use the included gasket or seal to prevent leaks and secure the pump with the supplied hose clamps and hose piece. Verify that the fuel lines are properly connected to the straight outlet. Since the wiring harness is not included, reuse the existing harness or source a compatible one. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi manufactures the FE0112 electric fuel pump to meet standard replacement grade specifications, ensuring reliable operation within the specified parameters. The product includes a gasket or seal for proper installation integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as warranty terms may vary.
