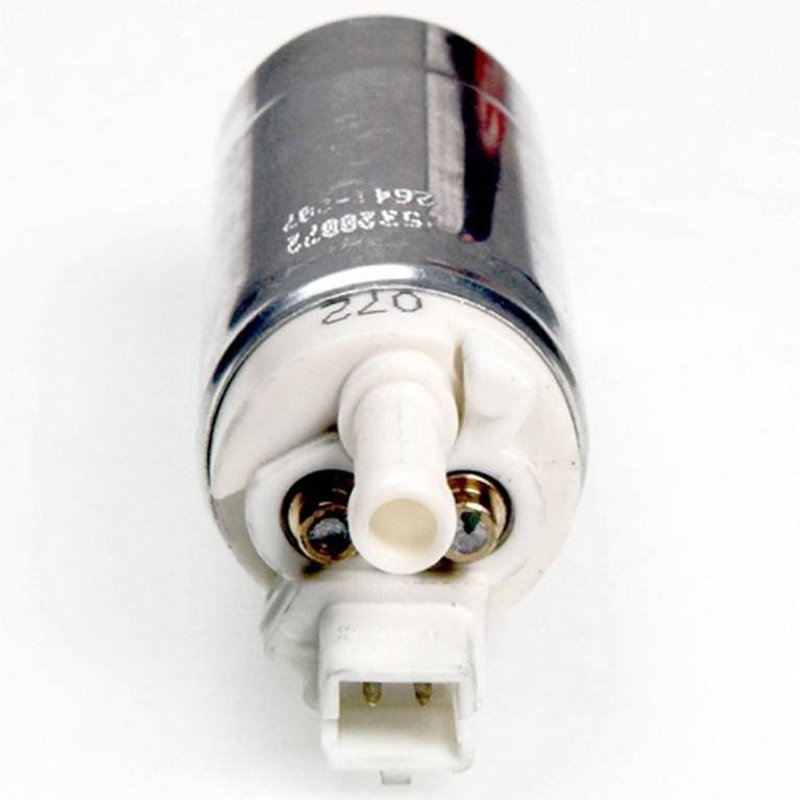

Delphi FE0116 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Buick, Cadillac, Chevrolet, and Oldsmobile

The Delphi FE0116 electric fuel pump is designed for in-tank installation, providing consistent fuel delivery for select Buick, Cadillac, Chevrolet, and Oldsmobile models. Engineered to meet standard replacement specifications, this fuel pump supports gas fuel systems with a 14-volt operation and a maximum pressure of 29 psi.

• Compatible with Buick Caprice, Cadillac Fleetwood, Chevrolet Roadmaster, and Oldsmobile Custom Cruiser
• In-tank electric fuel pump with 14 volts and 12 psi system pressure
• Outlet outside diameter of 0.313 inches with hose-type outlet
• Includes electric fuel pump, formed tube piece, two hose clips, and hose piece
• Blade-type male terminals with two terminal connections
• Standard replacement grade with gasket/seal included

Technical Specifications and Features

The Delphi FE0116 fuel pump operates at 14 volts and delivers an average flow rating of 18 gallons per hour, suitable for gas fuel systems. It features a blade terminal type with two male terminals for secure electrical connections. The pump’s outlet has a 0.313-inch outside diameter and uses a hose-type outlet, while the inlet is designed with a strainer type to help prevent debris from entering the fuel system. This in-tank pump draws an average current of 4 amps and maintains a system pressure of 12 psi, with a maximum pressure rating of 29 psi. The package includes the electric fuel pump, a formed tube piece, two hose clips, and a hose piece to facilitate installation.

Applications and Problem Solving

• Restores proper fuel delivery in Buick Caprice, Cadillac Fleetwood, Chevrolet Roadmaster, and Oldsmobile Custom Cruiser vehicles
• Replaces failing or noisy in-tank fuel pumps
• Addresses fuel pressure inconsistencies and engine performance issues
• Helps resolve starting difficulties related to fuel supply
• Prevents fuel system contamination with integrated strainer inlet design

Installation Notes and Tips

Installation of the Delphi FE0116 electric fuel pump requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the included blade-type male terminals and verify secure hose connections with the provided hose clips. The package includes a formed tube piece and hose piece to assist in proper fuel line attachment. It is recommended to inspect and replace any worn seals or gaskets during installation to maintain system integrity. Wiring harness is not included and may need to be sourced separately depending on vehicle configuration.

Quality Assurance and Warranty

Delphi manufactures the FE0116 fuel pump to meet standard replacement quality standards, ensuring reliable operation within specified parameters. The product includes a gasket or seal to support proper installation and fuel system sealing. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as coverage may vary by region and application.
