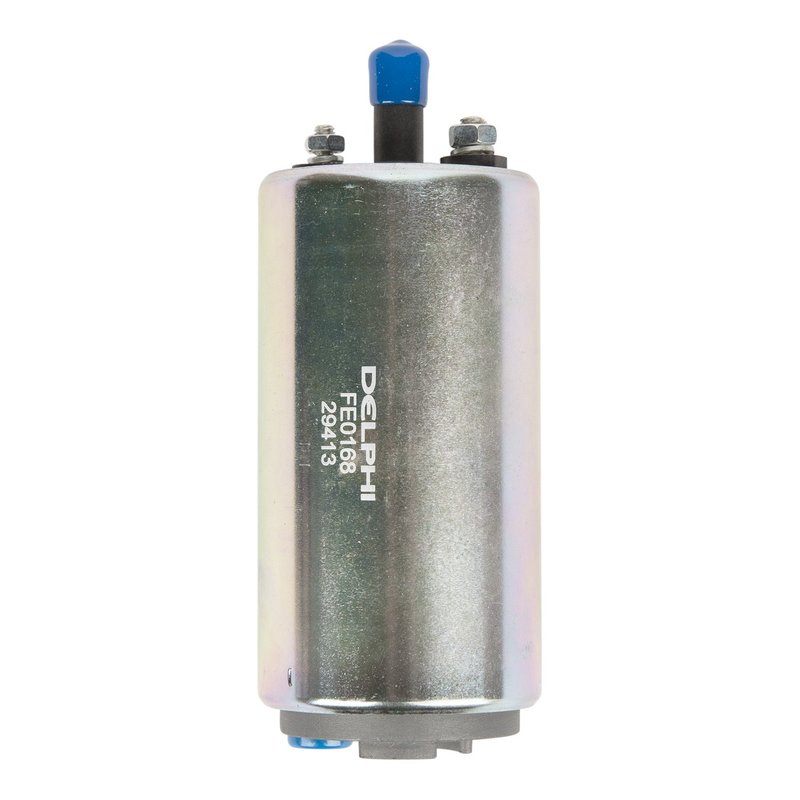

Delphi FE0168 Fuel Pump and Strainer Set

Delphi Fuel Pump and Strainer Set Overview

The Delphi FE0168 fuel pump and strainer set is designed for reliable fuel delivery in Nissan NX and Sentra models. This electric in-tank fuel pump operates at 12 volts and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Electric fuel pump with 12.0V operation
• Maximum pressure rating of 73 psi and system pressure of 36 psi
• Average flow rating of 37 liters per hour
• Includes external strainer and fuel pump sleeve, isolator, zipties, hose, and wire
• Threaded male terminals with two connections
• Outlet outside diameter of 0.313 inches with hose-type outlet
• Designed for gasoline fuel systems
• Standard replacement grade for Nissan NX and Sentra

Technical Details and Specifications

The Delphi FE0168 fuel pump and strainer set features an electric pump type designed for in-tank installation, ensuring efficient fuel delivery directly from the fuel tank. The pump supports gasoline fuel systems and delivers an average flow rating of 37 liters per hour, suitable for maintaining proper engine fuel supply. It operates at 12 volts with an average current draw of 6 amps, providing a balance between performance and electrical efficiency.

The pump's maximum pressure is rated at 73 psi, with a system pressure of 36 psi, ensuring consistent fuel pressure for smooth engine operation. The outlet has a 0.313-inch outside diameter and uses a hose-type outlet connection. The unit includes an external strainer to protect the fuel system from contaminants, and the inlet type is strainer-based to ensure clean fuel intake.

Compatible Nissan Models and Applications

This fuel pump and strainer set is compatible with Nissan NX and Sentra vehicles, making it a suitable replacement part for maintaining or restoring fuel system performance. The part number FE0168 is specifically designed to meet the fuel delivery requirements of these models, ensuring proper fit and function.

Common Issues Addressed by This Fuel Pump Set

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure leading to poor engine performance
• Fuel pump noise or failure due to worn components
• Contaminated fuel causing clogging or damage to the fuel system
• Electrical issues related to fuel pump terminals or wiring

Installation Notes and Tips

Installation of the Delphi FE0168 fuel pump and strainer set requires removal of the fuel tank for in-tank access. Ensure the vehicle's battery is disconnected before beginning work to prevent electrical hazards. The pump features threaded male terminals with two connections; verify proper wiring and secure connections during installation. Although the set includes a strainer, sleeve, isolator, zipties, hose, and wire, a gasket or seal is not included and may need to be sourced separately. Properly secure the hose outlet with the 0.313-inch diameter fitting to prevent leaks.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump and strainer set engineered to meet OEM specifications for Nissan NX and Sentra models. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed quality assurance to ensure durability and reliable performance in automotive fuel delivery systems.
