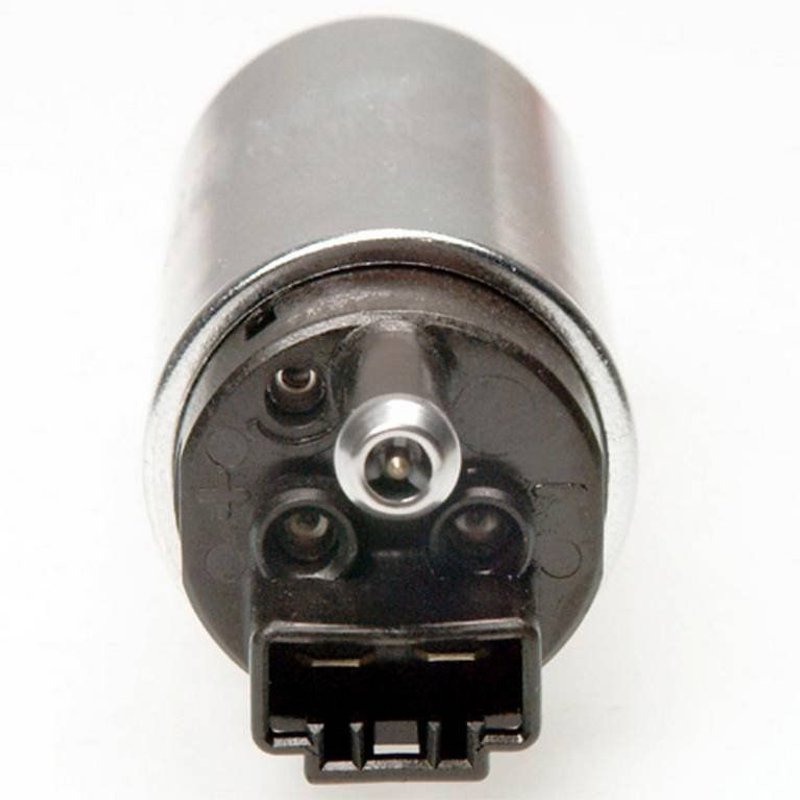

Delphi FE0200 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Jaguar Models

The Delphi FE0200 electric fuel pump is designed specifically for in-tank installation on select Jaguar vehicles. Engineered to deliver consistent fuel flow and pressure, this pump supports optimal engine performance for models such as the Jaguar XJ6, XJ12, XJR, XJRS, Vanden Plas, XJS, and XK8.

• 12-volt electric fuel pump with a maximum pressure of 80 psi
• Average system pressure of 45 psi for steady fuel delivery
• Average flow rating of 26 liters per hour to meet engine demands
• In-tank design with hose outlet type and 0.375 inch outlet diameter
• Blade-type male terminals with two connections for secure wiring
• Includes electric fuel pump, two hose clamps, hose piece, pall nut, and installation instructions

Technical Specifications and Features

The Delphi FE0200 electric fuel pump operates at 12 volts and is designed for gasoline fuel systems. Its in-tank configuration helps maintain fuel temperature and reduces vapor lock risk. The pump features a strainer inlet type and hose outlet type with a 0.375 inch outside diameter, ensuring compatibility with factory fuel lines. With an average current draw of 7 amps, it balances power consumption and performance. The pump terminals are blade type, male gender, with two terminals for reliable electrical connections. This standard replacement grade pump does not include a gasket or wiring harness, so these components should be sourced separately if needed.

Compatible Jaguar Models and Applications

This electric fuel pump is compatible with a range of Jaguar vehicles, including:

• Jaguar Vanden Plas
• Jaguar XJ6
• Jaguar XJ12
• Jaguar XJR
• Jaguar XJRS
• Jaguar XJS
• Jaguar XK8

Using the Delphi FE0200 ensures proper fuel delivery for these models, supporting smooth engine operation and drivability.

Common Issues Addressed by the Delphi FE0200 Fuel Pump

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Low fuel pressure leading to poor engine performance or hesitation
• Fuel pump noise or irregular operation indicating wear or failure
• Fuel system leaks due to damaged or worn pump components
• Replacement of original equipment fuel pump to maintain factory specifications

Installation Notes and Tips

Installation of the Delphi FE0200 electric fuel pump requires removal of the fuel tank for in-tank access. Ensure the fuel system is depressurized before beginning work. The pump includes two hose clamps, a hose piece, and a pall nut to assist with secure connections. Verify terminal connections match the blade-type male terminals on the pump. Since the gasket or wiring harness is not included, inspect and replace these components as necessary to ensure a proper seal and electrical connection. Follow the included instructions carefully for safe and correct installation.

Quality Assurance and Warranty Information

Delphi manufactures the FE0200 electric fuel pump to meet standard replacement grade specifications, ensuring reliable performance and durability. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For warranty information, consult the product documentation or contact Delphi directly.
